Tannoy VX 12HP-WH PowerDual Full Range Loudspeaker (White) - TA-VX12HP-WH
Tannoy VX 12HP-WH PowerDual Full Range Loudspeaker (White) - TA-VX12HP-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy VX 12HP-WH PowerDual Full Range Loudspeaker (White) - TA-VX1...
VX 12HP-WH
The VX 12HP-WH is built around a single 300 mm (12") PowerDual driver mounted within a compact, rugged plywood cabinet, and renowned for its exceptional performance and versatility. The latest high powerhandling version of TANNOY’s exclusive point source, constant directivity PowerDual technology ensures high power output with high sensitivity and exceptional efficiency. The point source driver technology allows this unique configuration to deliver exceptionally smooth beam-width characteristics resulting in an even coverage pattern aiding predictable system design. Symmetrical dispersion characteristics enhance speaker placement flexibility, allowing vertical or horizontal mounting of single or multi-cabinet arrays without any compromise in sound quality.
The VX 12HP-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12HP-WH can also be configured for bi-amp operation.
Features
-
Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
-
350 Watts continuous, 1,400 Watts peak power
-
12" PowerDual full range driver for point source phase coherence
-
Precise 75° dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor and side fill applications
-
Configurable for bi-amp operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt white paint
-

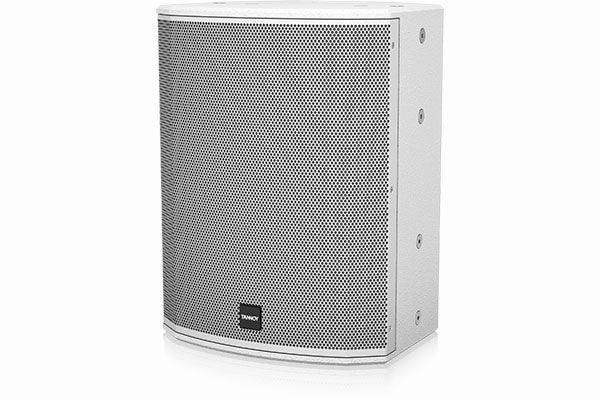

Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Optional horizontal and vertical mounting yokes (available separately)
-
Integrip handles ergonomically integrated into top and bottom of cabinet
-
Neutrik speakON* NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
System
| Frequency response |
80 Hz - 25 kHz ±3 dB |
| Nominal dispersion |
75° conical @ -6 dB point |
| Directivity factor (Q) |
10.1 |
| Directivity index (DI) |
10 |
Power handling (IEC)
| Passive |
350 W continuous, 1,400 W peak |
| Bi-amp |
LF: 350 W continuous, 1,400 W peak |
| Sensitivity |
97 dB (1 W @ 1 m) |
Maximum SPL
| Passive |
123 dB continuous, 129 dB peak |
| Bi-amp |
LF: 124 dB continuous, 130 dB peak |
| Impedance | |
| Passive |
8 Ω |
| Bi-amp |
8 Ω |
| Crossover Type |
Passive / Bi-amp switchable |
| Components |
1 x 12" (305 mm) constant directivityPowerDual |
Enclosure

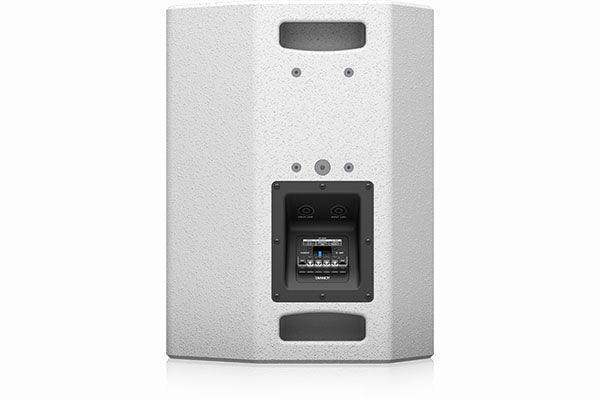

| Connectors |
2x Neutrik speakON* NL4 |
Wiring
| Passive |
Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp |
Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D |
487 x 371 x 361 mm |
| Net weight |
20 kg (44.0 lbs) |
| Construction |
15 mm (5/8") enclosure / 18 mm (3/4") front, |
| Finish |
Semi matt black paint (white optional) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M10 x 8 flying inserts |
