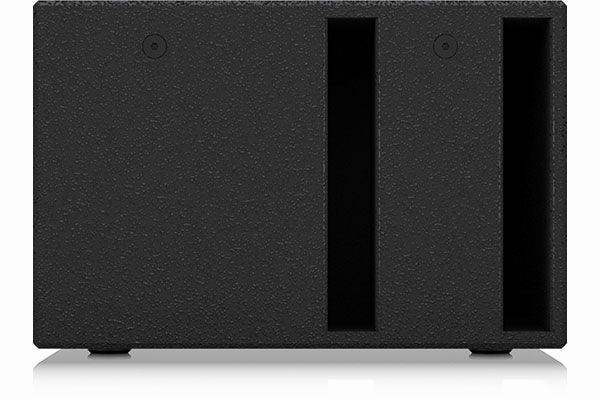

Tannoy VSX 10BP Compact Band-Pass Passive Subwoofer (Black) - TA-VSX10BP-BK
Tannoy VSX 10BP Compact Band-Pass Passive Subwoofer (Black) - TA-VSX10BP-BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy VSX 10BP Compact Band-Pass Passive Subwoofer (Black) - TA-VS...
Description
VSX 10BP
The VSX 10BP is a compact 10" 800-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 10BP’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.
Features
-
Compact band pass subwoofer for portable and installation applications
-
200 Watts continuous, 800 Watts peak power
-
10" bass driver for extended low frequency system response to below 40 Hz
-
Low distortion dual port design for maximum sound pressure levels
-
Ideal for background music playback in clubs, bars, theatres and AV applications
-
Internally braced plywood enclosure
-
Finished with a hard wearing semi matt black paint finish
-
Blanking plate for optional VTH pole mount
-
Integral M10 rigging points for ease of installation
-
Integrip handle ergonomically integrated into back of cabinet
-
Neutrik speakON* NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Performance
| System Type |
Subwoofer - Band pass |
| Frequency Response (-3 dB) (1) |
42 Hz - 110 Hz |
| Frequency Response (-10 dB) (1) |
36 Hz - 130 Hz |
| System Sensitivity (1 W @ 1 m) (2) |
93 dB (1 W = 2.83 V for 8 ohms) |
| Power Handling |
Average: 200 W |
| Recommended Amplifier Power |
400 W @ 8 Ohms |
| Rated Maximum SPL (2) |
Average: 116 dB |
| Nominal Impedance |
8 Ohms |
| Driver Complement |
250 mm (10") Bass driver |
| Recommended Crossover |
80 Hz - 110 Hz, 24 dB / octave |
| Recommended Crossover |
Recommended high-pass filter 40 Hz, 24 dB / octave |
DISTORTION
| 10% Full Power (28.3 V) |
2nd Harmonic 50 Hz: 2.24%, 100 Hz: 0.17%3rd Harmonic 50 Hz: 1.95%, 100 Hz: 0.47% |
| 10% Full Power (28.3 V) |
2nd Harmonic 50 Hz: 0.67%, 100 Hz: 0.42%3rd Harmonic 50 Hz: 0.57%, 100 Hz: 0.49% |
CONSTRUCTION
| Enclosure |
61 litres, 15 mm birch plywood, internally braced |

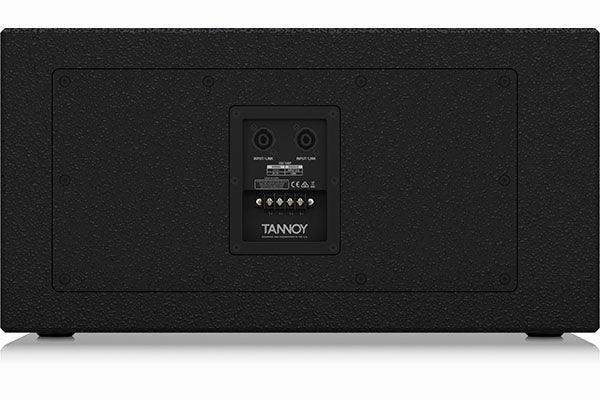

| Connectors |
2 x speakON NL4MP and Barrier strip |
| Fittings |
8 x M10 flying inserts (landscape mounting, portrait only if ground stacked) |
| Fittings |
1 x Integrip carrying handle |
| Dimensions (H x W x D) |
300 x 460 x 590 mm (11.8 x 18.1 x 23.2") |
| Packed Quantity |
1 |
| Net Weight (ea) |
18.5 kg (40.8 lbs) |
| Shipping Weight |
22 kg (48.5 lbs) |
