Tannoy QFLEX 32-WP Digitally Steerable Powered Column Array Loudspeaker (Weather Protected) - TA-QFLEX 32WP SYSTEM-WH
Tannoy QFLEX 32-WP Digitally Steerable Powered Column Array Loudspeaker (Weather Protected) - TA-QFLEX 32WP SYSTEM-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy QFLEX 32-WP Digitally Steerable Powered Column Array Loudspe...
Description
QFLEX 32
The QFLEX 32 is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.
Features
-
Digitally steerable column array speaker system provides extremely high intelligible speech and music reinforcement
-
Class leading ±70° steering control with 32 channels of integrated DSP and amplification
-
Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
-
Ideal for the most challenging acoustic environments due to extended frequency range steering control
-

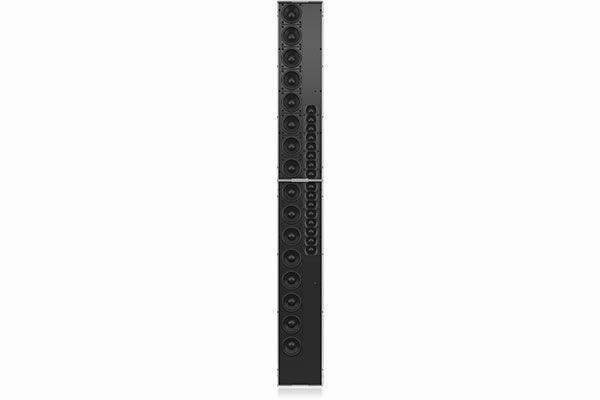

16 3" low frequency drivers and 16 1" high frequency drivers with individual 100 Watt Class D amplifiers and integrated cutting edge DSP
-
For installation applications with coverage distances up to 50 m (164')
-
High density array of transducers with proportional frequency spacing prevents aliasing artefacts
-
Fully integrated speaker system connects to other Tannoy VNET enabled products
-
Accessory options for constant voltage systems, Audinate Dante* digital audio networks, Ethernet control, and AES3 break in interface
-
AES3 input and link connections on RJ-45 connectors with internal sample rate conversion up to 96 kHz
-
Fully PA/VA compliant
-
Architecturally styled aluminium enclosure with a semi matt white painted finish
-
Corrosion resistant aluminium perforated grille
-
Included custom brackets allow quick and accurate installation
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Configuration
| 3" LF |
16 |
| 1" HF |
16 |
| No. of Amp Channels 100 W (RMS) @ 4 Ohms |
12 |
| Vertical Dispersion |
Variable between 10 - 100 degrees(Asymmetric & multiple beams may alsobe generated) |
| Frequency Range |
130 Hz - 20 kHz |
| Horizontal Dispersion |
120 degrees |
| Aiming Angle Limit |
± 70 degrees |
| LF Beam Control Limit |
400 Hz |
| Maximum SPL @ 100 ft (30 m)* |
100 dB |
| Column Height |
1387 mm (54.6") |
| Column Width |
171.5 mm (6.7") |
| Column Depth |
150 mm (5.9") |
| Typical Application Distance** |
50 m (165 ft.) |
| Sample Rate |
96 kHz |
| Audio Inputs |
Analogue & AES/EBU |
| Net Weight |
23.5 kg (51.8 lbs) |
Accessories
| Mains supply |
100-230 V~ 50/60 Hz |
| Max Input power/watts |
560 |
