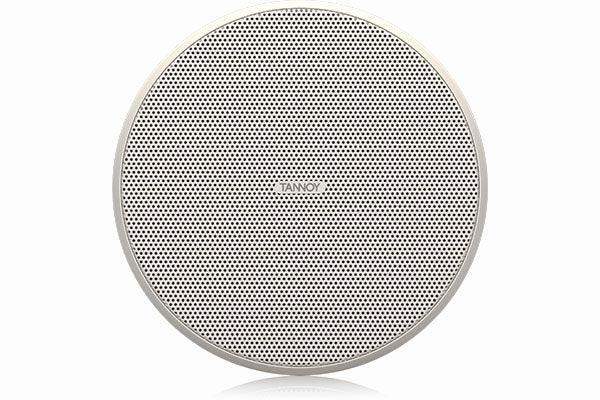

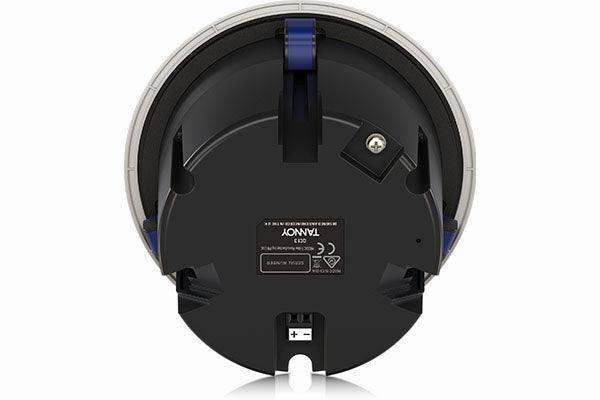

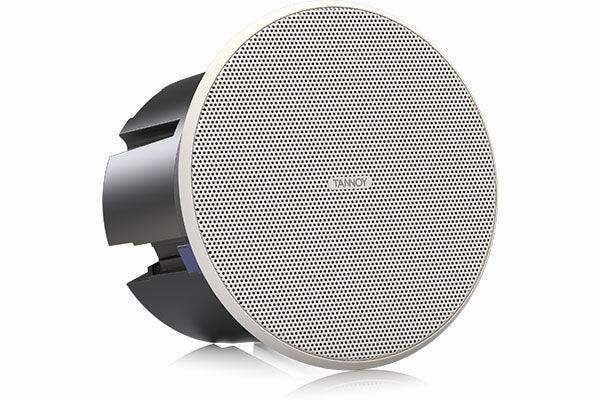

Tannoy QCI 3 High-Performance 3" Full Range Ceiling Loudspeaker (White) - TA-QCI 3-WH
Tannoy QCI 3 High-Performance 3" Full Range Ceiling Loudspeaker (White) - TA-QCI 3-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy QCI 3 High-Performance 3" Full Range Ceiling Loudspeake...
Description
Audio Evolution
For over 90 years Tannoy has been a leader in the pursuit of high-fidelity sound. The most demanding audio professionals around the world rely on Tannoy loudspeakers to create music and sound we love to hear and feel. From recording and mastering engineers to broadcasters and film score composers Tannoy loudspeakers are trusted for their proven reliability, true to source accuracy and ability to reproduce sound the way the artist intended. There really is no substitute for Tannoy. Trusted by music creatives around the world, installed in the world's best venues and locations, perfect for listening at home.
The QCI range is designed with the same high standards and attention to detail as our flagship professional and hi-fi loudspeakers. They deliver high fidelity sound that is extremely natural and detailed. They have the same sonic signature and can be easily mixed and matched to make a stereo, surround or multi-room audiophile system.
Features
-
High-performance loudspeaker for ceiling installation applications
-
3" full-range driver with high excursion rubber surround
-
Glass fibre cone for excellent sound quality and dynamic full range performance
-
40 Watts continuous, 160 Watts peak power
-
Compact, small footprint design for smaller spaces
-
Extremely thin bezel for discreet installation
-
Integrated single unit construction for easy installation
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grilles with dust protection
-
Removable grilles for custom painting
-
Self-aligning clamp mounting system
-
Removable Tannoy grille badge
-
Tannoy - Over 90 years of British sound heritage and innovation
Specifications
| Frequency response (±3 dB) |
110 Hz – 20 kHz |
| Frequency response (-10 dB) |
80 Hz – 20 kHz |
| Sensitivity (1 W @ 1m) |
84 dB |
| Directivity factor (Q) |
6.4 averaged 1 kHz to 10 kH |
| Directivity index (DI) |
8 averaged 1 kHz to 10 kHz |
Power handling (IEC)
| Average |
40 W |
| Programme |
80 W |
| Peak |
160 W |
| Recommended amplifier power |
120 W @ 8 Ω |
| Nominal Impedance (Lo Z) | |
| Rated maximum SPL (1 m, Lo Z) |
103 dB |
| Average |
100 dB |
| Peak |
106 dB |
| Crossover point |
NA |
Coverage angles
| 500 Hz |
180° horizontal, 180° vertical |
| 1 kHz |
180° horizontal, 180° vertical |
| 2 kHz |
135° horizontal, 135° vertical |
| 4 kHz |
66° horizontal, 66° vertical |
Transducers
| Low frequency diameter/ material/type |
85 mm (3") |
Physical
| Baffle |
Reflex loaded UL94 V-0 rated ABS |
| Grille |
Steel, with weather resistant coating |
| Clamping design |
Security toggle clamp |
| Connectors |
Phoenix Contact terminal block |
| Dimensions (HxWxD) |
154 x 154 x 105 mm (6.1 x 6.1 x 4.1") |
| Bezel dimensions |
Circular: φ145 mm (5.7") Square: 154 x 154 mm (6.1 x 6.1") |
| Mounting depth |
100 mm (4.0") |
| Hole cutout dimensions |
φ117 mm (4.6") |
| Net weight |
0.9 kg (1.98 lbs) |
| Packed quantity |
2 |
| Included accessories |
Square grille, square baffl e, circular grille, screw |
| Optional accessories |
PMK 3 |
