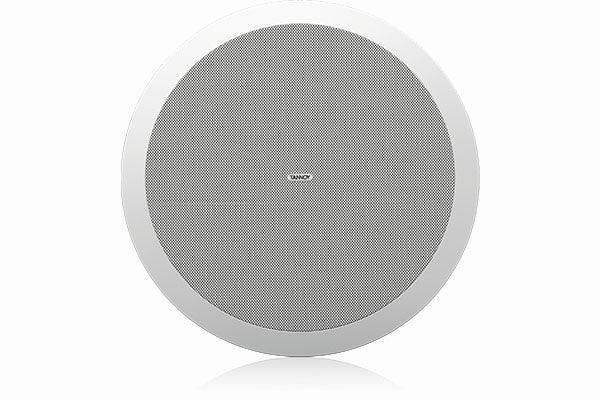

Tannoy CMS 603DC PI 6" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Pre-Install,Pair) - TA-CMS603DC-PI
Tannoy CMS 603DC PI 6" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Pre-Install,Pair) - TA-CMS603DC-PI is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy CMS 603DC PI 6" Full Range Ceiling Loudspeaker with Dua...
Description
(Sold as a pair)
CMS 3.0 CMS 603DC PI
The CMS 603DC PI is a full bandwidth 320-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6" Dual Concentric point source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 603DC PI delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
Features
-
Full range ceiling loudspeaker for installation applications
-
80 Watts continuous, 320 Watts peak power
-

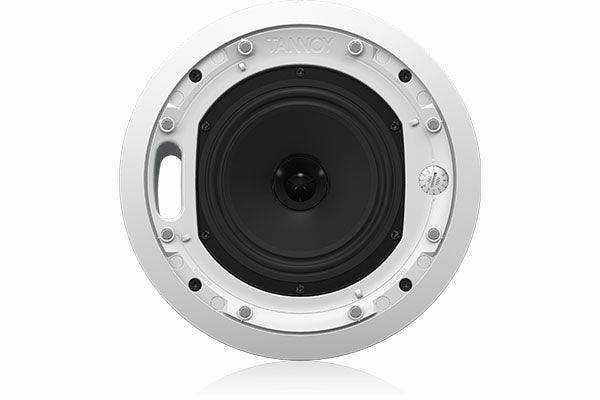

Next generation 6" Dual Concentric driver featuring Omnimagnet technology
-
Torus Ogive waveguide for improved high frequency response and directivity
-

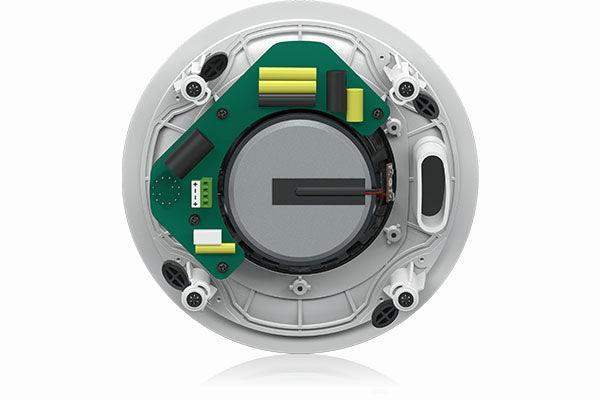

Pre-install version supplied without back can (available separately)
-
UL 1480 certified for general signalling systems
-
UL 2043 certified for air-handling spaces
-
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input when used with the optional CMS 603 PI BACKCAN
-
Low insertion loss 60 W line transformer with easily accessible tapping switch. Note that the transformer is mounted in optional CMS 603 PI BACKCAN
-
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-
Removable magnetic grille for custom painting
-
Optional ARCO designer grilles available for minimal architectural impact
-
Self-aligning 4 way clamp mounting system
-
Mounting C-ring and ceiling tile rails included
Specifications
Performance
| Frequency response (-3 dB) (1) BM Backcan |
75 Hz - 30 kHz |
| Frequency range (-10 dB) (1) BM Backcan |
50 Hz - 30 kHz |
| Frequency range (-10 dB) (1) PI Backcan |
46 Hz - 30 kHz |
| System sensitivity (1 W @ 1 m) (2) |
91 dB (1 W = 4 V for 16 Ohms) |
| Nominal coverage angle |
90 degrees conical |
| Coverage angle (1 kHz to 6 kHz) |
— |
| Directivity factor (Q) |
— |
| Directivity index (DI) |
— |
| Power handling (3) |
Transducers
| Dual concentric point source driver |
1 x 165 mm (6.5") Dual Concentric |
| Low frequency |
44 mm (1.75") voice coil, treated |
| High frequency |
25 mm (1.00") PEI dome |
Physical
| Enclosure | |
| Safety features |
Safety ring located at rear of enclosure |
| CMS 603ICT LS |
UL 1480 UUMW certifi cation for |
| Clamping design |
Security toggle clamp Min / Max |
| Backcan options | |
| Cable entry options |
Cable clamp & squeeze connector for |
| Conduit knockouts on PI Backcan |
3 Sets of horizontal positions |
| Connectors |
Removable locking connector |
| Compliance |
UL-1480, UL-2043, CE |
| Dimensions | |
| Net weight (ea) | |
| Included accessories |
C-Ring, tile-bridge kit, paint mask, |
| Optional accessories |
Plaster (mud) ring, Arco grille |
| Packed quantity |
2 |
