Soundtube SA502 Channel Class D Amplifier
Soundtube SA502 Channel Class D Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube SA502 Channel Class D Amplifier

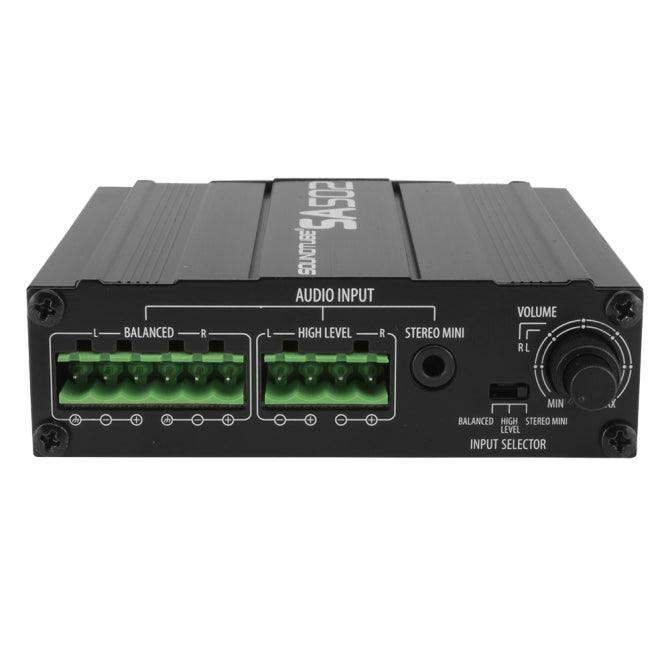

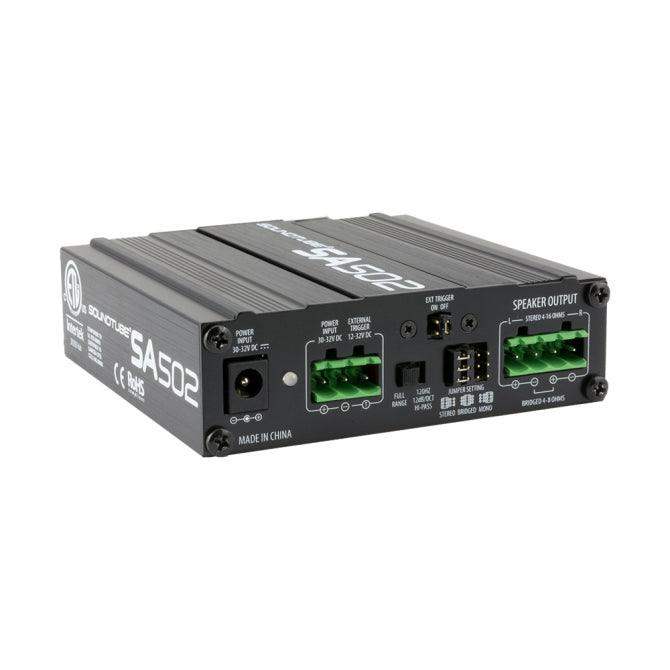

The SA502 amplifier has a 34 dB maximum gain with 2 x 50 watt output. The amp includes three operating modes: stereo, mono or bridged mono as well as three user selectable inputs: balanced stereo (Euroblock), stereo unbalanced mini jack, or high level Euroblock. The SA502 amp has an external 12-32 V trigger, signal detecting auto standby to conserve energy, and dual concentric gain controls for independent channel control. 20 Hz- 20 kHz frequency response. 120 Hz high pass switch. Small size- 1.2" x 3.9" x 4". Rugged aluminum housing.
Specs
| Color | Black |
|---|---|
| UPC | 644216202904 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 4 in / 101.6 mm |
| Height | 1.2 in / 30.48 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping Weight | 3.1 lbs / 1.41 kg |
| Carton Height | 3.5 in / 88.9 mm |
| Carton Length | 10.5 in / 266.7 mm |
| Carton Width | 9.5 in / 241.3 mm |
| Certifications | CE, RoHS, UL60065, ETL-C/US, FCC |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply, Stereo RCA Adapter |
| Optional Accessories | Rack Mount Adapter (AC-SA502-RMA)|Power Supply (AC-PS3240)|UK Power Cord (AC-PSCORD-EU2)|EU Power Cord (AC-PSCORD-EU2)|China Power Cord (AC-PSCORD-CH2) |
| Input Impedance | 47K Ω Line Level, 600 Ω Balanced |
| Output Type | Euroblock |
| Power Requirements | 32 v DC 3.75A |
| Voltage Gain | 34 dB |
| Frequency Response (± 3 dB) | 20 Hz - 20 kHz |
