Soundtube SA202-RDT Class AB Mini Amplifier w/ 15 V Power Supply, 20W per channel
Soundtube SA202-RDT Class AB Mini Amplifier w/ 15 V Power Supply, 20W per channel is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube SA202-RDT Class AB Mini Amplifier w/ 15 V Power Supply, 2...

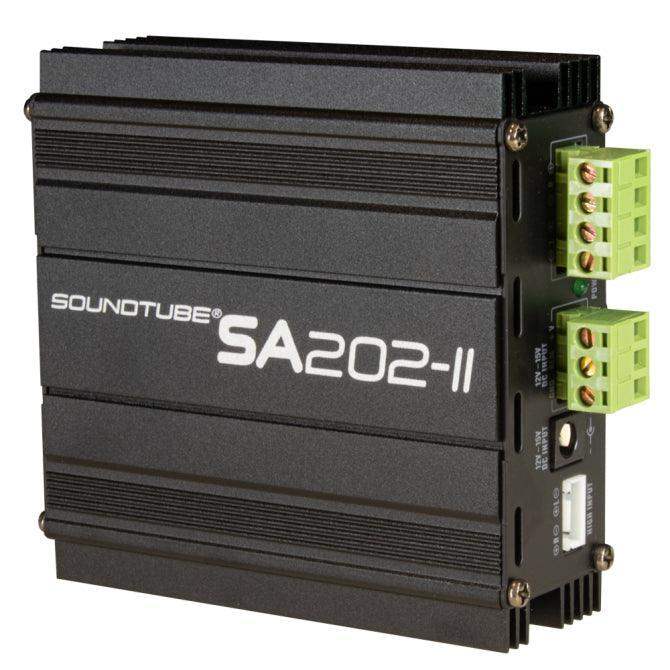

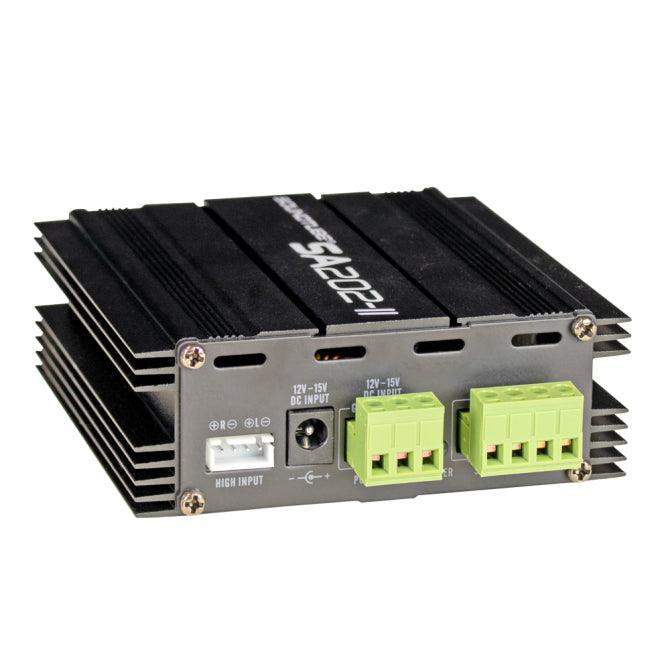

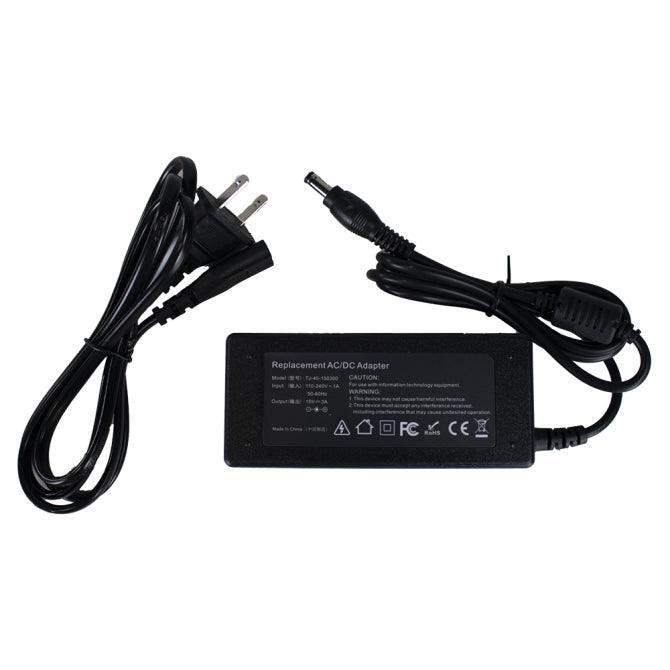

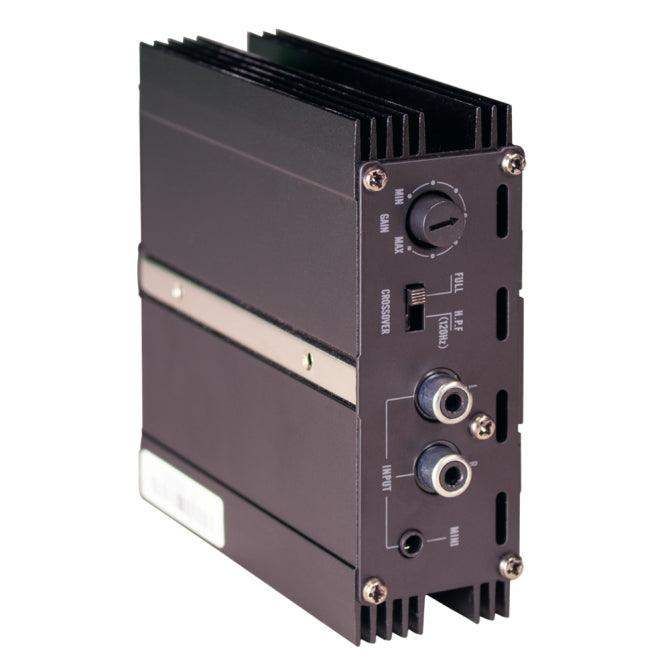

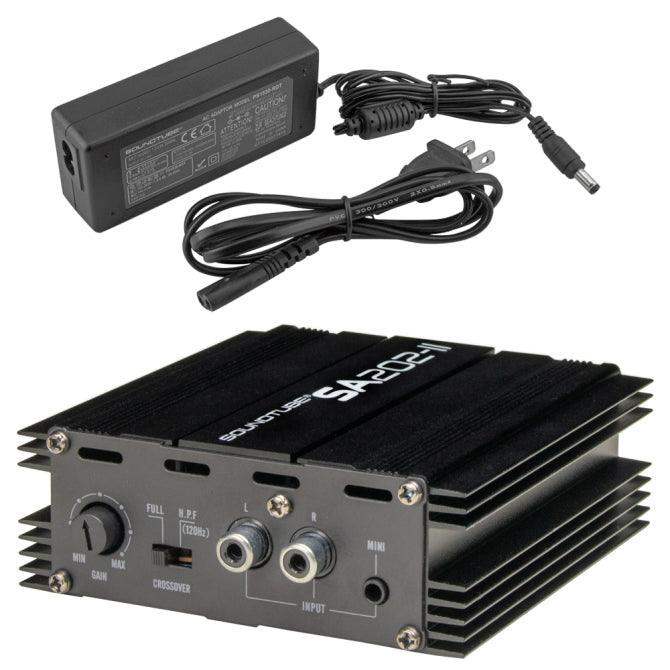

The SA202-II-RDT amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Signal to noise ration is 92dB (100Hz, 12dB/octave, 4 Ohm, A-Weighted). Inputs: Stereo mini unbalanced, high level, RCA stereo, 12V trigger. Mounting hardware included and adapts to pole, surface or security attachment installations. Includes a 15-volt, 3-amp power supply.
Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo
Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)
Specs
| Color | Black |
|---|---|
| UPC | 644216202805 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 4.86 in / 123.44 mm |
| Height | 1.43 in / 36.2 mm |
| Width/Diameter | 3.98 in / 101.09 mm |
| Shipping Weight | 1.55 lbs / 0.7 kg |
| Carton Height | 1.75 in / 44.45 mm |
| Carton Length | 5.75 in / 146.05 mm |
| Carton Width | 4.5 in / 114.3 mm |
| Certifications | CE, RoHS |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Pole/Surface Mount Adapter, Power Supply |
| Optional Accessories | Rack Mount Adapter (AC-SA202-RMA)|Power Supply (PS1530-RDT)|UK Power Cord (AC-PSCORD-UK)|EU Power Cord (AC-PSCORD-EU)|China Power Cord (AC-PSCORD-CHINA) |
| Input Impedance | 6K Ω |
| Output Type | Euroblock |
| Voltage Gain | 35 dB |
| Frequency Response (± 3 dB) | 20 Hz - 20 kHz (+/- 0.1 dB) |
