Soundtube RS82-EZ 8" Hanging Speaker
Soundtube RS82-EZ 8" Hanging Speaker - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube RS82-EZ 8" Hanging Speaker

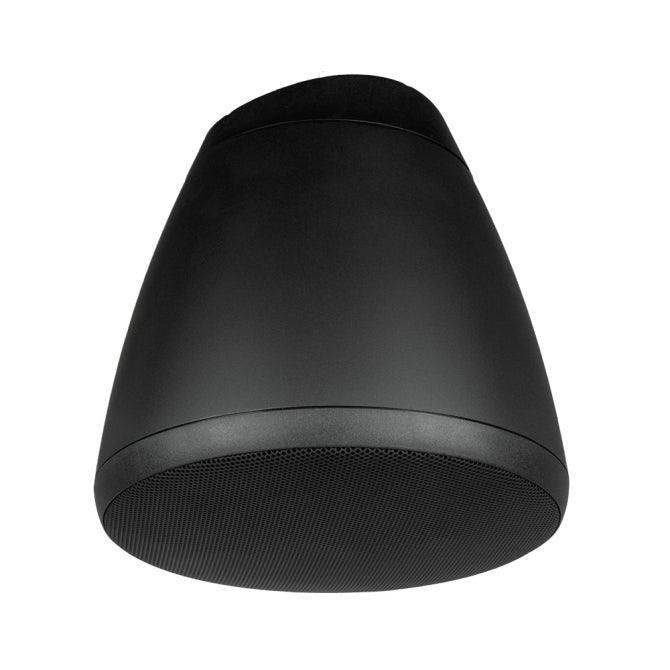

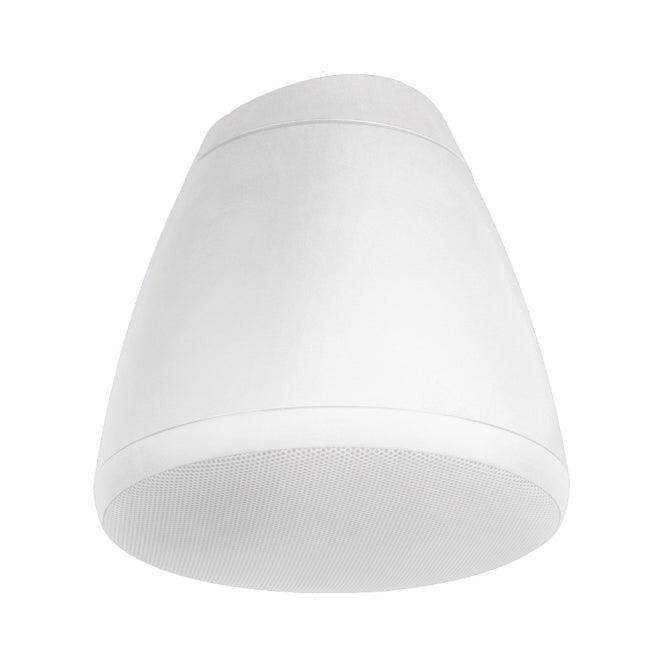

The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | RS-EZ Economical Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 15.15 lbs / 6.87 kg |
| Carton Height | 15.75 in / 400.05 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 14.5 in / 368.3 mm |
| Certifications | CE, RoHS, UL1480A |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |

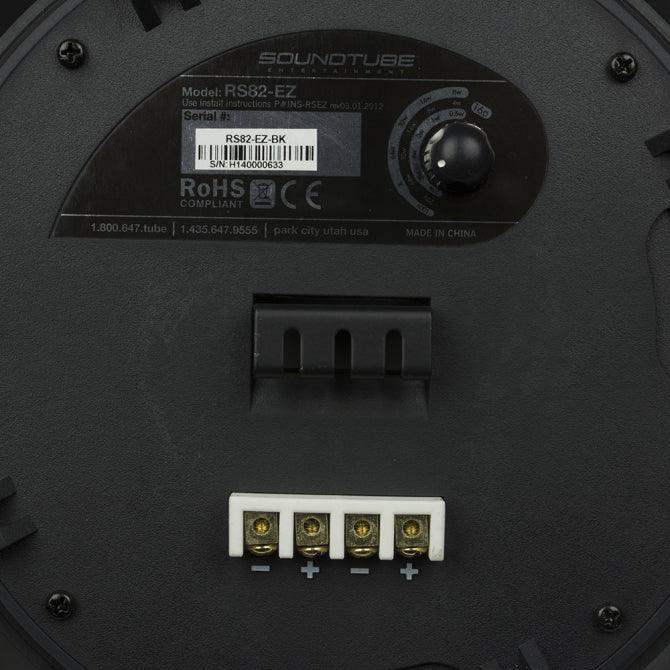

| Source Inputs | 4 Pin Ceramic Terminal |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7 and 6.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7db and 7.8dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128 W |
| Minimum Impedance (Ω Ohms) | 16 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 16 Ω |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
