Soundtube IW500B-WH 5.25" Coax, BroadBeam Tweeter, In-Wall, White w/steel back
Soundtube IW500B-WH 5.25" Coax, BroadBeam Tweeter, In-Wall, White w/steel back is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube IW500B-WH 5.25" Coax, BroadBeam Tweeter, In-Wall, Wh...

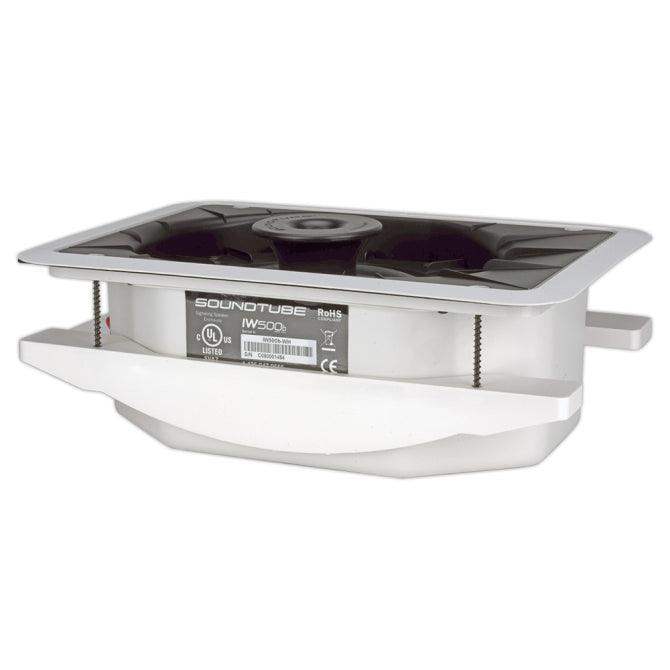

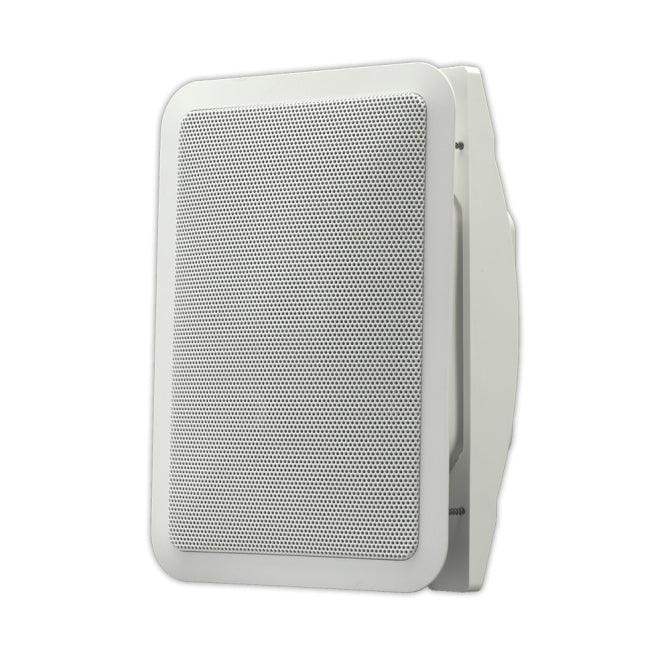

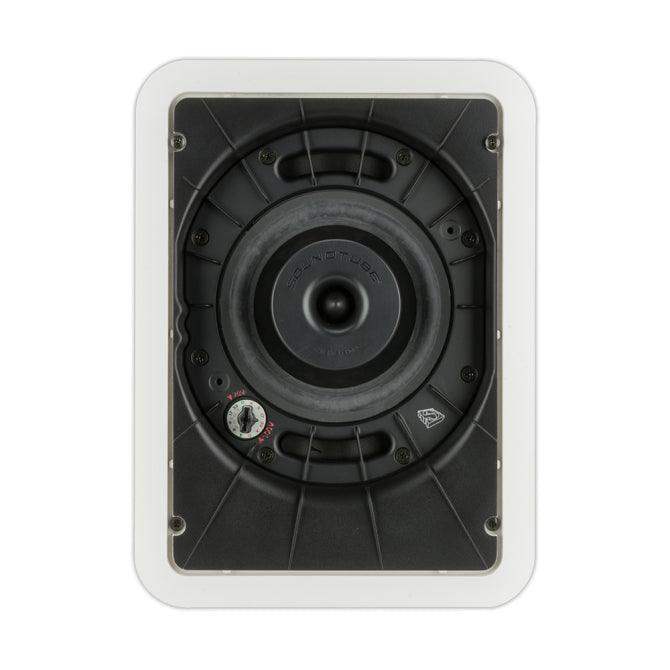

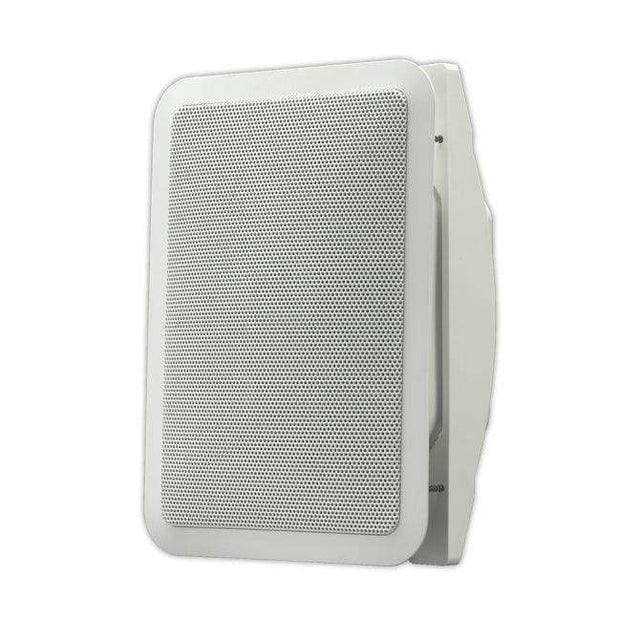

The IW500b has a 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to an aluminum motorboard. The speaker is a coaxial, in-wall loudspeaker that delivers effective low-end response (69 Hz, -10 dB) and optimal off-axis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam® waveguide tweeter system delivers consistant high performance audio across the operating bandwidth. The IW500b speaker design incorporates a low profile grille and six-position tap switch with transformer bypass position. Mounting hardware is included and features a fast and secure optimally engineered constant-tension mounting system and an integrated backcan for maximun efficency and applications where UL approval is required. Mounting hardware, paint mask, hole template and conduit connector are included.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | IW In-Wall Series |
| Height | 11.84 in / 300.7 mm |
| Width/Diameter | 8.64 in / 219.5 mm |
| Shipping Weight | 10.05 lbs / 4.56 kg |
| Carton Height | 7.5 in / 190.5 mm |
| Carton Length | 14.25 in / 361.95 mm |
| Carton Width | 11 in / 279.4 mm |
| Certifications | CE |
| Enclosure Properties | ABS, Infinite Baffle |
| Included Accessories | Grille, Hole Template, Paint Mask |
| Optional Accessories | Pre-Construction Bracket (AC-IW5-PCB) |
| Source Inputs | Metal Push Binding Posts |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB |
| Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 71 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 75w |
| Max. Program Power | 150 W |
| Minimum Impedance (Ω Ohms) | 5.1 Ω |
| Mounting Depth | 3.9 in / 99.1 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1" Convex Titanium w/ BroadBeam® Waveguide |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 88 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Tap Selector | Rotary Switch |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
