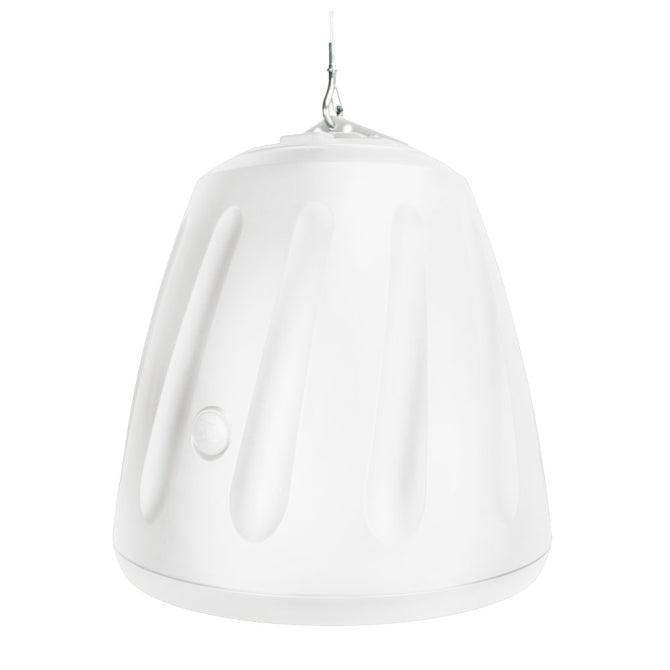

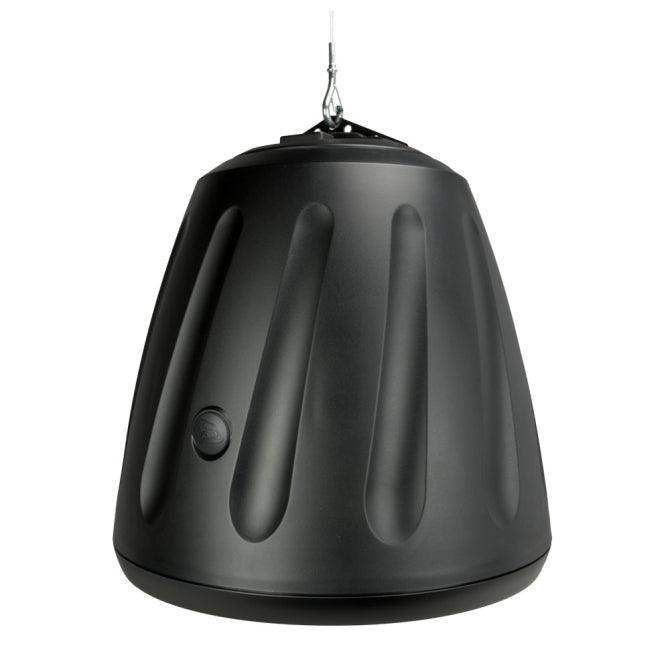

Soundtube HP129A 12" Hanging Speaker with Transformer
Patented BroadBeam Ring™ waveguide technology providing smooth response and maximum SPL across the audio spectrum. One 12 inch (305 mm) treated fiber cone with a treated cloth surround and one 1.375 inch (35 mm) Mylar compression driver with waveguide. Ported enclosure for added bass response (down to 73 Hz, 10 dB). High-SPL, high-efficiency system for the sound reinforcement and PA markets. Easy-access, five-position tap switch for 25/70.7/100-volt applications with transformer bypass position. Reduced amplification costs and maximum efficiency (97 dB sensitivity), with 8-ohm impedance. UL 1480 (UEAY) and 2239 (hanging cable) approved. Included accessories: hanging hardware, Euroblock connector, terminal weather boot.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 17.8 in / 452.1 mm |
| Width/Diameter | 18 in / 457.2 mm |
| Shipping Weight | 40.15 lbs / 18.21 kg |
| Carton Height | 22.25 in / 565.15 mm |
| Carton Length | 21 in / 533.4 mm |
| Carton Width | 21 in / 533.4 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1700 cu in / 27858.01 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-HP129-BK)|Black Surface Mount Bracket (AC-HP-SM129-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Kit (AC-HP-HD10)|20' Hanging Kit (AC-HP-HD20)|50' Hanging Kit (AC-HP-HD50)|Large Weather Resistant Black Terminal Boot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| Coverage Angle (±6dB @ 2kHz) | 90° |
| Crossover Frequency | 2.2 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.1 and 10.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.6dB and 10.0dB |
| Frequency Response (± 10 dB) | 73 Hz - 19 kHz |
| Frequency Response (± 3 dB) | 118 Hz - 16 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 2 in / 50.8 mm |
| Low Pass Crossover | 24dB per octave 4th order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (Ω Ohms) | 7 Ω |
| Network Type: High Pass | 24dB per octave 4th order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1.375" Mylar Compression Driver w/ Waveguide |
| Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
| Sensitivity dB @ 1W/1M | 97 dB |
| Sensitivity dB @ 2.83V/1M | 97 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
