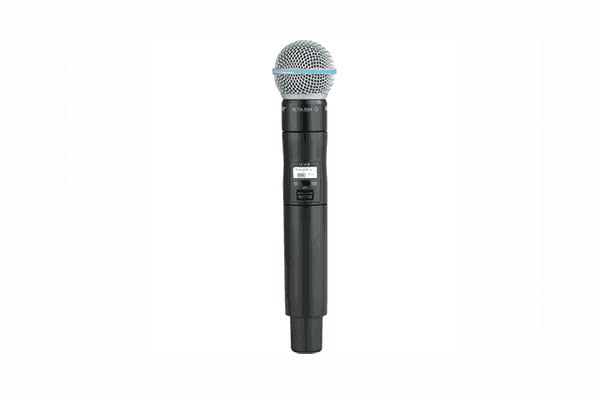

Shure ULXD2-B58 Digital Handheld Wireless Microphone Transmitter with Beta 58A Capsule - (X52: 902 to 928 MHz)
Shure ULXD2-B58 Digital Handheld Wireless Microphone Transmitter with Beta 58A Capsule - (X52: 902 to 928 MHz) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Shure ULXD2-B58 Digital Handheld Wireless Microphone Transmitter wi...
With a rugged, yet lightweight aluminum housing, the ULXD2/B58 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.
Clear, Accurate Audio with Interchangeable Capsule
- The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
- The Beta 58A features a neodymium magnet for high signal-to-noise output
- The hardened steel-mesh grille resists wear and abuse
- The interchangeable capsule design allows you to replace the Beta 58A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, KSM8, SM58, SM86, SM87A, Beta 87A, Beta 87C capsules, and more.
User-Friendly Features in a Rugged Housing
- The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
- Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
- The power button conveniently doubles as mute switch, while preserving RF lock.
- Frequency and power lockout functions prevent accidental or unauthorized changes during events.
- A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
- 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
- Operates for up to 11 hours on two AA batteries.
- Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
- External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
- The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.
- For ULX-D and QLX-D Digital Systems
- Beta 58A Dynamic Supercardioid Mic
- Interchangeable Capsule Design
- Automatic Gain Adjustment
- 0.25/10/20mW RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 12 Hr with SB900A Rechargeable Battery
Specification
Shure ULXD2 Specs
| Wireless Technology | Digital UHF |
| RF Frequency Band | X52: 902 to 928 MHz |
| RF Bandwidth | 26 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | < 2.9 ms |
| Encryption | AES 256 |
| Modulation | Proprietary |
| Transmitter Type | Handheld |
| RF Output Power | 0.25 / 10 / 20 mW (Switchable) |
| Audio I/O | None |
| Muting | Off/On Switch |
| Gain Range | 0 to 21 dB (3 dB Steps) |
| Sync Method | IR |
| Antenna | 1 x Internal Single-Band Helical |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable) |
| Approx. Battery Life | Med.: 11 Hours (Alkaline) Med.: 12 Hours (Lithium Shure SB900A) |
| Display & Indicators | 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync) |
| Housing | Aluminum |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 10.9 x 2" / 278 x 51 mm |
| Weight | 12.3 oz / 348 g |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Supercardioid |
| Frequency Range | 50 Hz to 16 kHz |
| Sensitivity | -51 dBV/Pa at 1 kHz |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 12.7 x 5 x 3.5" |
