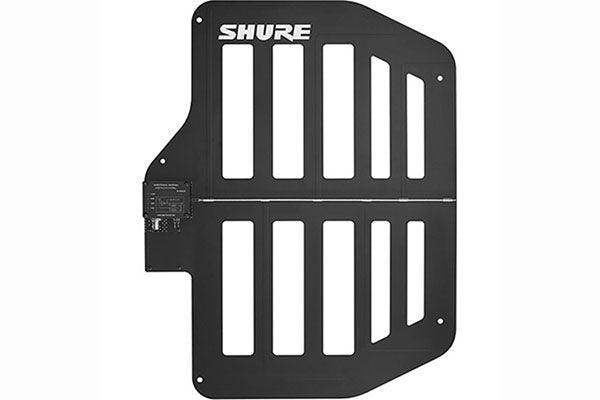

Shure UA874V Active Directional Antenna for VHF (174 to 216 MHz) - UA874V
Shure UA874V Active Directional Antenna for VHF (174 to 216 MHz) - UA874V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Shure UA874V Active Directional Antenna for VHF (174 to 216 MHz) - ...
- A low-noise signal amplifier that compensates for the insertion loss in a coaxial cable
- Compatible with Shure wireless receivers and antenna distribution systems that provide 10-15 VDC bias
- Integrated threaded adapter mounts easily to microphone stands
Features
- For Shure VHF Wireless Mic Systems
- Low-Noise Signal Amplifier
- Four-Position Gain Selector Switch
Specification
Shure UA874V Specs
| Connector Type | BNC, female |
| Impedance | 50 Ohms |
| RF Frequency Range | 174 to 216 MHz |
| Reception Pattern | 3 dB beam width 120° |
| Third Order Intercept Point (3 OIP) | >30 dBm |
| Antenna Gain | On Axis: 3 dBi |
| Signal Gain | ±1 dB, Switchable: +12 dB, +6 dB, 0 dB, −6 dB |
| RF Overload LED Threshold | -5 dBm (RF overload LED does not operate for passive gain settings) |
| Power Requirements | 10 to 15 VDC bias from coaxial connection, 75 mA |
| Operating Temperature Range | 0 to 145°F (-18 to 63°C) |
| Storage Temperature Range | -20 to 165°F (-29 to 74°C) |
| Dimensions | 22 x 17 x 2.7" (559 x 435 x 68 mm) |
| Weight | 27 oz (765 g) |
| Package Weight | 4.2 lb |
| Box Dimensions (LxWxH) | 23.5 x 17.5 x 3.2" |
