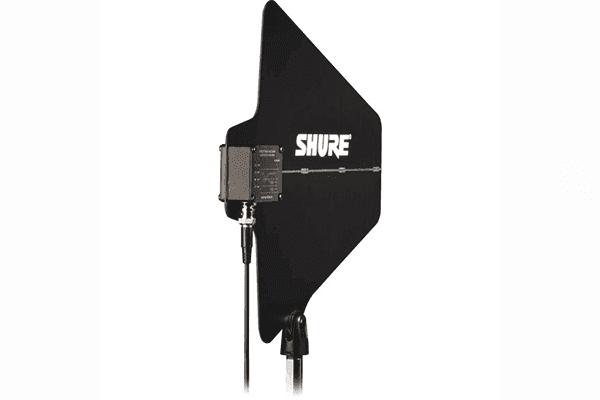

Shure UA874 Active Directional Antenna - UA874US
- Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
- Four-position gain selector switch
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
Features
- Directs a Cardioid Pattern Toward Target
- Four-Position Gain Selector Switch
- Low-Noise Signal Amplifier
- Makes Up for Coaxial Transmission Loss
- Integrated Threaded Adapter
- Mounts Easily to Microphone Stands
- 470 - 698 MHz
Specification
Shure UA874US Specs
| Connector Type | BNC (female) |
| Impedance | 50 ohms |
| Reception Pattern | 70° (3 dB beam width) |
| Overload Intercept Point | >30 dBm |
| Antenna Gain | 7.5 dBi (on axis) |
| Signal Gain | Switchable Active: +12 dB, +6 dB (±1 dB) Passive: 0 dB, -6 dB (±1 dB) |
| RF Overload LED Threshold | -5 dBm (RF overload LED does not operate for passive gain settings) |
| Power Requirements | 10 - 15 V DC bias from coaxial connection (75 mA) |
| Operating Temperature Range | 0 to 145°F (-18 to 63°C) |
| Storage Temperature Range | -20 to 165°F (-29 to 74°C) |
| Dimensions | 14.1 x 12.4 x 1.4" (359 x 316 x 36 mm) |
| Weight | 11.2 oz (317 g) |
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 18.3 x 14.6 x 3.7" |
