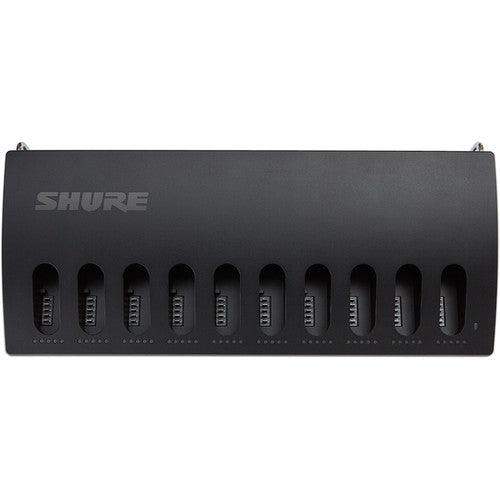

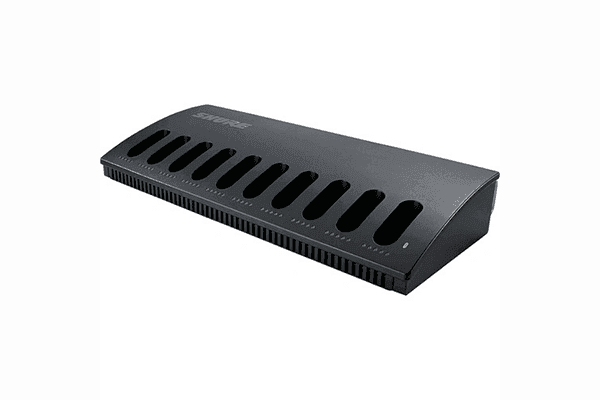

Shure MXCWNCS-US 10-Bay Networked Charging Station for SB930 Batteries (US)
Shure MXCWNCS-US 10-Bay Networked Charging Station for SB930 Batteries (US) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Shure MXCWNCS-US 10-Bay Networked Charging Station for SB930 Batter...
The MXCWNCS 10-Bay Networked Charging Station for SB930 Batteries (US) from Shure charges ten SB930 rechargeable batteries (sold separately) simultaneously to 100% in 4 hours and to 50% charge in 1.5 hours. It features LED indicators that display charge status and an RJ45 Ethernet connection to monitor battery levels remotely. The MXCWNCS Networked Charging Station includes a power cable and mounting hardware for wall or rack mounting.
Features
-
- Accommodates up to 10 SB930 rechargeable batteries
- 5-segment LEDs on the unit display charge status individually for every battery
- RJ-45 Ethernet connection enables remote monitoring of battery charge status in hours and minutes via Microflex Complete Wireless graphical user interface
- Charges 10 batteries to 50% charge in 1.5 hours, 100% charge in 4 hours
- Selectable storage mode partially discharges batteries for long-term storage or shipment
- Includes hardware for wall and rack mounting
- Includes IEC power cable
The MXCWNCS Networked Charging Station is designed to blend into conference room aesthetics, keeping SB930 rechargeable batteries for the MXCW640 Wireless Conference Unit at the ready. It accommodates up to 10 SB930 rechargeable batteries, and LED indicators display the charge status for each battery. The MXCWNCS charges 10 batteries to 50% charge in 1.5 hours, and to 100% charge in 4 hours.
The RJ-45 Ethernet connection enables remote monitoring of battery charge status via the Microflex Complete Wireless graphical user interface. A storage mode partially discharges batteries for long-term storage or shipment.
The MXCWNCS includes an IEC power cable and hardware for mounting to a wall or in a standard 19-inch equipment rack
Specification
| Battery Type | Shure SB930 Rechargeable Li-Ion |
| Battery Connector | Proprietary Blade |
| Charge Time | 50% = 1.5 Hours; 100% = 4 Hours |
| Charge Current | 3.6 A |
| Status Indicators | Off: Powered Off Green: Solid, Powered On; Flashing, Factory Default Reset in Progress Amber: Solid, Storage Mode Enabled; Flashing, Network Reset in Progress |
| Battery Charging | 1 LED: Green Flashing, <10%; Solid, >10%; Red Flashing, Invalid Battery / Recovery Failed / Charge Failed / Check Battery / Check Charger / Battery Read Error; Red Solid, Battery Cold / Battery Hot; Green + Amber (Alternate Flashing), In Recovery 2 LEDs: Green, >25% Charge 3 LEDs: >50% Charge 4 LEDs: >75% Charge 5 LEDs: >95% Charge |
| Network Interface | 10/100 Mb/s Ethernet |
| Network Addressing Capability | DHCP or Manual IP Address |
| Network Connection | RJ45 (Ethernet) |
| Cable Requirements | Cat 5e or Higher |
| Cable Length | 328' / 100 m Maximum |
| Material of Construction | Molded Plastic, Steel |
| Mounting Type | Tabletop, Rack, or Wall |
| Power Requirements | Input: 100 to 240 VAC, 50 to 60 Hz, 2 A Maximum Output: 4.2 VDC, 160 W Maximum |
| Power | IEC |
| Operating Temperature Range | -4 to 95°F / -20 to 35°C |
| Charging Temperature Range | 32 to 95°F / 0 to 35°C |
| Storage Temperature Range | -20 to 140°F / -29 to 60°C |
| Relative Humidity | <95% |
| Dimensions | 2.9 x 17.3 x 7.6" / 7.4 x 43.9 x 19.3 cm |
| Weight | 99.6 oz / 2.8 kg |
| Package Weight | 10.3 lb |
| Box Dimensions (LxWxH) | 19.6 x 9.4 x 5.1" |
