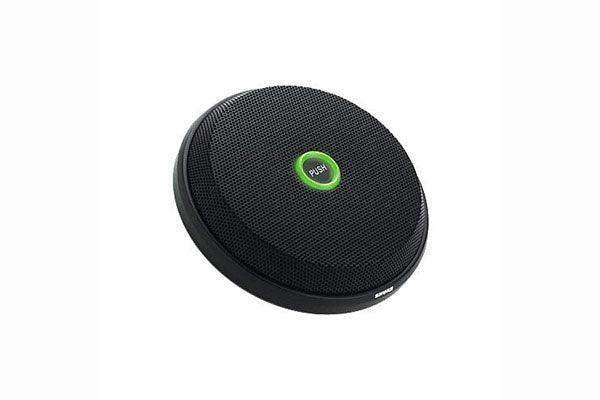

Shure MX396/C-TRI Tri-Element Boundary Microphone
Description
The MX396/C Boundary Microphone from Shure is capable of 180 or 360 degrees of coverage for excellent speech pick up between two people or groups seated within the range. The MX396/C is designed for capturing speeches in conference settings, education, telecommunication and more. The capsules feature cardioid polar patterns for maximum surface reflection and off-axis noise rejection. The mounting hardware allows for the attached (unterminated) cable to be side or bottom mounted. Also features are a Mute switch and Logic connections.
Features
- End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
- Individual audio output for each element
- Bi-color status indicator
- Programmable mute switch
- Logic input/output for remote LED and mute control
- CommShield® Technology
Specification
| Transducer | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 17 kHz |
| Signal-to-Noise Ratio | 66 dB |
| Equivalent Noise Level | 28 dB A-Weighted |
| Maximum SPL | 122 dB SPL |
| THD | 1% |
| Impedance | 170 Ohms |
| Sensitivity | 18 mV/Pa |
| Dynamic Range | 94 dB |
| Cable Length | 20' / 6.1 m |
| Operating Current Consumption | 12 mA |
| Operating Voltage | 48 V ± 4 V |
| Operating Temperature | 0 to 135°F / -17.78 to 57.22°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -20 to 165°F / -28 to 73.89°C |
| Diameter | 4.33" / 110 mm |
| Weight | 1.29 lb / 0.59 kg |
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 10.3 x 6.1 x 3.3" |
