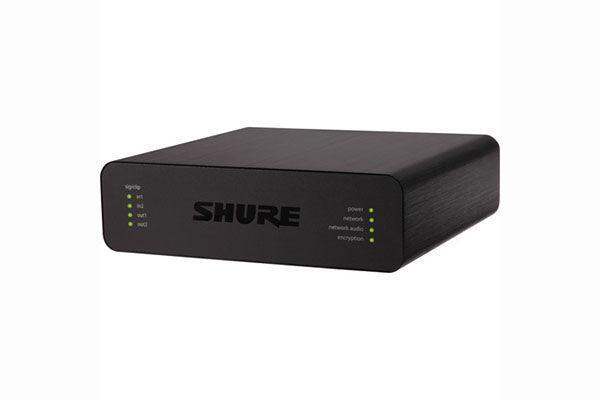

Shure ANI22-XLR Audio Network Interface (XLR Connectors)
Description
The ANI22 Audio Network Interface from Shure is designed to bring up to two line/mic signals onto or from a Dante network. It can be utilized for easy audio routing and convenient browser-based remote control. In addition, it is built with analog XLR connectors.
Feature
- Works with Microflex Advance and Microflex Wireless systems
- 2 input and 2 output analog audio connectors
- Converts up to 2 mic / line analog signals onto a Dante Network
- Converts up to 2 Dante digital audio signals to line/ mic analog signals
- Power over Ethernet (PoE) eliminates need for outboard power supply
- Compact form factor is easy to mount without equipment rack
Specification

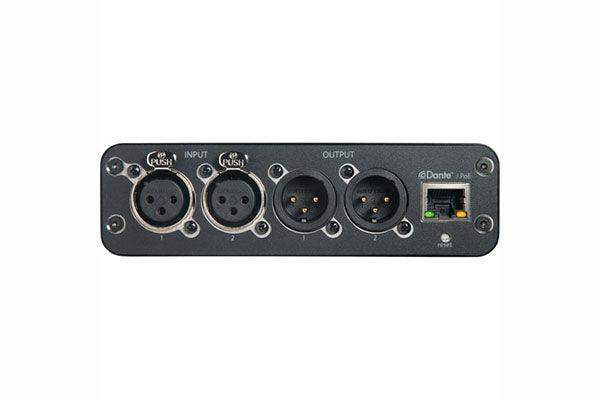

| Inputs (Analog) | 2 x 3-pin XLR connectors |
| Outputs (Analog) | 2 x 3-pin XLR connectors |
| Dante Connection | 1 x RJ45 Channel Count: 2 inputs, 2 outputs |
| Polarity | Non-inverting, any input to any output |
| Power Requirements | Power over Ethernet (PoE), Class 0 (PoE Plus compatible) |
| Power Consumption | 11 W maximum |
| Application Control | HTML5 |
| Operating Temperature Range | 20 to 104°F (-6.7 to 40°C) |
| Storage Temperature Range | 20 to 165°F (-29 to 74°C) |
| Thermal Dissipation | Maximum: 12.1 W (41.3 BTU/hr) Typical: 9.8 W (33.7 BTU/hr) |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Dante Audio Flows | Sampling Rate: 24-bit/48 kHz |
| Latency | Does not include Dante latency Analog to Dante: 0.35 ms Dante to Analog: 0.71 ms |
| Analog Gain Range | 51 dB (adjustable in 3 dB steps) |
| Dynamic Range | 113 dB, 20 Hz to 20 kHz, A-weighted, typical |
| Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms Analog Gain Setting = +0 dB, -93 dBV Analog Gain Setting = +27 dB, -119 dBV Analog Gain Settings = +51 dB, -130 dBV |
| Total Harmonic Distortion (THD) | <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain |
| Common Mode Rejection Ratio | >70 dB, 50 Ohms balanced source @ 1 kHz |
| Input Impedance | 5 kOhms |
| Output Impedance | 150 Ohms |
| Input Clipping Level | Analog Gain Setting = +0 dB, +20 dBV Analog Gain Setting = +27 dB, -7 dBV Analog Gain Setting = +51 dB, -31 dBV |
| Analog Output Levels | Selectable Line 0 dB Aux -20 dB Mic -46 dB |
| Digital Signal Processing (DSP) | Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range) System: Channel Summing |
| Networking | Cat 5e or higher (shielded cable recommended) |
| Dimensions | 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm) |
| Weight | 1.5 lb (672 g) |
