Renkus-Heinz TA62-RD 2-Way Loudspeaker 2 x 6.5" LF, 1" HF...

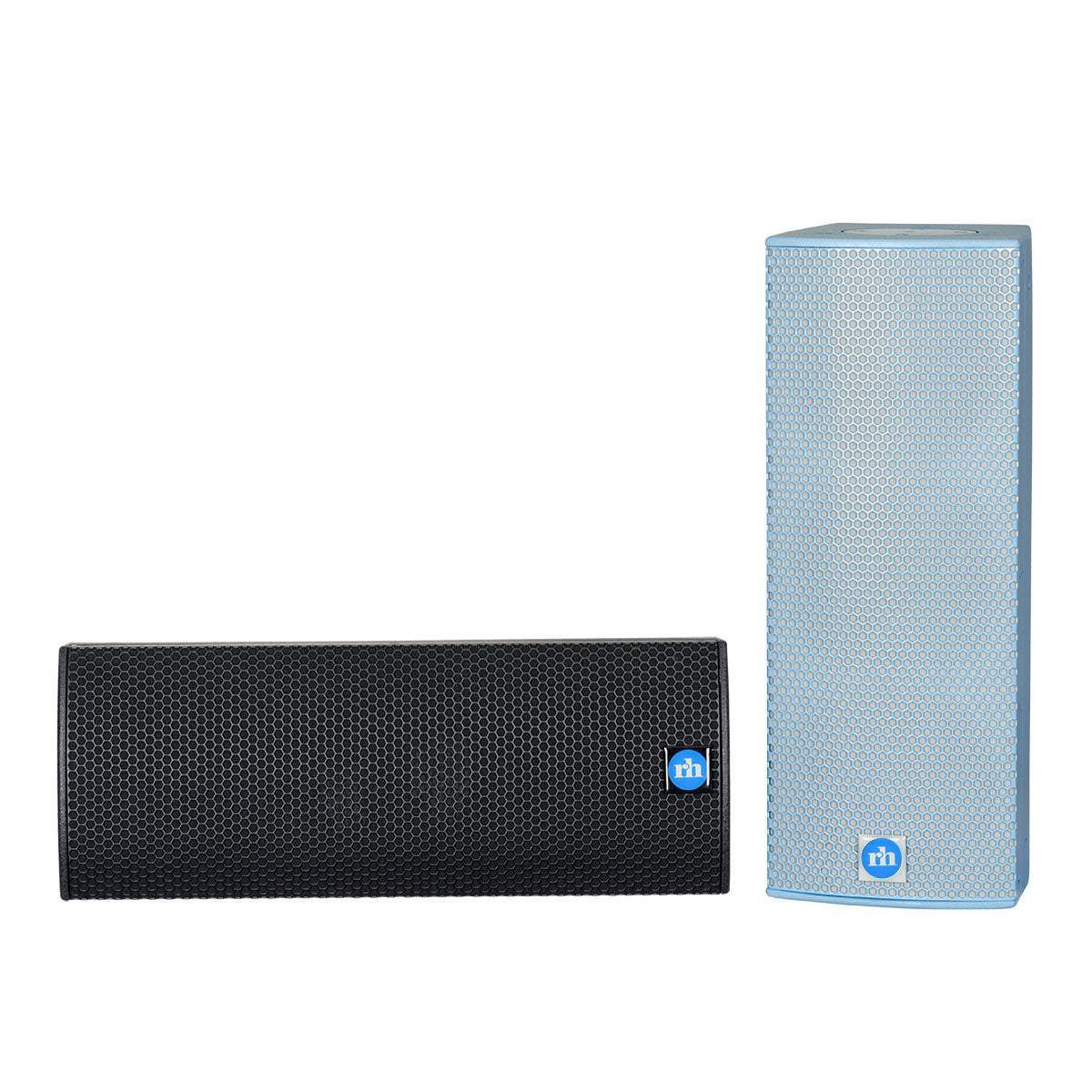

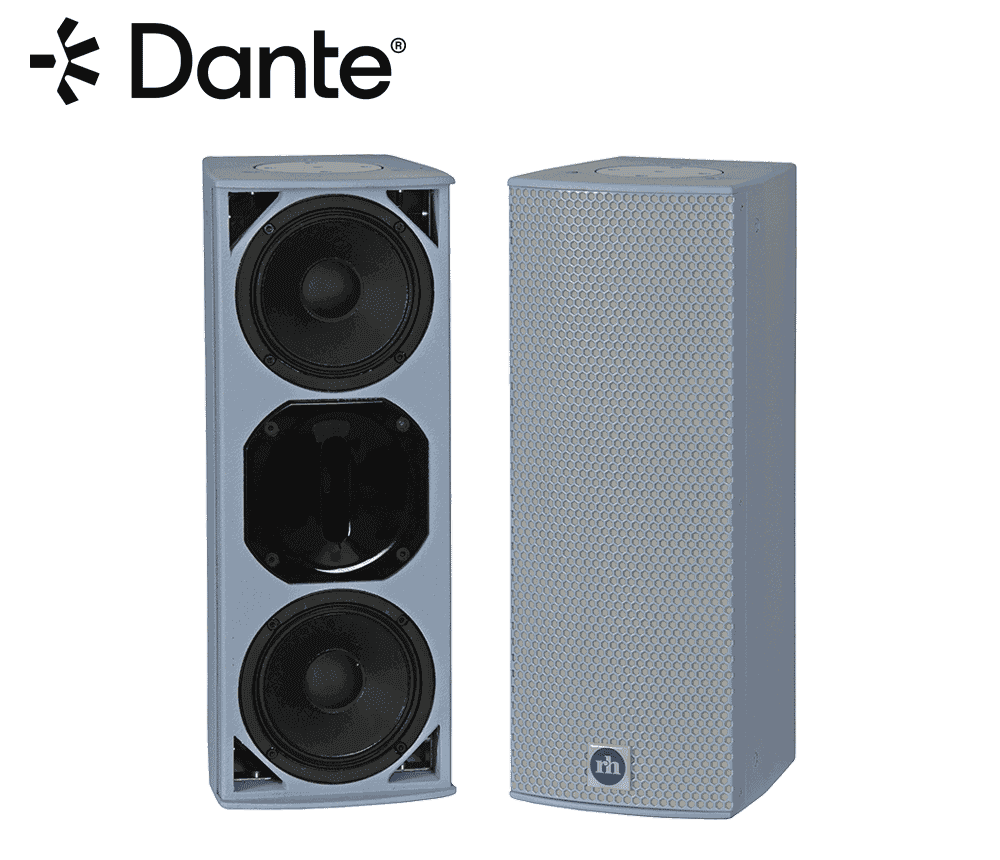

TX/TA62
Two-Way Complex Conic Loudspeaker System
T Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.
Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, T Series loudspeakers are the choice for unequalled value.
T62
The T62 features dual 6.5-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.
TA62 Powered Loudspeakers
Equipped with SA625 Series Amplification
TX62 Non-Powered Loudspeakers
For use with external amplification
Key Features
• Miniaturized Design
Outstanding, full-range 70 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
Complex Conic Horn provides superior pattern control with low distortion.
• Wide-Angle 150º x 60º Coverage
Complex Conic Horn provides smooth 150º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 6.5-inch Woofers
With carbon fiber cone easily handles 400 Watts of program power.
• Built-in Crossover
Eliminates need for a separate electronic crossover and bi-amplification.
Applications
• Virtually any application where size is a critical issue and outstanding sonic performance is required.
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc.
Specification
Technical Information |
||
| Sensitivity: | TX62 | 97 dB (1W/1m) |
| Max SPL: | TX62 | 126 dB, Peak |
| TA62-A TA62-RN TA62-RD |
124 dB, Peak | |
| Dispersion: | TX62 TA62-A TA62-RN TA62-RD |
150° H x 60° V Rotatable |
| Freq. Response: | TX62 TA62-A TA62-RN TA62-RD |
± 3 dB, 100 Hz to 20 kHz |
| HF Driver: | TX62 TA62-A TA62-RN TA62-RD |
1″ Titanium driver, model SSD1445-16; 20 W AES |
| LF Driver: | TX62 TA62-A TA62-RN TA62-RD |
Dual, 6.5″ woofer, model SSL6.5-18; 1″ VC; 100 W AES @ 16 Ohms |
| Power Handling: | TX62 | 200 W AES @ 8 Ohms 400 W Pgm @ 8 Ohms |
| TA62-A TA62-RN TA62-RD |
See SA625 Amplifier | |
| Connectors: | TX62 | Screw terminals & looping 4-pin Neutrik Speakon style connectors |
| TA62-A TA62-RN TA62-RD |
See SA625 Amplifier | |
| Enclosure: | TX62 TA62-A TA62-RN TA62-RD |
15mm Lite Ply, perforated metal grille |
| Hardware: | TX62 TA62-A TA62-RN TA62-RD |
12-point Universal Mounting Hardware (Metric M6 threads) M10 U-bracket attachment points |
| Finish: | TX62 TA62-A TA62-RN TA62-RD |
Black or White Paint, standard. Custom Color, Weather Resistant, optional. |
| Dimensions: | TX62 TA62-A TA62-RN TA62-RD |
21″ H x 7-7/8″ W x 9-3/8″ D 200 mm H x 533 mm W x 238 mm D |
| Weight: | TX62 | 26 lbs. / 11.8 kg, Net |
| TA62-A TA62-RN TA62-RD |
25 lbs. / 11.3 kg, Net | |
SA625 Amplifier Specifications |
||
| Audio Connectors: | TA62-A | 2 x XLR-3, In & Loop-out, Analog |
| TA62-RN | 2 x XLR-3, In & Loop-out, Analog & AES | |
| TA62-RD | 2 x XLR-3, In & Loop-out, Analog and AES 2 x RJ45 Dante Primary & Secondary Ethernet Delete CA62-RD |
|
| Network Connections: | TA62-RN | 2 x RJ45, Looping Ethernet/RHAON |
| TA62-RD | 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.) | |
| Maximum Input Level: | TA62-A | +22 dBu, Analog |
| TA62-RN TA62-RD |
+22 dBu, Analog, 0 dBFS digital | |
| User DSP: | TA62-RN TA62-RD |
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms. |
| Software: | TA62-RN TA62-RD |
RHAON II |
| Latency: | TA62-A TA62-RN |
6.25 ms |
| TA62-RD | 6.25 ms + Dante transport latency | |
| Power Output: | TA62-A TA62-RN TA62-RD |
LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers. |
| Mains Voltage: | TA62-A TA62-RN TA62-RD |
100-240 volts, 50/60 Hz auto-switching |
| Power Consumption: | TA62-A TA62-RN TA62-RD |
Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting) |
| Power Connector: | TA62-A TA62-RN TA62-RD |
Neutrik powerCON TRUE-1 |
| Temprature Limits: | TA62-A TA62-RN TA62-RD |
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C. |
