QSC Attero Tech unDX2IO+ Dante/AES67 network audio wallplate– 2 in (XLR) x 2 in (Phoenix) x 2 out (XLR)
QSC Attero Tech unDX2IO+ Dante/AES67 network audio wallplate– 2 in (XLR) x 2 in (Phoenix) x 2 out (XLR) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
QSC Attero Tech unDX2IO+ Dante/AES67 network audio wallplate– 2 in ...

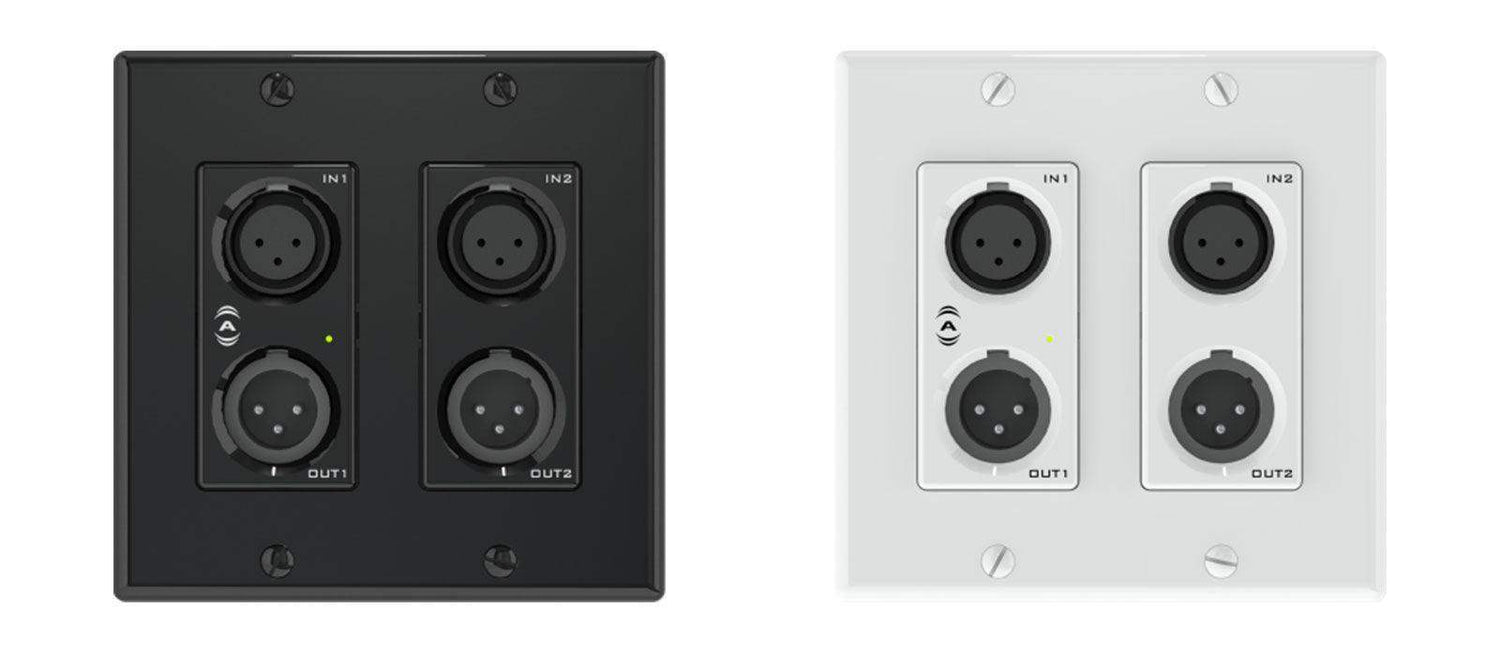

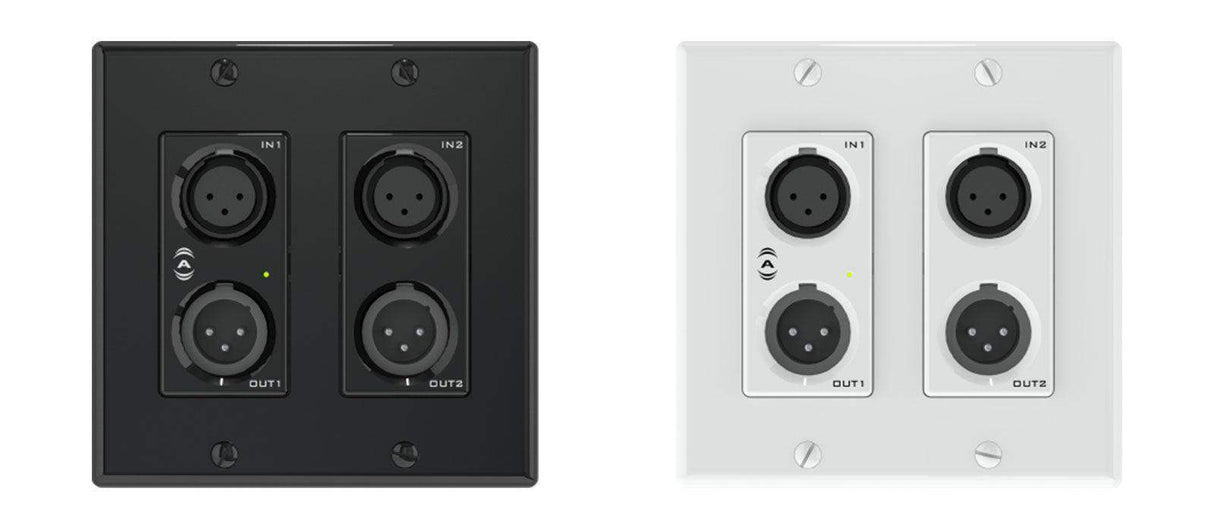

The unDX2IO+ is a cost-effective multi-IO Dante™ audio network wallplate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.
Features
- Dante Domain ManagerTM ready
- Small form factor allows for easy co-location near analog sources or sinks
- PoE powered (802.3af)
- Four input gains to accommodate common line levels and dynamics
- +48 V phantom power per channel
- Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment - both consumer and professional levels
- Industry standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
- Q-SYS Control plugin available – no programming required
| Audio Inputs | |
| Input types | 3-pin XLR (balanced and RF filtered) |
| Gain | -18 dB, -3 dB, +25 dB, +40 dB, software-selectable |
| Phantom power | +48 V, software-selectable |
| Audio Outputs | |
| Output type | Balanced line level with automatic muting on loss of Dante signal |
| Maximum output level | +20 dBu |
| Dante Network | |
| Physical level | Standard ethernet |
| Connector | Single RJ-45 |
| Supported sample rates | 44.1 kHz, 48 kHz |
| General | |
| Dimensions (HWD) | 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm) |
| Weight | 0.6 lb (.27 kg) |
