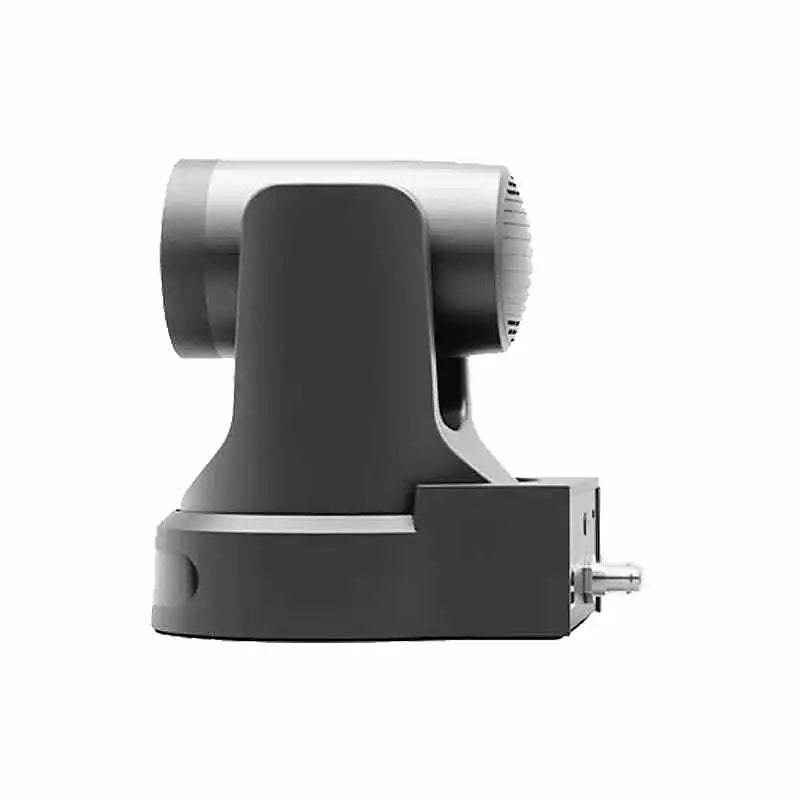

QSC Q-SYS network PTZ cameras - NC-12x80
12x Optical Zoom 80° Horizontal Field of View, PTZ Network Camera, PoE, with HDMI and SDI output. Includes PTZ-WMB1 wall mount bracket
The Q-SYS NC Series PTZ conference cameras deliver high-quality video feeds natively to the Q-SYS Platform. The Q-SYS NC-12x80 offer motorized pan, tilt, and zoom (PTZ) functionality to enable a more broad range of room layouts, sizes and purpose. Joined by the NC-110 ePTZ model, the entire NC Series offers simple and scalable video solutions for any size meeting space.
Driven by the Q-SYS OS, the NC Series integrate seamlessly into any Q-SYS system, allowing for easy camera feed routing anywhere on the network without the need for complicated programming or video matrix hardware. These camera video feeds can be delivered to any modern video conferencing applications such as Microsoft Teams, Zoom, Google Meet and Cisco Webex via any Q-SYS AV bridging peripheral.
Features & Benefits
- NC-12x80: 12x optical zoom, 80° horizontal field of view
- Distribute video via the Q-LAN network anywhere it is needed
- Power over Ethernet (PoE)
- Complete camera imaging controls, including white balance, focus and exposure
- User-configurable resolution and quality for IP streams (up to 1080p), providing greater flexibility for a wide variety of use cases
- Image Rotation control to allow for inverted mounting (optional ceiling mount accessory is the PTZ-CMB1)
- Local 12 V connection for PTZ models (power supply not included)
- PTZ models include PTZ-WMB1 wall mount bracket for simple installation
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
Specs
| Specifications | NC-12x80 | NC-20x60 |
| Description | Network camera with motorized PTZ, 12x optical zoom and 80° field-of view | Network camera with motorized PTZ, 20x optical zoom and 60° field-of view |
| Image Sensor | 1/2.8” Low Noise CMOS | 1/1.8” Low Noise CMOS |
| Lens characteristics (wide to tele) | 12x optical zoom, f=3.47 mm to 41.65 mm, F1.84 to F3.72 | 20x optical zoom, f=6.25 mm to 125 mm, F1.58 to F3.95 |
| Sensor Scanning Mode | Progressive | |
| Horizontal Rotation Range | ±170° | |
| Vertical Rotation Range | -30° to +90° | |
| Pan Speed Range | 1.7° to 100°/s | |
| Tilt Speed Range | 1.7° to 69.9°/s | |
| Ceiling Mountable | Image rotation for ceiling mounting, ceiling mount bracket accessory PTZ-CMB1 sold separately | |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30 s to 1/1000 s | |
| White Balance | Auto, indoor, outdoor, one-push, manual, specified color temperature | |
| IP Stream Resolutions (Preview Window) | H.264 @ 360p, 270p or 180p | |
|
Supported video formats HDMI 2.0 Output SDI-3G Output |
• 4K @ 25, 29.97, 30 fps • 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps • 1080i @ 50, 59.94, 60 fps • 720p @ 30, 50, 59.94, 60 fps • 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps • 1080i @ 50, 59.94, 60 fps • 720p @ 50, 59.94, 60 fps |
|
| DC Power Input | 12 V (±20%), 12 W, JEITA connector | |
| Power Over Ethernet (PoE) | PoE Class 3 (Type 1) | |
| Power Consumption | 12.95 W Max | |
| Size | 6.7 x 7.95 x 5.6 inch (170 x 201 x 142 mm) | |
| Net Weight | 3.5 lbs (1.6 kg) | |
