Blackmagic Design Videohub 80x80 12G
Blackmagic Design Videohub 80x80 12G is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design Videohub 80x80 12G
Blackmagic Design Smart Videohub 12G 80x80
Massive 80x80 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.

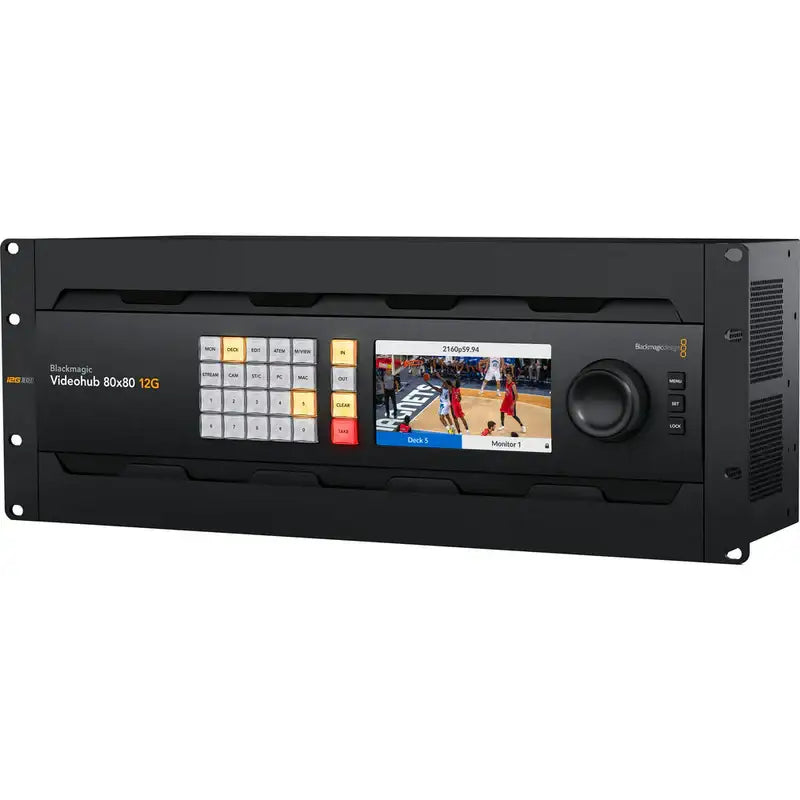

The Blackmagic Design Smart Videohub 12G 80x80 is a powerful 12G-SDI video router designed for demanding broadcast and post-production environments. It offers 80 inputs and 80 outputs with full support for SD, HD, and Ultra HD up to 2160p60 over a single 12G-SDI cable. The integrated LCD control panel allows for quick, intuitive switching, making it ideal for complex live productions that require reliable and high-speed routing of multiple video signals.
Features
-
80x80 12G-SDI routing capacity for large-scale production setups
-
Supports SD, HD, and Ultra HD video formats up to 2160p60
-
Built-in color LCD control panel with rotary knob for easy navigation
-
Auto-detects and switches between multiple SDI formats seamlessly
-
Redundant power supplies for increased reliability
-
Compact 6RU rackmount design for space efficiency
-
Ethernet and RS-422 remote control options
Specifications
| Specification | Details |
|---|---|
| Model | VHUBSMAS12G080080 |
| Inputs | 80 x 12G-SDI |
| Outputs | 80 x 12G-SDI |
| Supported Video Formats | SD, HD, Ultra HD (up to 2160p60) |
| Control Panel | Built-in color LCD and rotary knob |
| External Control | Ethernet, RS-422 |
| Power Supply | Dual redundant 100-240V AC |
| Rack Units | 6RU |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
Comparison Table
| Model | Routing Capacity | Max Resolution | Rack Units | Control Panel |
|---|---|---|---|---|
| Smart Videohub 12G 40x40 | 40x40 | Ultra HD 2160p60 | 2RU | Built-in |
| Smart Videohub 12G 80x80 | 80x80 | Ultra HD 2160p60 | 6RU | Built-in |
| Smart Videohub 12G 120x120 | 120x120 | Ultra HD 2160p60 | 8RU | Built-in |
