Blackmagic Design Videohub 40x40 12G
Blackmagic Design Smart Videohub 12G 40x40
Large 40x40 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.
The Blackmagic Design Smart Videohub 12G 40x40 is a versatile 12G-SDI router designed to meet the demands of professional broadcast and post-production facilities. Offering 40 inputs and 40 outputs, it supports SD, HD, and Ultra HD video signals up to 2160p60 via a single 12G-SDI cable. The built-in high-resolution LCD control panel provides intuitive, fast switching, making it ideal for medium-sized live production environments requiring reliable, multi-format routing.
Features
-
40x40 12G-SDI routing capacity for efficient video signal management
-
Supports SD, HD, and Ultra HD up to 2160p60 on single 12G-SDI cables
-

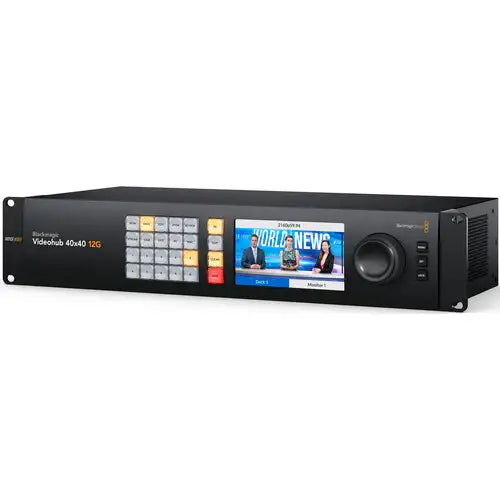

Integrated color LCD control panel with rotary knob for quick routing
-
Automatic detection and switching of multiple SDI formats
-
Dual redundant power supplies for increased system reliability
-
Compact 2RU rackmount design suitable for space-constrained setups
-
Ethernet and RS-422 control for remote operation
Specifications
| Specification | Details |
|---|---|
| Model | VHUBSMAS12G040040 |

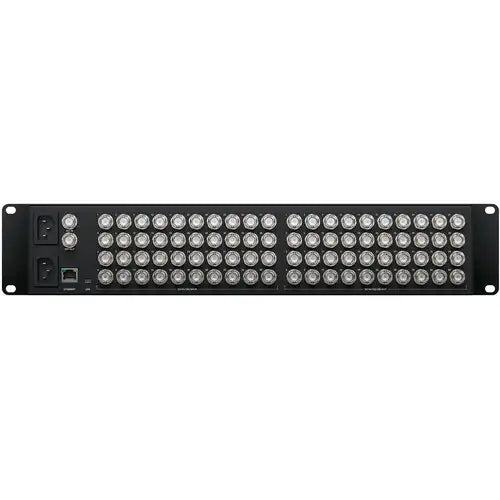

| Inputs | 40 x 12G-SDI |
| Outputs | 40 x 12G-SDI |
| Supported Video Formats | SD, HD, Ultra HD (up to 2160p60) |
| Control Panel | Built-in color LCD and rotary knob |
| External Control | Ethernet, RS-422 |
| Power Supply | Dual redundant 100-240V AC |
| Rack Units | 2RU |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
Comparison Table
| Model | Routing Capacity | Max Resolution | Rack Units | Control Panel |
|---|---|---|---|---|
| Smart Videohub 12G 40x40 | 40x40 | Ultra HD 2160p60 | 2RU | Built-in |
| Smart Videohub 12G 80x80 | 80x80 | Ultra HD 2160p60 | 6RU | Built-in |
| Smart Videohub 12G 120x120 | 120x120 | Ultra HD 2160p60 | 8RU | Built-in |
