Blackmagic Design BDLKIPDIP/OPT/HD DeckLink IP HD Optical
Blackmagic Design BDLKIPDIP/OPT/HD DeckLink IP HD Optical is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design BDLKIPDIP/OPT/HD DeckLink IP HD Optical

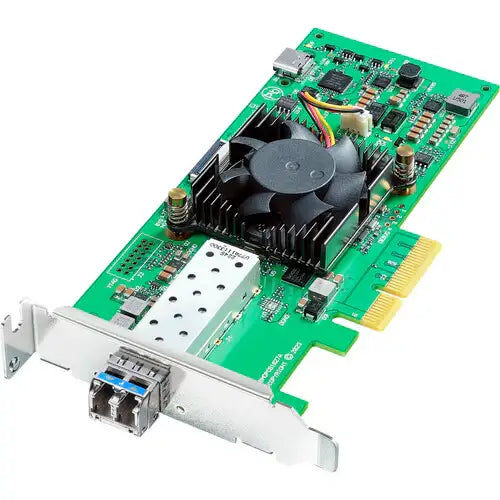

Professional PCIe capture and playback card designed for SMPTE-2110 IP broadcast environments. Connects via 10G SFP+ optical interface for dual 1080p60 channel capture and playback. Ideal for modern IP workflows requiring secure, reliable, low-latency video processing.
Features
-
Dual 2110 IP channels via SFP+ optical (capture and playback)
-
Supports all SD and HD formats up to 1080p60
-
Wide codec compatibility including ProRes, DNxHD/HR, AVC-Intra, HEVC, and uncompressed 10-bit 4:4:4
-
Frame buffer "video firewall" for network security
-
Low-profile PCIe Gen 2 x4 form factor
-
NMOS (IS-04/IS-05) support for device discovery and control
-
Compatible with macOS, Windows, Linux, and major video editing software
Specifications
| Specification | Details |
|---|---|
| Interface | PCIe Gen 2 x4, low profile |
| Network Connection | 1× 10GBASE-LR Optical SFP+ port |
| Channels | 2 capture + 2 playback |
| Supported Formats | SD/HD up to 1080p60 |
| Codec Support | ProRes, DNxHD/HR, AVC-Intra, HEVC, uncompressed 10-bit 4:4:4 |
| Security | Frame buffer video firewall |
| IP Control | NMOS IS-04 and IS-05 compliant |
| OS Compatibility | macOS, Windows, Linux |
| Warranty | 3 years |
Comparison Table
| Feature / Model | DeckLink IP HD Optical | DeckLink IP HD (RJ45) | DeckLink IP/SDI HD |
|---|---|---|---|
| Network Interface | 10G Optical SFP+ | 10G RJ45 (copper) | RJ45 + 3G-SDI ports |
| Channels (Capture/Playback) | 2 / 2 | 2 / 2 | 2 / 2 |
| Max Resolution | 1080p60 | 1080p60 | 1080p60 |
| Security Firewall | Yes | Yes | Yes |
| MSRP (approximate) | $415 | $415 | $475 |
