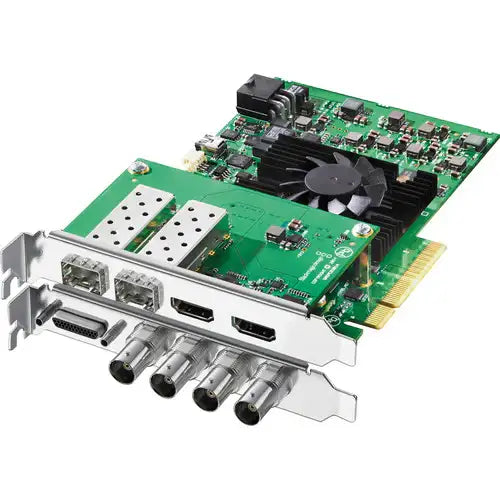

Blackmagic Design BDLKHDEXTR4K12G DeckLink 4K Extreme 12G
This card supports 12G-SDI, enabling single-link 4K capture and playback up to 60fps. It offers 8 channels of 3G-SDI for multi-channel HD workflows, making it versatile for broadcast, post-production, and live streaming. With robust driver support and compatibility across platforms, it’s built for demanding pro environments. But if you’re not regularly working with 4K or multi-channel HD, it might be overkill.
Features
-
12G-SDI single-link 4K capture and playback at up to 60fps
-
8 channels of 3G-SDI for multi-channel HD capture/playback
-
Supports uncompressed and compressed video formats
-
Compatible with Windows, macOS, and Linux
-
PCIe Gen 2 x8 interface for high throughput
-
Supports HDR workflows and color spaces including Rec. 2020
Specifications
| Specification | Details |
|---|---|
| Inputs | 1 x 12G-SDI, 8 x 3G-SDI |
| Outputs | 1 x 12G-SDI, 8 x 3G-SDI |
| Max Resolution | 4K DCI and UHD at 60fps |
| Interface | PCIe Gen 2 x8 |
| Formats Supported | Uncompressed, ProRes, DNxHD, H.264 |
| OS Compatibility | Windows, macOS, Linux |
Comparison Table
| Feature / Model | DeckLink HD Extreme 4K 12G | DeckLink 4K Extreme 12G | DeckLink Mini Recorder 4K |
|---|---|---|---|
| Max Resolution | 4K at 60fps | 4K at 60fps | 4K at 30fps |
| SDI Channels | 8 channels of 3G-SDI | 4 channels of 3G-SDI | 1 channel of 12G-SDI |
| Capture and Playback | Yes | Yes | Capture only |
| Interface | PCIe Gen 2 x8 | PCIe Gen 2 x8 | Thunderbolt 3 |
| Price Range | High-end | High-end | Mid-range |
