Panamax PM Series Max 5300 Power Management, 2RU, 11 Outlets - M5300-PM
Panamax PM Series Max 5300 Power Management, 2RU, 11 Outlets - M5300-PM is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Panamax PM Series Max 5300 Power Management, 2RU, 11 Outlets - M530...
The Panamax M5300-PM Power Conditioner is designed to improve and protect the picture and sound quality of all your A/V equipment. It eliminates common symptoms of contaminated power, including loss of detail, pops, hisses, hums, and visual artifacts, and offers equipment safeguards like catastrophic surge protection and power sequencing.

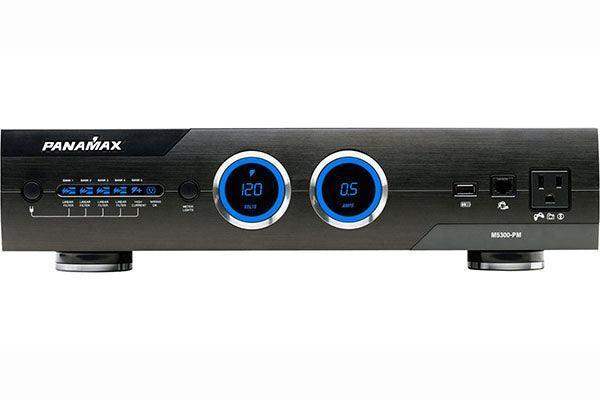

The M5300-PM utilizes Panamax's patented AVM technology to continuously monitor incoming power. In the event of under- or over-voltage, an alert will appear of the digital voltmeter, and the power is automatically disconnected. When the voltage returns to safe levels, power is automatically restored. The M5300-PM also uses isolated power banks to provide noise isolation, ensuring that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank.

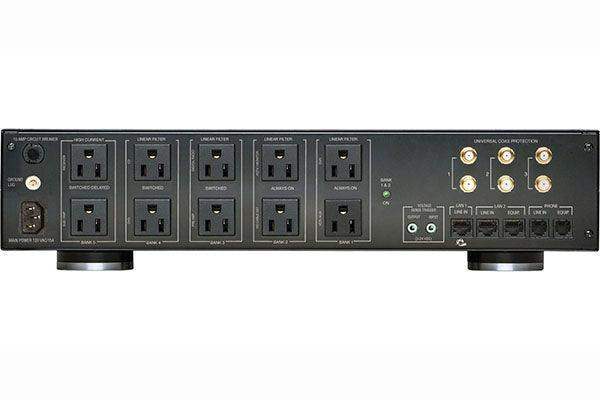

The M5300-PM features 11 total outlets (5 Always On, 4 Switched, 2 Switched High Current) and 5 isolated outlet banks. It's equipped with a built-in USB port for charging compatible devices and a front-panel LAN port that's excellent for online gaming.
Features
- Improves Picture and Sound Quality
- Automatic Voltage Monitoring
- 5 Isolated Outlet Banks
- 11 Total Outlets
- Gaming LAN Port
- USB Charging Port
- 12 Volt Trigger
- Surge Protection and Power Sequencing
Specs
Panamax M5300-PM Specs
| Under-Voltage Shutoff | 90 VAC ± 2 VAC |
| Over-Voltage Shutoff | 142 VAC ± 8 VAC |
| AC Suppression Current Rating | 330 V |
| Max Total Current | 15 A |
| Protection Modes | L-N, L-G, N-G |
| Peak Impulse Current | 72,000 A |
| Line Voltage | 120 VAC, 60 Hz |
| Energy Dissipation | 2125 J |
| EMI / RFI Noise Filtration: | Banks 1, 2, 3, 4: 80 dB, 100 kHz − 2 MHz Bank 5, High Current Outlets: 60 dB, 100 kHz − 2 MHz |
| DC Trigger | Input: Voltage and Polarity: 3 - 24 VDC, bidirectional Jacks: 3.5 mm (1/8") mono mini-plug Current Requirement: 4.6 mA @ 3 V, 58 mA @ 24 V Output: Positive: Tip Negative: Ring Pass Through: No delay |
| LAN Configuration | Wires Protected: 8 Connectors: RJ-45 Compatibility: 10/100 bT Clamping Level: 52 V |
| USB | Power Delivery: 500 mA @ 5 VDC Jacks: USB Type-A |
| Protections | Telco: Wires Protected: 2 wires, pins 4 & 5 Suppression Modes: Metallic & longitudinal Fuseless/Auto-Resetting: Yes Connectors: RJ-11 Clamping Level: 260 V Capacitance: 30 pf Universal: Shielded: Yes Insertion Loss: < 0.5 dB HD 1080 i/p Ready: Yes Frequency Range: 0 MHz - 2.2 GHz Connections: Female, gold-plated Clamping Level: 75 V Bidirectional: Yes |
| Dimensions | 17 x 12.75 x 3.5" (43.2 x 32.4 x 8.9 cm) |
| Cord Length | 10' (3.0 m) |
| Weight | 12.8 lb (5.8 kg) |
| Package Weight | 20.65 lb |
| Box Dimensions (LxWxH) | 23.75 x 20 x 10" |
