Crestron Universal Mounting Bracket for TSW-70 Series - TSW-UMB-70

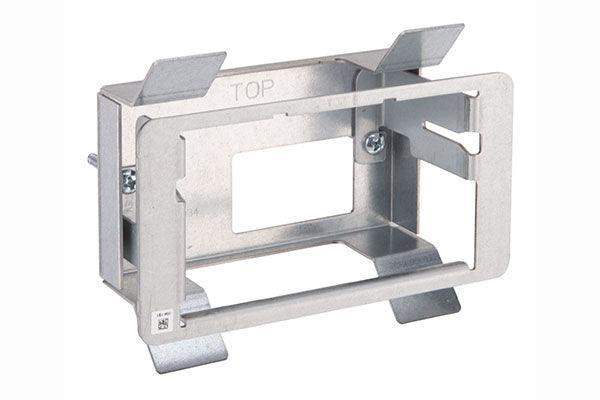

The Crestron® TSW‑UMB‑70 universal mounting bracket provides a simple in‑wall mounting solution for TSW‑570, TSW‑770, TSW‑1070, TSS‑770, and TSS‑1070 series touch screens. The TSW‑UMB‑70 is also compatible with TSW‑570P series touch screens when mounted in portrait orientation.
NOTE: TSW‑570 and TSW‑570P series touch screens ship with one TSW‑UMB‑70 included.
By itself, the TSW‑UMB‑70 is a postconstruction solution that allows the touch screen to be retrofitted into existing drywall or paneling. The bracket is also suitable for use in a lectern or podium. Because the TSW‑UMB‑70 fits all supported touch screen models, a touch screen can be replaced easily without needing to cut or patch the wall.
For preconstruction wall mounting applications, the TSW‑UMB‑70 can be used along with the TSW‑UMB‑70‑PMK or TSW‑UMB‑570P‑PMK mounting kits. For masonry and concrete installations, the TSW‑UMB‑70 can be used along with the TSW‑UMB‑70‑BBI wall mount back box.1
Specification
| Construction | |
| Material | Metal bracket and clamp assembly |
| Mounting | Surface mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 2‑13/16 in. (72 mm) minimum mounting depth; 1‑1/4 in. (32 mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket and wall mount back box accessories sold separately1 |
| Dimensions | |
| Height | 2.29 in. (58 mm) |
| Width | 4.34 in. (110 mm) |
| Depth | 1.78 in. (45 mm) |
