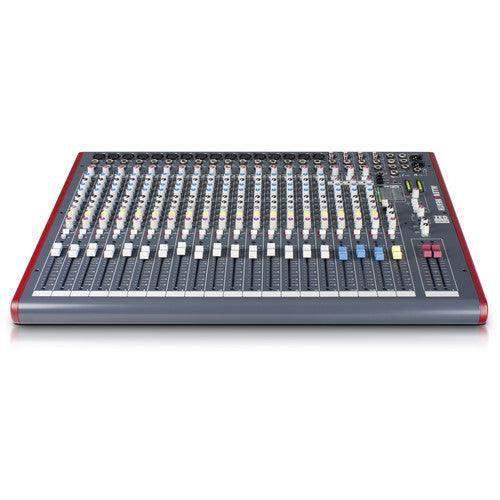

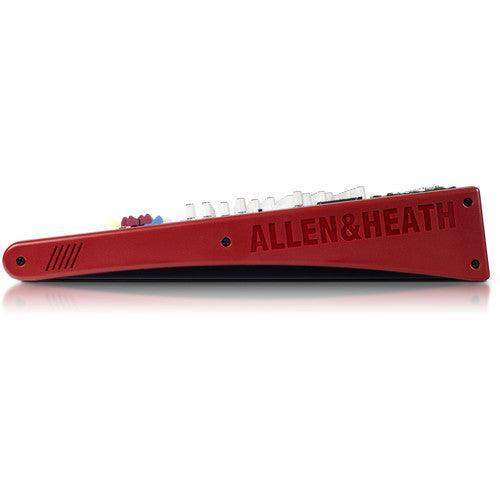

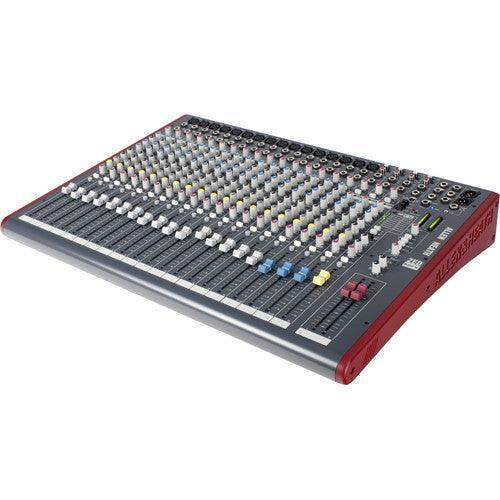

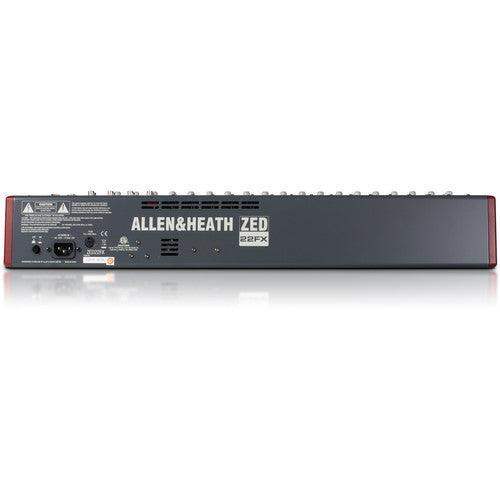

Allen & Heath ZED-22FX 22-Channel Analog Mixer with USB and Built-In Effects

Shipping calculated at checkout.
Allen & Heath  |  SKU: AH-ZED22FX

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

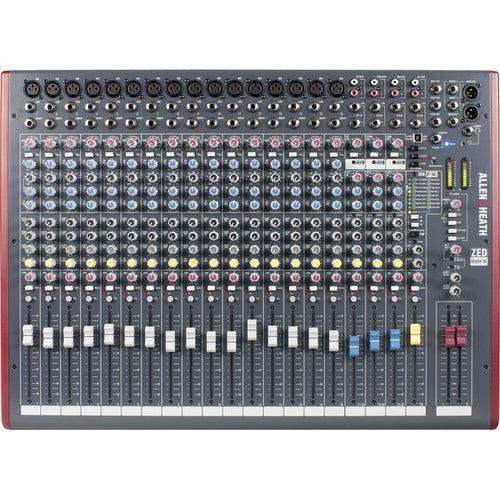

The Allen & Heath ZED-22FX is a 22-channel analog mixer offering versatile I/O and built-in effects for use in home and project studio recording, houses of worship, and live sound reinforcement. The 16 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 3-band EQ, while the three stereo channels have 1/4" inputs and 2-band EQ. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.

The three external aux sends are ideal for routing to floor monitors or outboard time-based effects, leaving the internal aux send dedicated as a feed to the built-in effects processor, which boasts 16 presets, a tap tempo function, and adjustable parameters. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to alt and headphone outputs, and dual 12-segment LED meters that clearly indicate your master output level. Patch additional stereo sources into the RCA stereo return and 2-track inputs, then route them to the stereo bus, or mix them into the stereo channels. The stereo RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard.

16 Mono Inputs
There are 16 mono input channels with Neutrik connectors—XLR for balanced mic signals, and 1/4" for balanced/unbalanced line-level sources
3 Stereo Inputs
The three stereo input channels feature 1/4" connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processors
Flexible EQ Section
All mono channels feature 3-band EQ with sweepable midrange, while the stereo channels offer 2-band EQ
Inserts
Inserts on all mono channels and the stereo output provide easy integration of analog outboard gear such as hardware compressors and equalizers

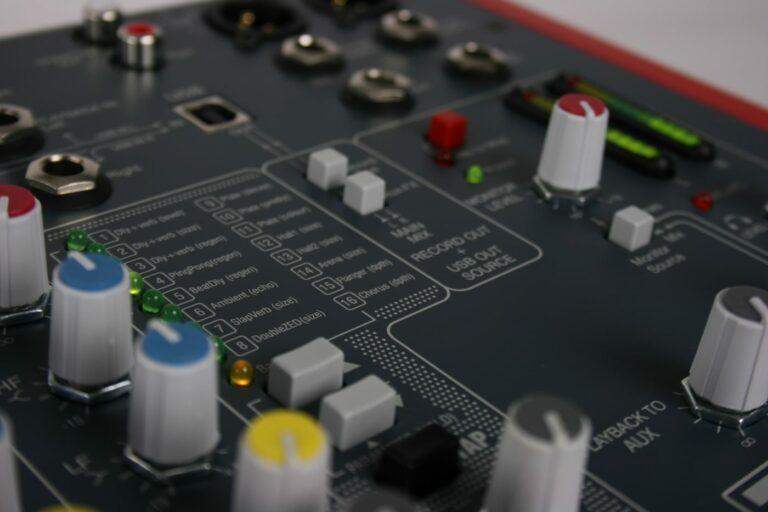

Onboard Effects
An internal aux send bus feeds the built-in effects processor, which provides an array of high-quality delay, reverb, and modulation effects, and returns to the stereo bus
Independent Aux Sends
Three mono aux sends with independent level controls allow versatile signal routing to floor monitors and external effects processors
USB Connection
A USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/O
Flexible Outputs
The ZED-22FX offers balanced XLR stereo main outputs, a 1/4" mono main output, 1/4" and 3.5mm stereo headphone outputs, and a source-selectable stereo alt output

Specs
Number of Analog Input Channels
22
Number of Mic Preamps
16
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
1x Stereo ALT Master Output
3x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Built-In Effects
Yes
USB I/O
1x USB-B 1.1()
Rack Mountable
No
Mixer
Number of Analog Input Channels
22
Number of Mic Preamps
16
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
1x Stereo ALT Master Output
3x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Faders & Level Adjustment
3.9" / 100 mm Channel Fader
Meters
Main Meter:
2x 12-Segment LED
Channel Meter:
Single LED
Signal Processing
Gain/Trim Range
Mic Input:
-6 dB to +63 dB
Line Input:
-10 dB to +26 dB
Stereo Input:
-∞ to +10 dB
Fader:
-∞ to +10 dB
Return:
-∞ to +10 dB
Aux:
-∞ to +10 dB
Matrix:
-∞ to +6 dB
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 120 Hz to 4 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Low: ±15 dB at 80 Hz
Filters
High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute
Mute, PFL per Input Channel
Mute, PFL per FX Bus
Built-In Effects
Yes
Digital Audio
Sample Rates
32 / 44.1 / 48 kHz
Bit Depth
16-Bit
Performance
Headroom
Analog: +21 dB
USB I/O: +14 dB
Frequency Response
Mic Input to Main Output:
20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level
Mic Input:
+17 dBu
Line Input:
+30 dBu (Mono)
Insert Return:
+21 dBu
Output Level
+21 dBu at Max Gain
0 dBu (Nominal)
EIN
-127 dBu at Max Gain (150-Ohm Input)
Noise Floor
Main Output:
-84 dBu (Master Level at Unity, 22 Hz to 22 kHz)
THD+N
Mic Input to Main Output:
0.004% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
0.014% at +30 dB Gain (1 kHz)
Line Input to Main Output:
0.005% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (+10 dBu, 1 kHz)
Connectivity
Analog Inputs
1x 1/4" TS Footswitch Input
1x Stereo RCA Coaxial 2-Track Input
16x 1/4" TRS Unbalanced Channel Insert
2x 1/4" TRS Unbalanced Stereo Main Insert
16x XLR 3-Pin Balanced Mic Input
16x 1/4" TRS Balanced/Unbalanced Line Input
2x 1/4" TRS Balanced Aux Return (1 Stereo Pair)
1x Stereo RCA Coaxial Unbalanced Aux/Line Input
6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)
Analog Outputs
1x Stereo RCA Coaxial 2-Track Output
1x Stereo RCA Coaxial Unbalanced Alt Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
2x XLR 3-Pin Balanced Main (1 Stereo Pair)
1x 1/4" TRS Balanced Main Output
3x 1/4" TRS Balanced Mono Aux Send
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 1.1()
USB I/O Capacity
2x Input / 2x Output
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
40 W (Maximum)
Physical
Rack Mountable
No
Dimensions
25.4 x 3.9 x 18.3" / 64.5 x 9.8 x 46.5 cm
Weight
23.1 lb / 10.5 kg
