Lightware WP-VINX-110P-HDMI-ENC Wallplate AV Over IP Scaling Multimedia Extender with USB K+M and PoE support (Black) - 91810023
Lightware WP-VINX-110P-HDMI-ENC Wallplate AV Over IP Scaling Multimedia Extender with USB K+M and PoE support (Black) - 91810023 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware WP-VINX-110P-HDMI-ENC Wallplate AV Over IP Scaling Multim...

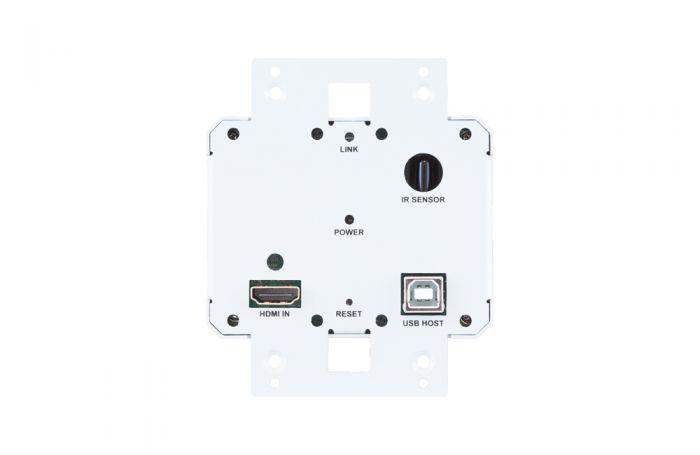

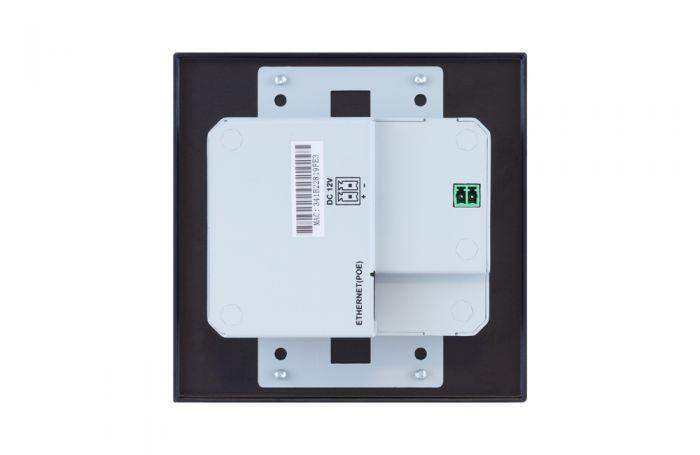

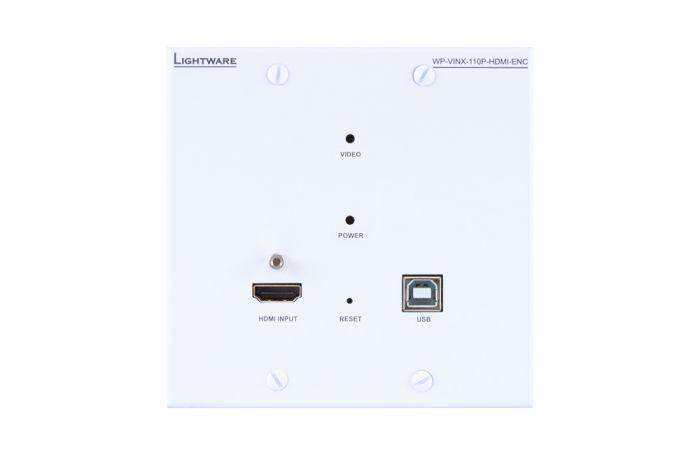

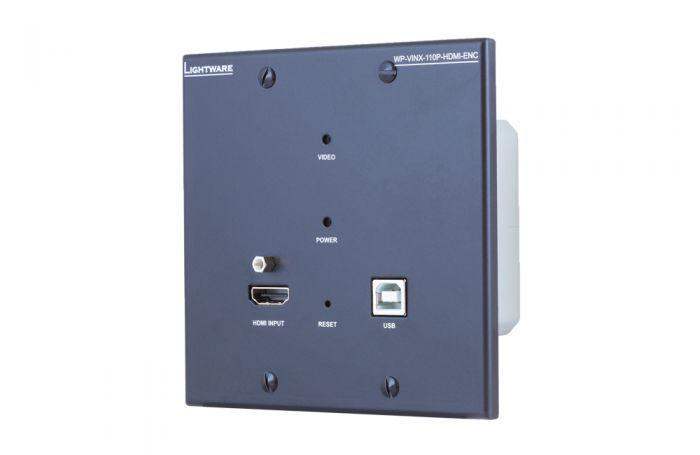

WP-VINX-110P-HDMI-ENC is a two-gang form factor LAN based encoder multimedia device to extend HDMI video from a local source to a remote sink. The VINX encoder and decoder devices connect either via a direct CATx cable connection or through a Gigabit Ethernet switch in-between.
Availabile in Black or White.
Features
- Passive, noiseless cooling
- Compact and silent design in 2-gang form factor suitable for wall, floorbox and lectern mounting
- Fits in 2-gang form factor Carlon boxes suitable for wall, floorbox and lectern mounting
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- HDMI 1.4 and DVI 1.0 compliant
- USB 1.1 K+M (HID) extension
- USB 2.0 MSC (Mass Storage Class) extension
- Advanced EDID Management
- Intuitive control software for device configuration
- Device control via Ethernet (TCP/IP)
- Built-in website for device configuration
- Firmware upgrade through Ethernet
- HDCP 2.2 and HDCP 1.4 compliant
- Status LED for video signal detection
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
-
Specs
-
Specifications Rack mountable No Enclosure material 1,5 mm steel Dimensions in mm* 116,3 W x 44 D x 115 H Dimensions in inch 4.58 W x 1.73 D x 4,53 H * with front panel attached
Edid Management EDID emulation Yes, advanced EDID management EDID memory 80 factory presets, 5 programmable Supported standard EDID v1.3 Networked AV output Power over Ethernet (PoE) Yes, (IEEE 802.3af) Compliance 1000Base-T (IEEE 802.3ab) HDCP compliance HDCP 1.4 Transferred signals Video, Audio, RS-232, Infrared, Ethernet, USB Color space RGB, YCbCr Video delay 2,2 frames (end-to-end) Supported resolutions at 8 bits/color * up to 4096x2048@30Hz (4:4:4) or 4096x2048@60Hz (4:2:0) up to 3840x2160@30Hz (4:4:4) or 3840x2160@60Hz (4:2:0) 1920x1080@60Hz (4:4:4) up to 12 bits/color Audio formats All HDMI2.0 audio formats * All standard VESA and CEA resolutions up to 300MHz (HDMI1.4) and other custom resolutions up to 300Mhz are supported.
Ethernet port Connector type RJ45 female connector Ethernet data rate 10/100/1000Base-T, full duplex with autodetect Power over Ethernet (PoE) Supported USB port Connector type B-type receptacle USB compliance USB 2.0 Device class HID / Mass storage COMPARISON TABLES OF AVAILABLE VINX MODELS
Av Ports of Encoders VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC HDMI input check check check VGA input cancel cancel check HDMI local output check check cancel Analog audio input cancel check check Dante / AES67 Audio output Av Ports of Decoders VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC HDMI output check check Analog audio output cancel check Ethernet and Control Ports VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC RJ45 Ethernet check check check check check SFP Ethernet cancel check check cancel check RS-232 RJ12 9-pole D-sub 9-pole D-sub 9-pole D-sub RJ12 9-pole D-sub USB Mini USB Type B USB Type B USB Type B USB Type B USB Type B 4x USB Type A 4x USB Type A Video Features VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC Image resolution 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz EDID Management Advanced Management Advanced Management Advanced Management Advanced Management Advanced Management Transparent Transparent HDCP HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 Scaling cancel cancel cancel check check Powering and Mounting VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC Local Power DC 5V DC 12V DC 12V DC 12V DC 5V DC 5V DC 12V PoE Remote powering cancel check check cancel check RU Width for rack mounting 1/4 1/2 1/2 1/2 1/4 1/2 Power Rack Tray compatibility check cancel cancel check
