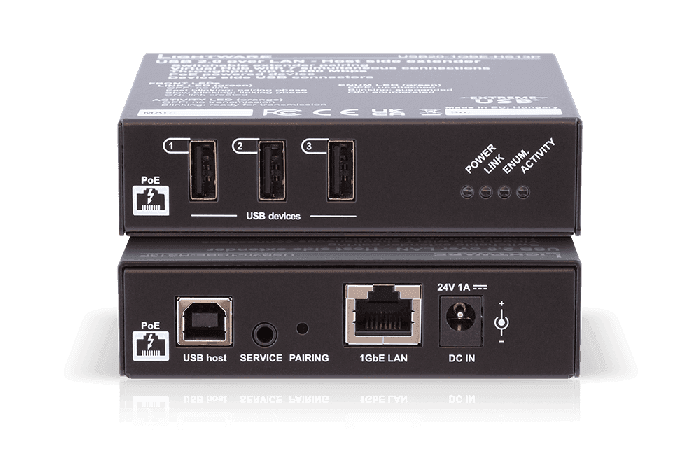

Lightware USB20-1GBE-HS13P PoE+ USB 2.0 over LAN host side extender - 91810033

Authorized Dealer

$1,254.00

Shipping calculated at checkout.

LightWare | SKU: 91810033

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Being part of an ExtremeUSB(R) USB 2.0 extension solution, this remotely powerable extender can be used to receive USB data directly or over the LAN from multiple AV devices which function as compatible device side extenders.

Features

1500mA charging on the USB ports (3A maximum on all ports)
3 USB A ports for local device connectivity
LAN and direct cable connectivity supported
Transparent USB extension
Throughput up to 480 Mbps
Dynamic pairing to up to 7 compatible host side extenders
PoE+ remote powering capability according to IEEE 802.3at

Specs

General
Traffic types	All USB 2.0 and USB 1.1 traffic types
Extension range (network infrastructure)	maximum 100m (330 ft) using solid core CAT5e/6/7 cables
Extension range (direct connection)	maximum 100m (330 ft) using a single CAT5e/6/7 cable
Throughput (USB 2.0)	maximum 480 Mbps
Throughput (USB 1.1)	maximum 12 Mbps
Supported device types	Control, Interrupt, Isochronous and Bulk
Compliance	FCC, CE, UKCA
Electrical safety	IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission)	TBD
EMC (immunity)	TBD
RoHS	EN 63000:2018
Warranty	3 years
Operating temperature	0° to +50°C (+32° to +122°F)
Storage temperature	-20° to +70˚C (-4° to +158˚F)
Operating humidity	10% to 90%, non-condensing
Cooling	passive
Pairing control	with pairing buttons and a UDP control protocol
Number of USB devices/hubs in a solution	maximum 30

Power
Power supply option	Power adaptor and PoE+ (IEEE 802.3at)
Power consumption (max)	TBD
Power consumption (min)	TBD
Heat dissipation	TBD
Power adaptor
Supported power source	100-240 V AC; 50/60 Hz
Supplied power	24V DC, 1A
AC power plug	Interchangable (EU, UK, US, AUS)
DC power plug	DC connector (2.1/5.5 mm pin)

Enclosure
Rack mountable	Yes, 1U high
Enclosure material	1 mm steel
Dimensions in mm	100.4 W x 85.6 D x 26 H
Dimensions in inch	3.95 W x 3.37 D x 1.02 H
Weight	TBD

Ports
USB device ports
Number	3
Connector type	A-type receptacle
USB compliance	USB 2.0
Device class	All device classes
USB host port
Connector type	B-type receptacle
USB compliance	USB 2.0
Device class	All device classes
Ethernet port
Connector type	RJ45 female connector
Ethernet data rate	Gigabit Ethernet
Power over Ethernet (PoE)	Not supported
