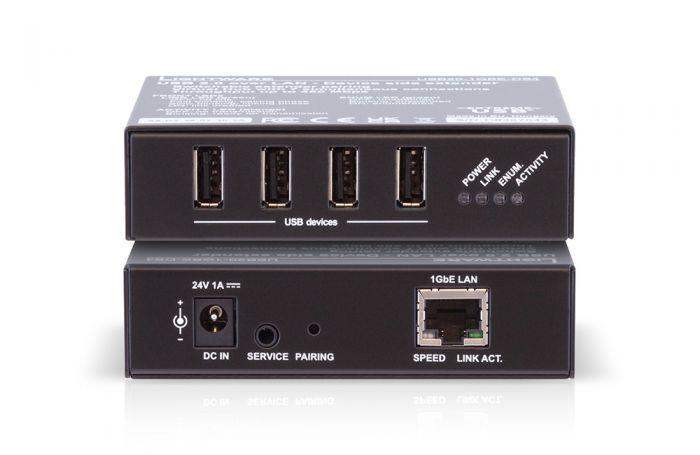

Lightware USB20-1GBE-DS4P USB 2.0 over LAN device side extender - 91810030

Authorized Dealer

$1,254.00

Shipping calculated at checkout.

LightWare | SKU: 91810032

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Being part of an ExtremeUSB® USB 2.0 extension solution, this extender can be used to attach USB devices and transmit their data over the LAN or directly towards any AV device that functions as a compatible host side extender.

Features

LAN and direct cable connectivity supported
Dynamic pairing to compatible host side extenders
Transparent USB extension
Throughput up to 480 Mbps
1000mA charging on the USB ports

Specs

General
Traffic types	All USB 2.0 and USB 1.1 traffic types
Extension range (network infrastructure)	maximum 100m (330 ft) using solid core CAT5e/6/7 cables
Extension range (direct connection)	maximum 100m (330 ft) using a single CAT5e/6/7 cable
Throughput (USB 2.0)	maximum 480 Mbps
Throughput (USB 1.1)	maximum 12 Mbps
Supported device types	Control, Interrupt, Isochronous and Bulk
Compliance	CE, UKCA, FCC
Electrical safety	EN 62368-1:2020
EMC (emission)	EN 55032:2015+A1:2020
EMC (immunity)	EN 55035:2017+A11:2020
RoHS	EN 63000:2018
Warranty	3 years
Operating temperature	0° to +50°C (+32° to +122°F)
Storage temperature	-20° to +70˚C (-4° to +158˚F)
Operating humidity	10% to 90%, non-condensing
Cooling	passive
Pairing control	with pairing buttons and a UDP control protocol
Number of USB devices/hubs in a solution	maximum 30

Power
Power supply option	Power adaptor
Power consumption	9W
Heat dissipation	31 BTU/h
Power adaptor
Supported power source	100-240 V AC; 50/60 Hz
Supplied power	24V DC, 1A
AC power plug	Interchangable (EU, UK, US, AUS)
DC power plug	DC connector (2.1/5.5 mm pin)

Enclosure
Rack mountable	Yes, 1U high
Enclosure material	1 mm steel
Dimensions in mm	100.4 W x 75.3 D x 26 H
Dimensions in inch	3.95 W x 2.96 D x 1.02 H
Weight	TBD ? g (? lb)

Ports
USB device ports
Number	4
Connector type	A-type receptacle
USB compliance	USB 2.0
Device class	All device classes
Ethernet port
Connector type	RJ45 female connector
Ethernet data rate	Gigabit Ethernet
Power over Ethernet (PoE)	Not supported
