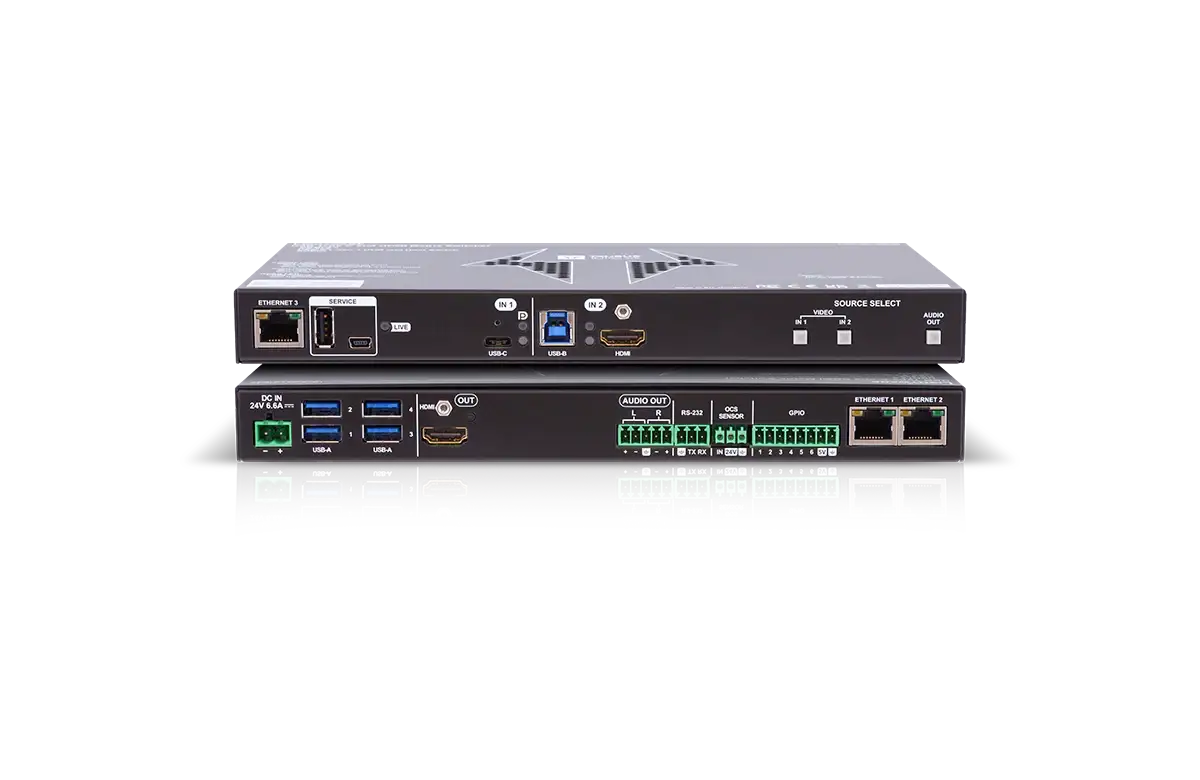

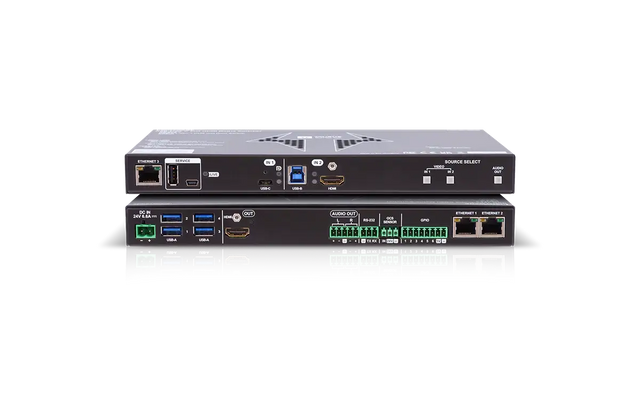

Lightware UCX-2x1-HC40 Universal Switcher with HDMI 2.0 and USB-C connectivity - 91560008

Lightware’s universal switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet.

Bring Collaboration Spaces to the Next Level

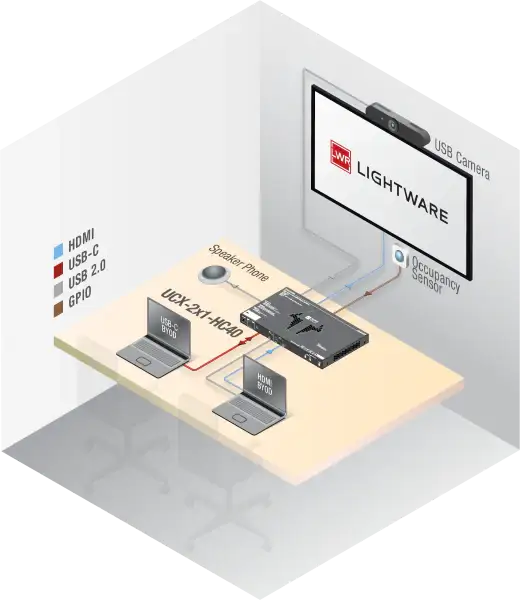

The UCX-2x1-HC40 universal switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also utilizing the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.

Exploit the Possibilities of USB connectivity

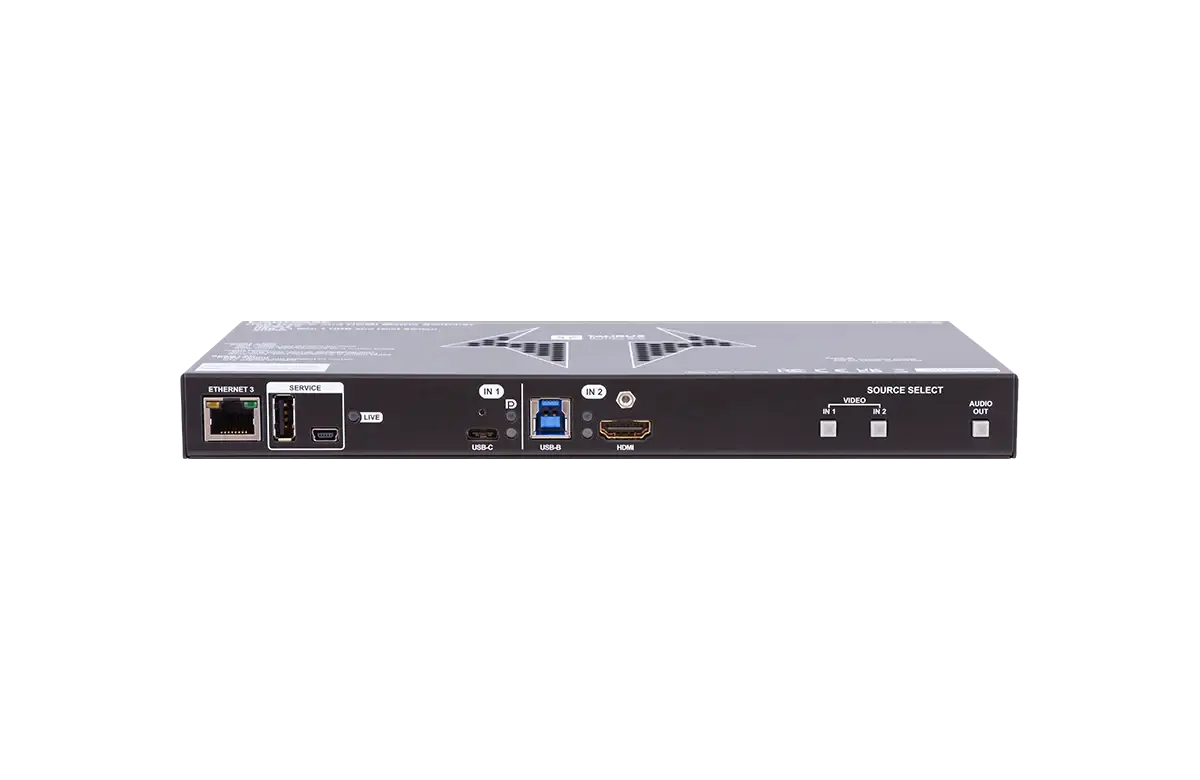

The device utilizes the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power, and allows data speeds of up to 5 Gbps under the USB 3.1 Gen1 and allowing video resolution capabilities up to 4K@60Hz at 4:4:4. Users who connect their laptop or other mobile device via USB-C can also enjoy charging up to 100W, thus eliminating the need to look for a wall plug and to avoid sudden interruption of meetings.

Devices such as laptops that do not come with USB-C connectivity can also be connected quickly and easily, using a combination of HDMI 2.0 and USB 3.1 Gen1 connections without compromising on either video resolution or data speeds.

The device is designed to be a centerpiece of any collaboration space, and can be connected to four USB peripherals via USB-A type connectors.

The device allows up to two hosts to be connected to the system, and also ensures quick and easy switching between these hosts, making this universal switcher a perfect fit for smaller meeting areas, involving 6-12 people.

Additional Features and Capabilities

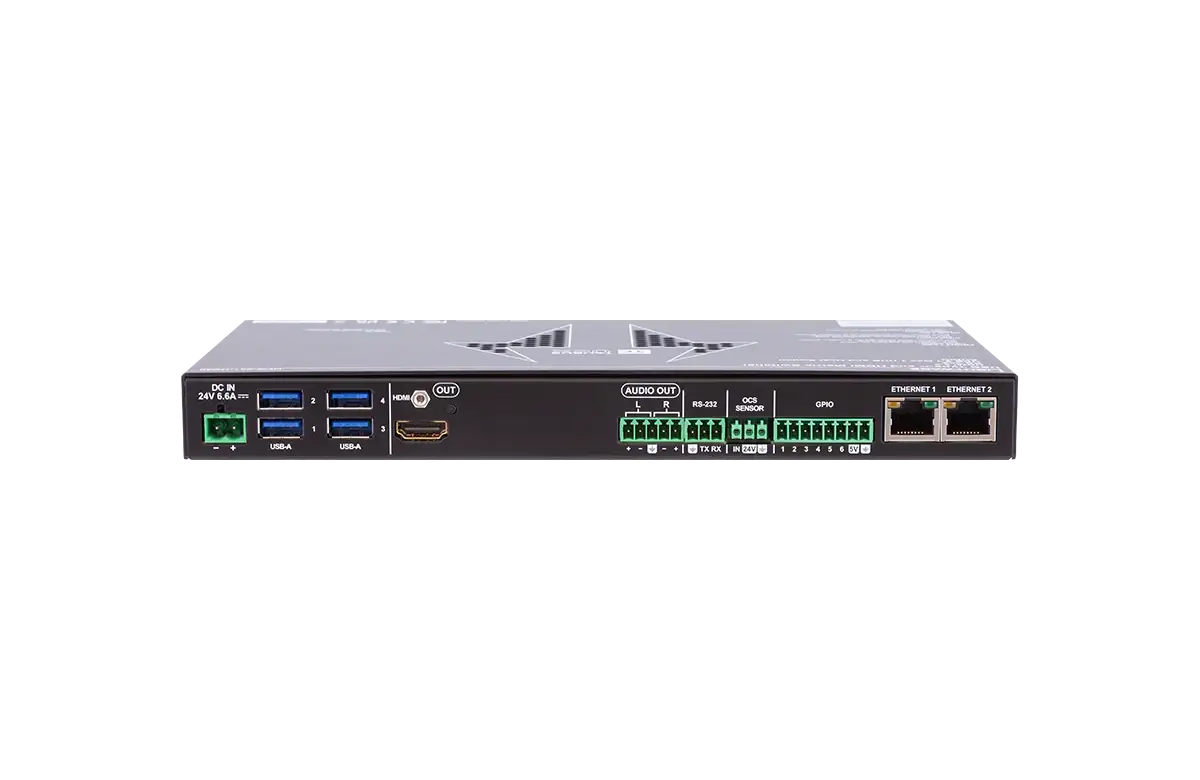

Automated room control features are also included through GPIO ports, besides of RS-232 and occupancy sensor connectivity, and the switcher also thrives when it comes to audio capabilities, offering analog audio de-embedding.

Security is always a key concern to our customers, therefore our engineers ensured that the UCX-2x1-HC40 adheres to the strictest security standards.

Secure corporate Ethernet interfaces ensure secure device control and configuration under the SSH, SSL and HTTPS standards, whilst the device can also be securely connected to a closed network of room control devices such as wall panels, or routed to the corporate system for additional control options, all via separate Ethernet layers.

The Taurus UCX offers noiseless operation, no fan in the device.

In today’s collaboration environments, it is key that the technology offers flexible and versatile ways for participants to unlock the full potential of a collaboration space and to not be limited by the default options offered by their meeting rooms.

The Taurus UCX product family is Lightware’s ground-breaking innovation offered for the increasingly growing demand for cutting-edge solutions in the world of Unified Communications.

Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360026)

Remote System Logging (Syslog)

Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.

• Forward logs via TCP, UDP, TLS

• Choose between human-readable and structured formats

• Easy configuration via LW3 protocol

• Local journald logging remains unaffected
