Lightware TPX-2x1-TX20-RX107 Taurus TPX transmitter and receiver bundle - 91350019
Lightware TPX-2x1-TX20-RX107 Taurus TPX transmitter and receiver bundle - 91350019 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware TPX-2x1-TX20-RX107 Taurus TPX transmitter and receiver bu...

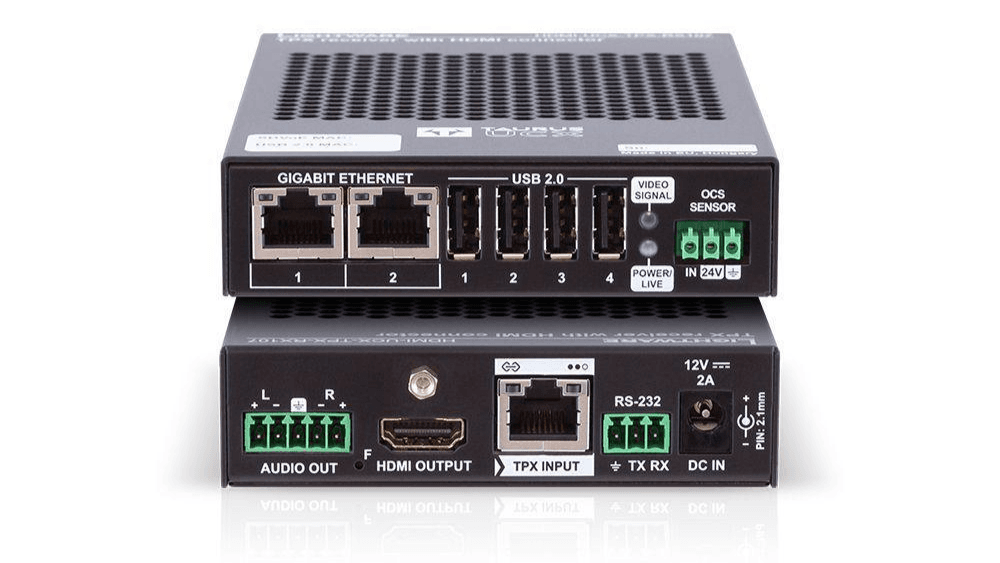

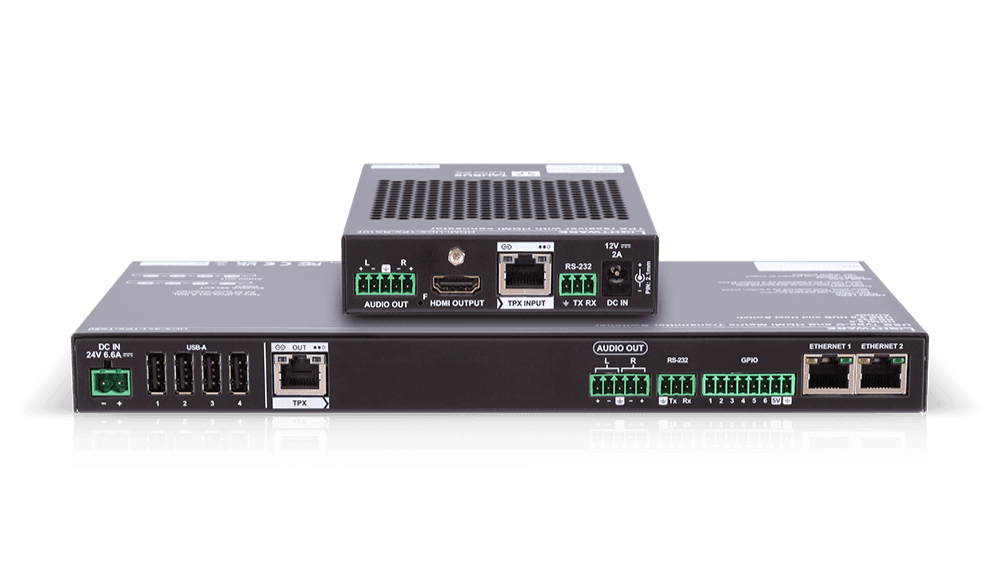

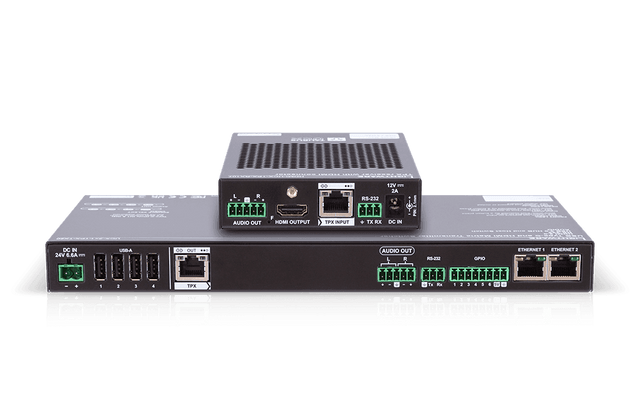

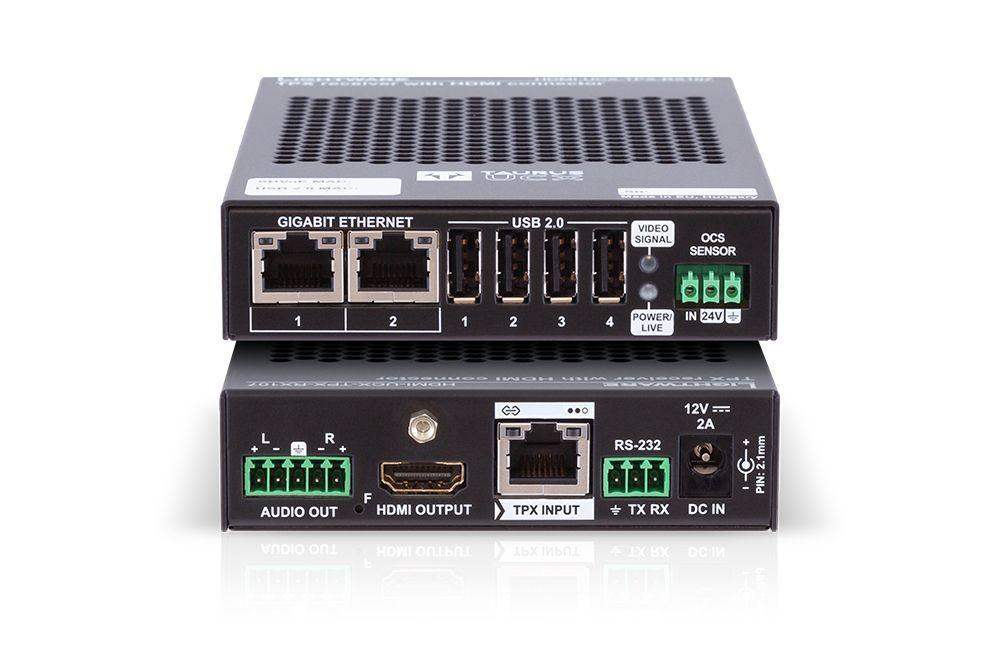

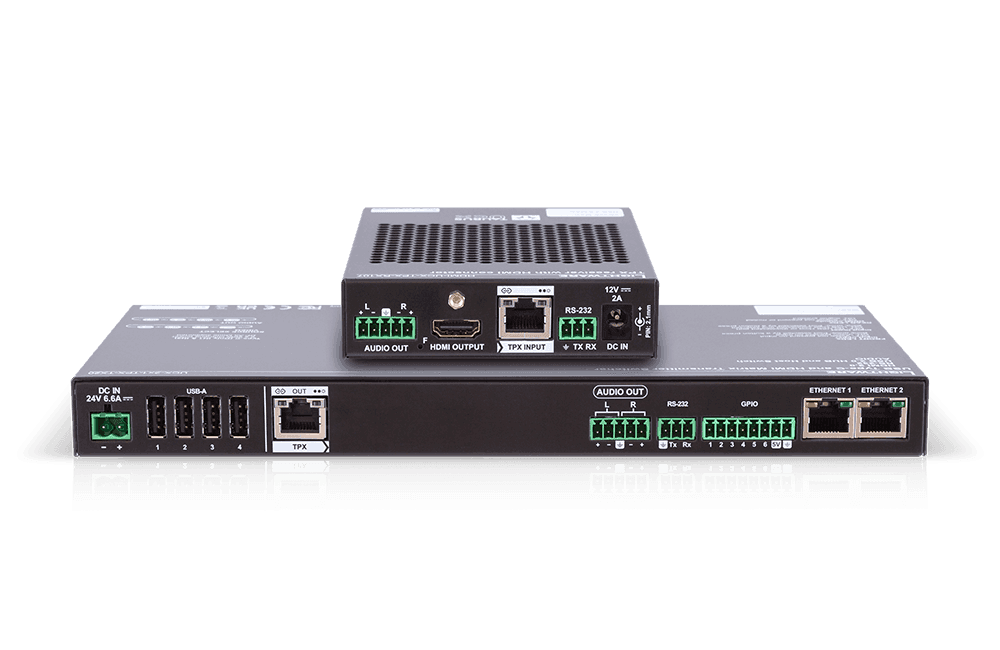

Lightware Taurus TPX Transmitter and Receiver Bundle
Model: UCX-2x1-TPX-TX20 + HDMI-UCX-TPX-RX107
High-Performance AV-over-IP USB-C Extender System for Modern Meeting Spaces
The Lightware Taurus TPX bundle delivers a cutting-edge AV and USB signal transmission solution designed for seamless, single-cable connectivity across professional environments. Featuring the UCX-2x1-TPX-TX20 transmitter and HDMI-UCX-TPX-RX107 receiver, this bundle supports long-distance transmission of 4K video, audio, USB 2.0, control signals, and Ethernet over a single CAT cable up to 100 meters. With integrated USB-C input, independent USB host switching, and PoE compatibility, the Taurus TPX system offers unparalleled flexibility for collaborative spaces.
Key Features:
-
USB-C Input & Charging: Supports full-function USB-C with up to 100W charging, transmitting video, audio, data, and power from a single source.
-
Single-Cable Transmission: Transmits video, audio, USB 2.0, RS-232, Ethernet, and control signals over one CAT cable up to 100m.
-
Advanced USB Host Switching: Independently switch USB hosts at TX and RX with support for up to 8 devices (4 at each end).
-
4K UHD Video Support: Transmit and display resolutions up to 4096x2160@60Hz 4:4:4, with full HDCP compliance.
-
Multi-Format Audio Pass-Through & De-Embedding: Supports Dolby TrueHD, DTS-HD Master Audio, and more.
-
Bi-Directional Control: Includes configurable RS-232, Ethernet, and GPIO ports for robust device control.
-
Flexible Power Options: PoE PD support and external DC power inputs ensure versatile installation.
-
High Reliability: Fan or passive cooling and 3-year warranty ensure long-term performance in critical applications.
Ideal Applications:
-
Boardrooms
-
Conference Rooms
-
Government Meeting Spaces
-
Higher Education Classrooms
-
Houses of Worship
-
Multi-Purpose Collaboration Spaces
-
All-Hands Meeting Rooms
-
Corporate AV Installations
-
Commercial Video Distribution Systems
Competitive Advantages Over Similar Products:
-
Full USB-C Integration: Unlike many alternatives, Taurus TPX includes charging, AV, and USB data in one streamlined USB-C connection.
-
Simultaneous AV and USB Switching: Competing products often separate these functions; Taurus combines them for efficiency.
-
Extended Distance without Signal Loss: 100m signal extension with zero frame latency ensures real-time interaction.
-
Comprehensive Audio Handling: Pass-through and de-embedding support for compressed and uncompressed formats, including HDMI 2.0.
-
Rack Mountable and Compact Design: Steel enclosures with mounting accessories make it ideal for space-sensitive installs.
Side-by-Side Comparison Table
| Feature | Taurus TPX Bundle | Typical Competitor |
|---|---|---|
| USB-C with Charging | Yes, up to 100W | Often omitted or limited |
| Single-CAT Transmission | Yes (Video, Audio, USB, Control) | Video only or requires additional cabling |
| Max Video Resolution | 4096x2160@60Hz 4:4:4 | Typically 1080p or limited 4K |
| USB Device Support | Up to 8 (4 per end) | Usually fewer ports |
| Audio Format Support | Dolby TrueHD, DTS-HD MA, PCM | PCM only or no de-embedding |
| RS-232 and Ethernet Control | Yes, bi-directional | Often not available |
| PoE Compatibility | Yes (IEEE802.3af) | Rare in bundle products |
| Warranty | 3 Years | 1–2 Years typical |
Product Specifications Summary

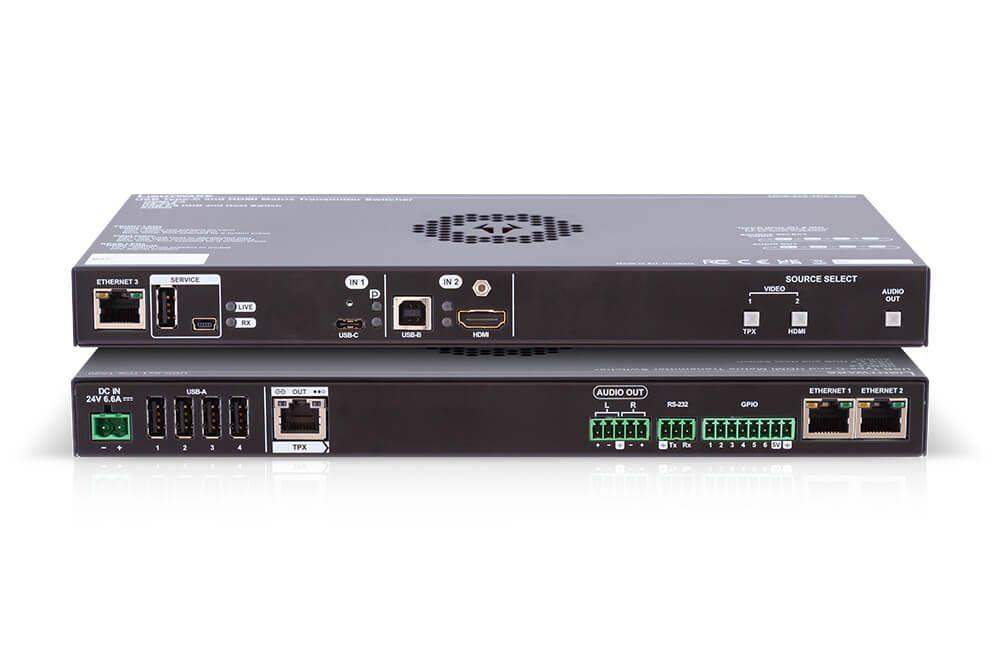

UCX-2x1-TPX-TX20
-
Inputs: HDMI, USB-C (DP 1.2a), USB 2.0
-
Outputs: HDMI, analog audio (Phoenix), USB, Ethernet, RS-232
-
Power: External 160W or 100–240V AC
-
Dimensions: 271 x 140.3 x 26 mm
-
Cooling: Active fan
HDMI-UCX-TPX-RX107
-
Outputs: HDMI, analog audio
-
Inputs: CAT (TPX RJ45), USB 2.0
-
Power: 12V DC / PoE
-
Dimensions: 151.8 x 104.9 x 26 mm
-
Cooling: Passive
