Lightware MX2M-4HDMI20-OB HDMI 2.0 Output Board - 91130053

Authorized Dealer

$3,547.50

Shipping calculated at checkout.

LightWare | SKU: 91130053

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

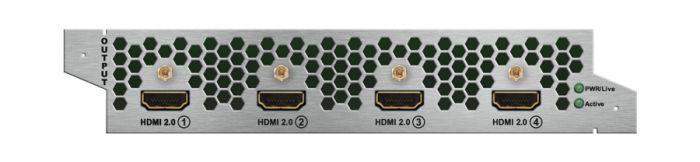

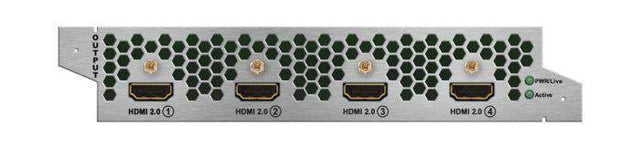

The MX2M-4HDMI20-OB is a HDMI 2.0 compatible output board for the MX2M modular matrix family. The hot-swappable output board has four HDMI connectors of type A, all with flange, allowing easy installation and operation on a wide range of applications where flexibility and versatility are key concerns.

Pass-through of embedded audio including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) and HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats.

Embedding of uncompressed (2-channel LPCM) and compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) formats from the Audio Layer into the output HDMI stream.

All outputs are HDMI 2.0 compliant and can pass HDMI signals with a pixel clock frequency of up to 600 MHz, allowing signal transmission with a maximum resolution of 4K UHD @ 60Hz 4:4:4.

The board can replace the audio in all four routed HDMI signals with compressed or LPCM audio streams from the audio layer.

Highlighted features

HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) from the connected source
Hot-swap support
HDMI 2.0, HDMI 1.x, and DVI compatible
CEC support (command injection)
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
No signal latency, zero frame delay

Specs

Video
Resolution	Up to UHD/4k@60Hz 4:4:4 (with support for extreme formats e.g 7kx1k by
Signal Type	HDMI 2.0, HDMI 1.x, DVI
Maximum data rate	18 Gbps
Maximum pixel clock	600 MHz
Content protections	HDCP 1.x, HDCP 2.2, HDCP 2.3
Connector type	4x HDMI receptacle type A with and without flange
Video processing	Signal parameter measurement
Standards	HDMI 2.0, HDMI 1.4, DVI

Audio
Audio mode		Simultaneous pass-through and de-embedding to the Audio layer
Supported audio formats for pass-through		All HDMI2.0 audio formats
Supported audio formats for de-embedding	Uncompressed	LPCM (up to 8 channels, 192 kHz, 24 bits per sample)
	Compressed	MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digtal, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES
	Compressed HBR	-

General
Powering		via MX2M frame
Power consumption (max)		11 W
Thermal dissipation (max)		37,5 BTU/hr
Weight		TBD
Operating conditions	Ambient temperature	0-50^oC
	Relative humidity	0-90% (non-condensing)
Transportation conditions	Ambient temperature	-20-70^oC
	Relative humidity	0-95% (non-condensing)
Complience		EN 55032:2015 IEC 61000-3-3:2013+AMD1:2017 IEC 61000-3-2:2018 FCC CFR Title 47, Part 15, Subpart B
Warranty		3 years
