Description

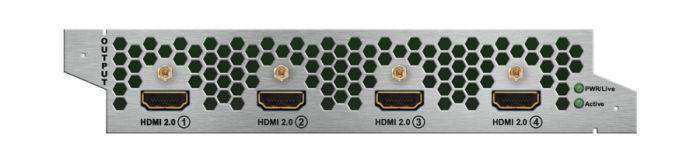

The MX2M-4HDMI20-OB is a HDMI 2.0 compatible output board for the MX2M modular matrix family. The hot-swappable output board has four HDMI connectors of type A, all with flange, allowing easy installation and operation on a wide range of applications where flexibility and versatility are key concerns.

Pass-through of embedded audio including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) and HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats.

Embedding of uncompressed (2-channel LPCM) and compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES) formats from the Audio Layer into the output HDMI stream.

All outputs are HDMI 2.0 compliant and can pass HDMI signals with a pixel clock frequency of up to 600 MHz, allowing signal transmission with a maximum resolution of 4K UHD @ 60Hz 4:4:4.

The board can replace the audio in all four routed HDMI signals with compressed or LPCM audio streams from the audio layer.

Highlighted features

  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) from the connected source
  • Hot-swap support
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • CEC support (command injection)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • No signal latency, zero frame delay
Video
Resolution Up to UHD/4k@60Hz 4:4:4 (with support for extreme formats e.g 7kx1k by
Signal Type HDMI 2.0, HDMI 1.x, DVI
Maximum data rate 18 Gbps
Maximum pixel clock 600 MHz
Content protections HDCP 1.x, HDCP 2.2, HDCP 2.3
Connector type 4x HDMI receptacle type A with and without flange
Video processing Signal parameter measurement
Standards HDMI 2.0, HDMI 1.4, DVI
Audio
Audio mode Simultaneous pass-through and de-embedding to the Audio layer
Supported audio formats for pass-through All HDMI2.0 audio formats
Supported audio formats for de-embedding Uncompressed LPCM (up to 8 channels, 192 kHz, 24 bits per sample)
Compressed MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digtal, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES
Compressed HBR  -
General
Powering via MX2M frame
Power consumption (max) 11 W
Thermal dissipation (max) 37,5 BTU/hr
Weight TBD
Operating conditions Ambient temperature 0-50oC
Relative humidity 0-90% (non-condensing)
Transportation conditions Ambient temperature -20-70oC
Relative humidity 0-95% (non-condensing)
Complience EN 55032:2015
IEC 61000-3-3:2013+AMD1:2017
IEC 61000-3-2:2018
FCC CFR Title 47, Part 15, Subpart B
Warranty 3 years
