Lightware MX2-48x48-HDMI20-A-R MX2 Series HDMI 2.0 Compatible Matrix Router - 91310065

Authorized Dealer

$92,383.50

Shipping calculated at checkout.

LightWare | SKU: 91310065

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

MX2-48x48-HDMI20-A-R is a member of the MX2 standalone matrix switcher series supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:0. These routers are fully HDMI 2.0 compatible. The switchers have outstanding port density making them particularly suitable for fix-install applications and for future-proof operation centers alike: for installations where a huge number of HDMI 2.0 compliant input and output ports are required.

This standalone product has 48x48 HDMI 2.0 I/O ports, supporting 3D, Dolby TrueHD and DTS-HD Master Audio and also HDR 10, HDR12 and Dolby Vision. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management are included and can be controlled via the built-in website.

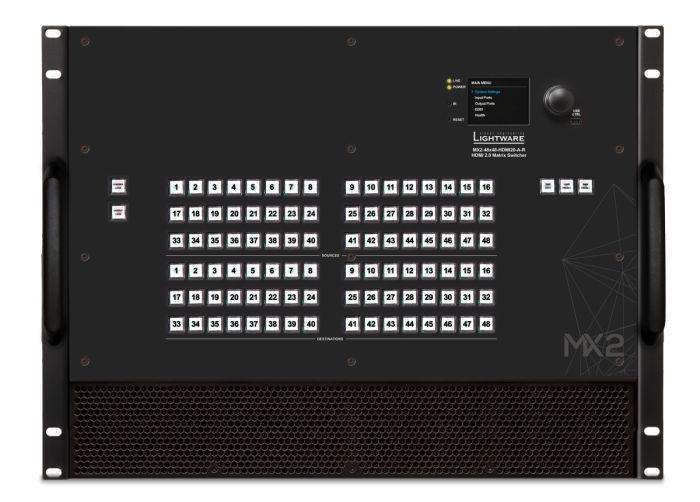

MX2-48x48-HDMI20-A-R is an audio enhanced variant allowing embedding audio to, and de-embedding audio from the HDMI stream at 16x dedicated analog audio I/O ports. In lack of the direct selection buttons on the front panel, all crosspoint switching functions are available via the rotary jog dial button and the color display on the front panel.

This matrix switcher is R Type version with redundant and reinforced AC mains connectors, rugged RS-232 and Ethernet ports, designed for high operation stress environments.

Highlighted features

HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Low Latency Dolby Vision support
High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
No signal latency, zero frame delay

Specs

Specification
Speed	18 Gbps per port
Resolution	Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock)
Height	8RU
Mounting	Rack mountable, removable rack ears

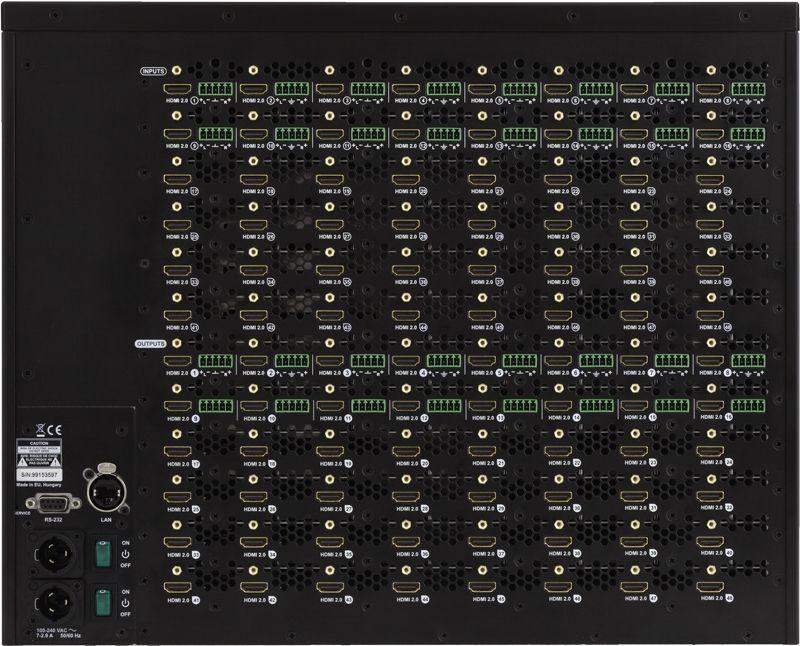

Connectors
Video inputs:	48 x HDMI 2.0
Video outputs:	48 x HDMI 2.0
Audio inputs	16 x Phoenix at ports 1-16
Audio outputs	16 x Phoenix at ports 1-16
Power	2x Neutrik Powercon True1, 110/220V
Serial control	D-sub 9-pole
Ethernet Neutrik	Ethercon
USB	Mini USB B
