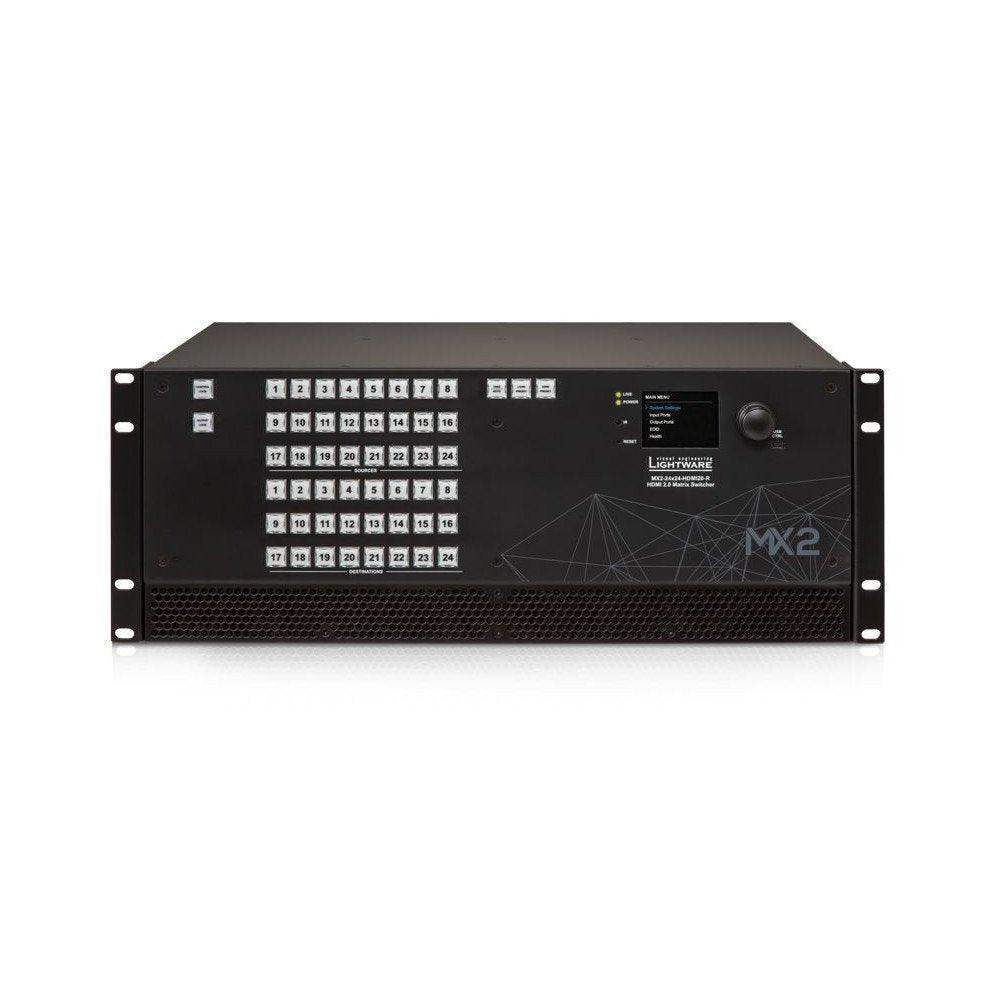

Lightware MX2-24x24-HDMI20-R standalone matrix switcher - 91310056

Authorized Dealer

$45,375.00

Shipping calculated at checkout.

LightWare | SKU: 91310056

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

MX2-24x24-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.This device has an R type designation signifying a dual redundant power source with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports.

It has a huge number of input and output ports resulting in outstanding port density that makes it particularly suitable for rental and fix-install applications and for future-proof operation centres. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant input and output ports are required.

This standalone product has 24 HDMI2.0 inputs and 24 HDMI2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

Features

Front to back cooling airflow
Built-in universal power supply
HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
HDCP enable/disable function on input
Vista Spyder and Barco Encore compatibility
Multiple TCP/IP connections
Advanced EDID Management
Save and reload full crosspoint configurations as preset
Front panel LCD menu and buttons for crosspoint control
Intuitive control software for device configuration
Device control via Ethernet (TCP/IP), RS-232 and USB
CEC support (command injection)
Fully non-blocking switching architecture
Built-in website for device configuration
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
HDR and Dolby Vision support
Pixel Accurate Reclocking
No video compression
Redundant power supplies available
Firmware upgrade through Ethernet
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
No signal latency, zero frame delay

Specs

Routing	24 input to 24 output, non blocking architecture
Speed	18 Gbps per port
Resolution	Up to 4096x2160@60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock)
Height	4RU
Mounting	Rack mountable, removable rack ears

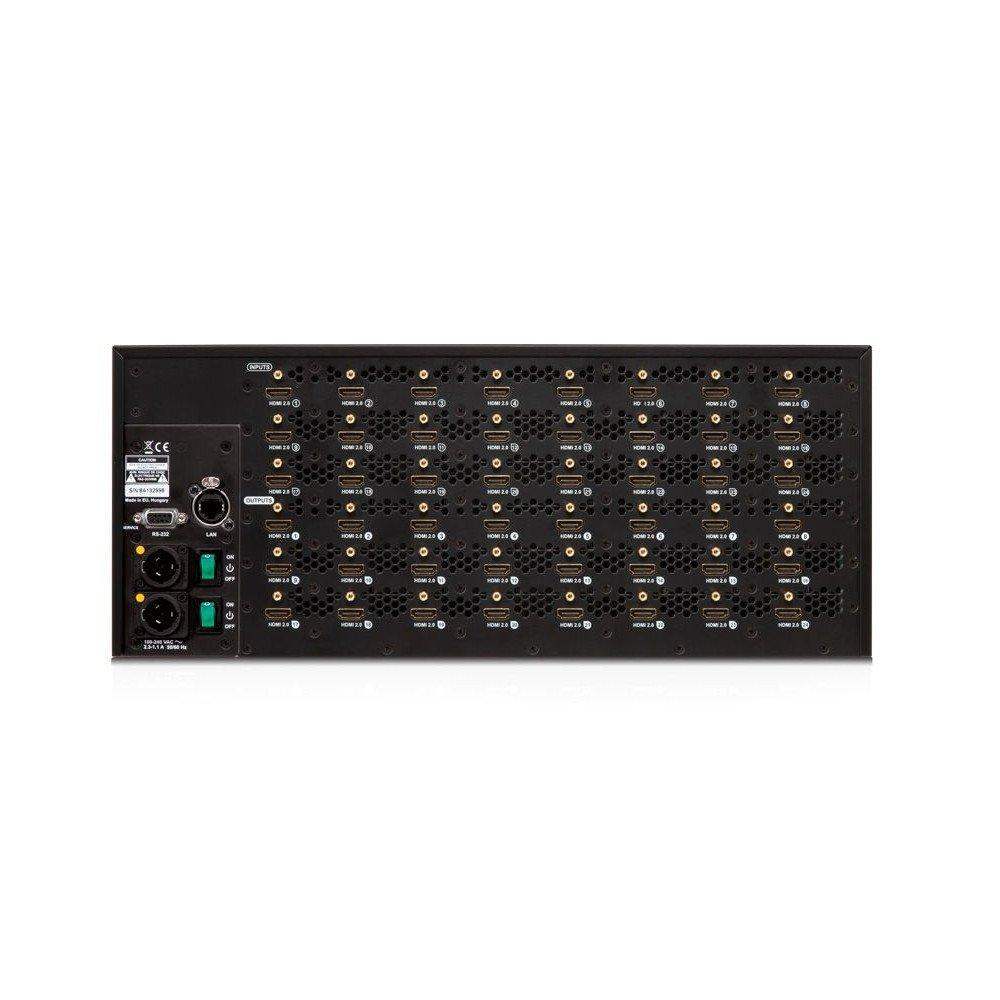

CONNECTORS
Power	2x Neutrik Powercon True1, 110/220V
Video inputs	19-pole HDMI 2.0
Video outputs	19-pole HDMI 2.0
Serial control	D-sub 9-pole
Ethernet	Neutrik Ethercon
USB	Mini USB B
