Lightware MX2-16x16-HDMI20-Audio-R HDMI 2.0 standalone matrix switcher - 91310054

Authorized Dealer

$34,320.00

Shipping calculated at checkout.

LightWare | SKU: 91310054

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The MX2-16x16-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4. This device has an R type designation signifying a dual redundant power source with two, independent, rugged power

Highlighted features

HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
Supports HDMI 4K signal formats (4K UHD

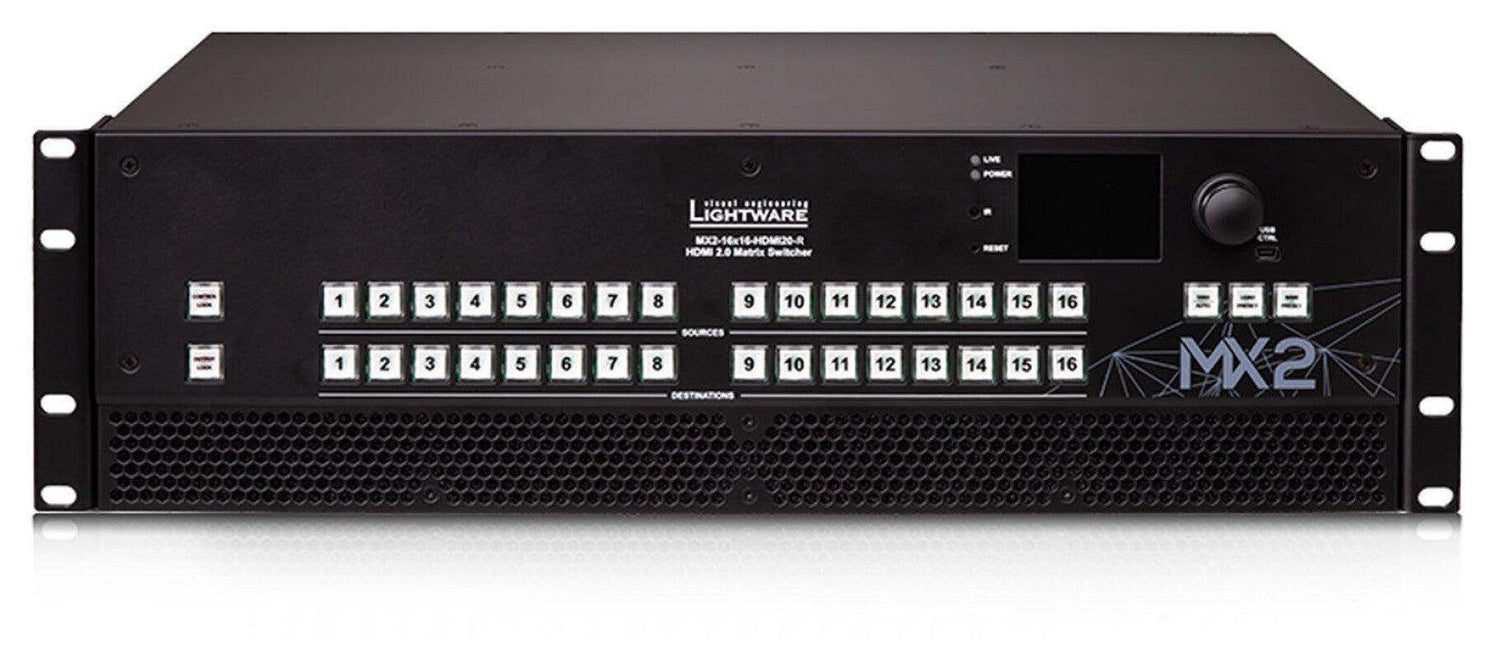

The MX2-16x16-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4. This device has an R type designation signifying a dual redundant power source with two, independent, rugged power connectors and reinforced RS-232 and Ethernet ports
It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well as for future-proof operation centers. It is a perfect choice for installations where at most 16 HDMI 2.0 compliant input and output ports are required.

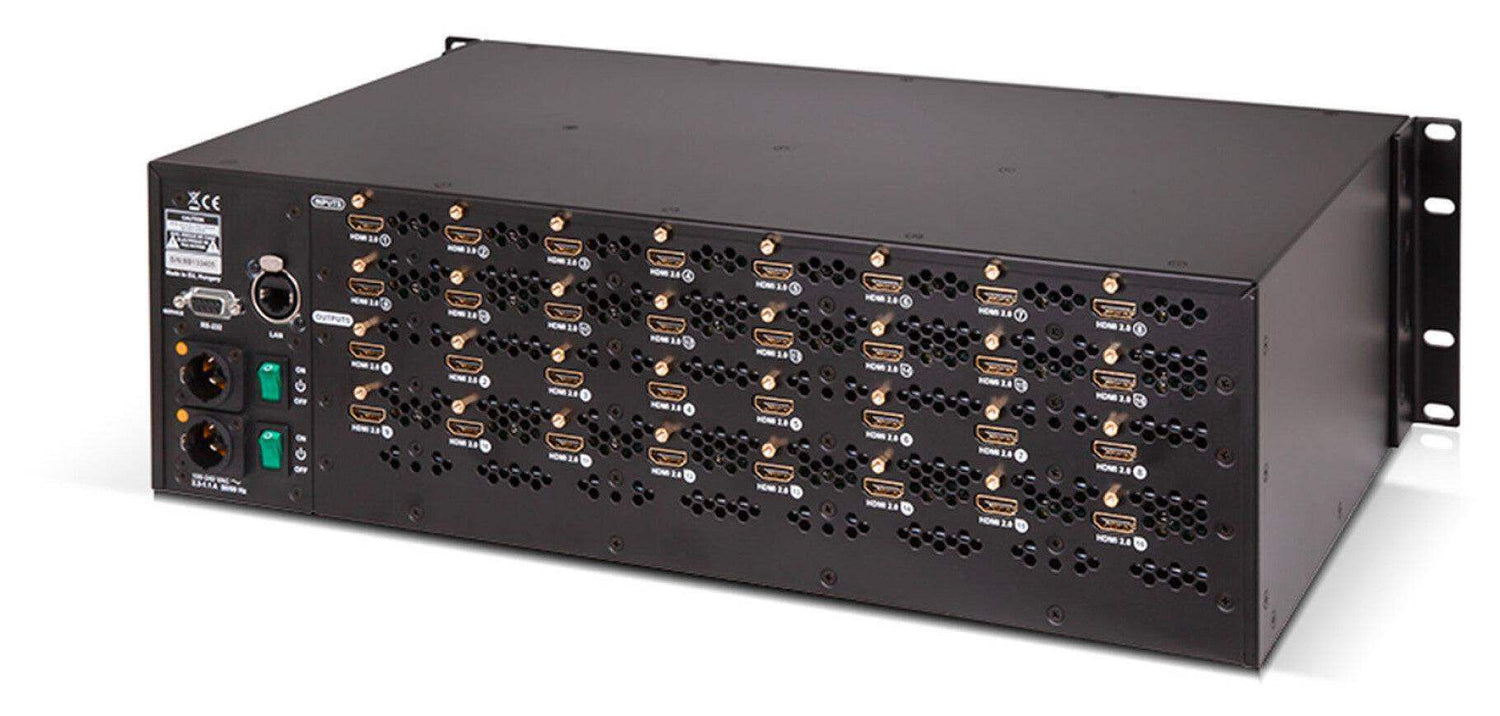

This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

Specs

Brand: Lightware
Product: MX2-16X16-HDMI20-R
Product Category: Matrices & Switchers
# of Inputs: 16
# of Outputs: 16
Audio Input: HDMI Embedded
Audio Output: HDMI Embedded
Audio support: Yes
Control type: ButtonsRotary
Display type: LCD
EDID management: Yes
External power adapter: No
Features: 3D (HDMI1.4a)4K SupportDTS-HD Master AudioDolby TrueHDDolby Vision supportFreeSync SupportHDCPHDR SupportLCD ScreenPowerCON Power SupplyRackmountable
Firmware upgradeable: Yes
Form factor: RackmountableTabletop
HDCP: Yes
HDCP version: 1.4/2.2
HDMI in: 16
HDMI ports quantity: 32
HDMI version: 2.0
High Dynamic Range (HDR) supported: Yes
Housing colour: Black
Material: Metal
Maximum resolution (pixels): 4096 x 2160
Mounting kit: Y
Number of HDMI outputs: 16
Power over Ethernet (PoE): No
Product colour: Black
RJ-45 ports quantity: 1
Rack capacity: 3U
Rack mounting: Yes
Supported video modes: 4K/60p 4:4:4
Video Input: HDMI 2.0
Video Output: HDMI 2.0
Video port type: HDMI
Video ports quantity: 32
