Lightware MX-HDMI-OPT-OB-R-LC MX HDMI Optical Output Board with Rec...

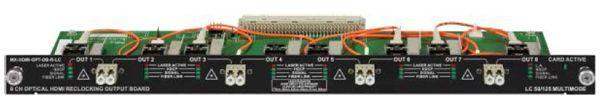

MX-HDMI-OPT-OB-R is an eight channel, Multimode optical output board, providing HDMI 1.4, audio and RS-232 extension over a single Multimode fiber up to range of 2500m. Pixel Accurate Reclocking, HDCP compliance and HDMI to DVI conversion are all incorporated. Resolutions up to 4K and 36-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals.
Along the video and audio extension the unit provides a bi-directional RS-232 option for remote controlling external devices like projectors or professional media players.
The video signals with the HDCP, EDID handshaking data and the RS-232 channel traffic are performed over one Multimode fiber, utilizing our Single Fiber Technology. The board is compatible with Dolby TrueHD and DTS-HD audio while the proprietary Pixel Accurate Reclocking, Advanced EDID Management, Frame detector and built-in test pattern generator are integrated. The board is available with Neutrik OpticalCON, -LC or -SC connectors.
Compatible products
| Receivers: | |
| DVI-OPT-RX110 (DVI only, without HDCP and RS-232) | HDMI-OPT-RX200R (up to 1080p60 36bpp) |
| DVI-OPT-RX220-Pro (DVI only, without HDCP and RS-232) | HDMI-3D-OPT-RX150RA (up to 4K) |
| HDMI-OPT-RX100 (up to 1080p60 36bpp, without RS-232) | MX-HDMI-OPT-IB (up to 4K) |
| HDMI-OPT-RX100R (up to 1080p60 36bpp) | 25G-MX-HDMI-OPT-IB |
Features
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Extends HDMI and RS-232 signals over one multimode fiber cable with built-in converters
- Frame Detector (analyze detailed video timings)
- Status LEDs (laser active, fiber link, signal and HDCP detect)
- Extension distance up to 2500 meters (with OM3 fiber, 1920x1080p60)
- Cross compatible with OPT series Lightware fiber extenders and I/O boards
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Advanced EDID Management
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
- Pixel Accurate Reclocking
- No video compression
- Bi-directional RS-232 extension (pass-through)
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- Bi-directional RS-232 extension (pass-through and control)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Built-in video test pattern generator
- No signal latency, zero frame delay
Specs
| Specifications | |
| HDCP compliancy: | Yes |
| RS232 passthrough: | 9600, 19200, 38400, 57600, 115200 baud/s; 8-N-1 (max. 60 bytes/message) |
| 3D signal compatibility: | Frame packing, side-by-side, top-bottom |
| Power consumption (3.3 V) (all connector type): |
1.4 A (typ.), 1.5 A (max.) |
| Power consumption (5 V) (all connector type): |
0.9 A (typ.), 1.5 A (max.) |
| Calculated AC Power (W) (all connector type): |
9.2 W (typ.), 12.5 W (max.) |
| Heat dissipation (BTU/h) (all connector type): |
32 BTU/h (typ.), 43 BTU/h (max.) |
| Weight MX-HDMI-OPT-OB-R: | 1350 g |
| Output connectors: | LC |
| Optical wavelengths: | 778 nm, 800nm, 825nm, 850nm, 911nm, 980 nm |
| Maximum extension distances | ||||
| OM1 (62.5/125) | OM2 (50/125) | OM3 (50/125) | OM4 (50/125) | |
| 1920x1080p@60Hz 24 bpp | 250 m | 600 m | 1200 m | 2500 m |
| 1920x1080p@60Hz 36 bpp | 150 m | 400 m | 800 m | 1300 m |
| 4096x2048@30Hz 24bpp | Not supported | 350 m | 700 m | 1100 m |
