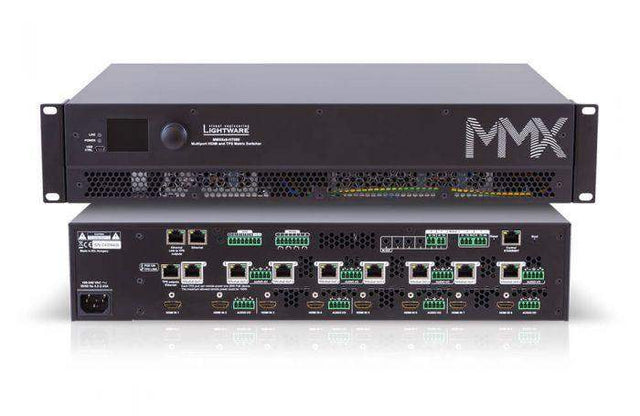

Lightware MMX8x8-HT080 HDMI and TPS Matrix Switcher with Special Au...
MMX8x8-HT080 is a standalone matrix switcher specifically designed for conference room environments. It has eight HDMI inputs with eight TPS2 outputs. 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D capabilities and HDCP are fully supported.
The device also has eight balanced 5-pole Phoenix audio connectors at four of the inputs, four of the outputs.
The audio signal direction of the port can be changed with the Lightware Device Controller software, so these audio ports can be either input or output ports.
PoE 48V remote powering is available on every output TPS2 ports for cost-effective installations.
MMX8x8-HT080 receives and transmits digital video, audio and control to a distance of up to 170m over a single CAT6 cable. Using factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit can be controlled via RS-232, Ethernet or USB ports, but it also offers Ethernet, RS-232, Serial and IR command injection capabilities, allowing to send any control command directly from the LAN connection to remote end points.
The built-in Event Manager feature provides control via RS-232, IR, Ethernet, Relay and GPIO ports. The MMX8x8-HT080 is compatible with both HDBaseTTM extenders and HDBaseTTM compliant displays.
Highlighted features
- Extends DVI or HDMI 1.4 + Ethernet + RS-232 + IR over one CAT5/6/7 cable
- Built-in PoE injector* for remote powering extenders
- Balanced analog audio output for audio de-embedding
- Audio embedding and de-embedding
- Built-in Event Manager control automation feature
Specs
|
Features and Services |
|
|
4K / UHD (30Hz RGB 4:4:4 60Hz YCbCr 4:2:0) and 3D capabilities |
Yes |
|
HDMI input ports |
8x |
|
TPS2 (HDBaseT) output ports |
8x |
|
Up to 170 m transmission over TPS Long Reach Mode for Full HD signals |
Yes |
|
Balanced bi-directional analog audio ports |
8x |
|
Ethernet port for device control |
1x |
|
Ethernet ports for external device control |
2x |
|
Ethernet via TPS2 |
Yes |
|
Bi-directional RS-232 ports |
2x |
|
Serial/IR ports for display control |
2x |
|
IR ports for display control |
4x |
|
Relay output ports |
4x |
|
GPIO port |
6x GPIO + 5V + GND |
|
PoE function to feed remote power to connected devices |
Yes |
|
Front panel LCD and jog dial button |
Yes |
|
Event Manager built-in control feature |
Yes |
|
Power consumption (max) |
108W |
|
Maximum Extension Distances: |
|||||
|
Resolution |
Pixel clock rate |
Cable lengths (Auto / Long reach TPS mode) |
|||
|
CAT5e AWG24 |
CAT7 AWG26 |
CAT7 AWG23 |
|||
|
1024x768@60Hz |
65 MHz |
100 m / 130 m* |
90 m / 120 m* |
120 m / 170 m* |
|
|
1280x720p@60Hz |
73.8 MHz |
100 m / 130 m* |
90 m / 120 m* |
120 m / 170 m* |
|
|
1920x1080p@60Hz (24bpp) |
148.5 MHz |
100 m / 130 m* |
90 m / 120 m* |
120 m / 170 m* |
|
|
1920x1200@60Hz |
152.9 MHz |
100 m / NA |
90 m / NA |
120 m / NA |
|
|
1600x1200@60Hz |
162 MHz |
100 m / NA |
90 m / NA |
120 m / NA |
|
|
1920x1080@60Hz (36bpp) |
223 MHz |
70 m / NA |
70 m / NA |
100 m / NA |
|
|
3840x2160@30Hz UHD |
297 MHz |
70 m / NA |
70 m / NA |
100 m / NA |
|
|
4096x2160@30Hz 4K |
297 MHz |
70 m / NA |
70 m / NA |
100 m / NA |
|
*Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.
To specify the accurate extension distances, please also check the documentation of the connected HDBaseT-compatible device.
CAT7 SFTPAWG23 cable is always recommended.
