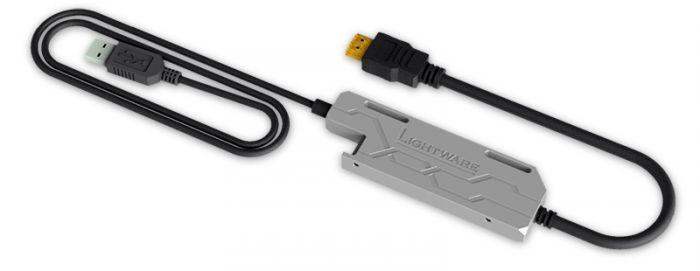

Lightware HDMI20-OPTJ-TX90 Full 4K HDMI 2.0 Compatible Fiber Optical Extender - 91570002
Lightware HDMI20-OPTJ-TX90 Full 4K HDMI 2.0 Compatible Fiber Optical Extender - 91570002 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware HDMI20-OPTJ-TX90 Full 4K HDMI 2.0 Compatible Fiber Optica...
Full 4K HDMI 2.0 Compatible Fiber Optical Extender
The HDMI20-OPTJ-TX90 and HDMI20-OPTJ-RX90 are HDMI 2.0 compatible optical fiber extenders. These units transfer uncompressed HDMI 2.0 class 4K signals with embedded audio to up to 600m or a FullHD signal up to 2500m distance over one MultiMode fiber cable.
Highlighted features
- Single Fiber Technology
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Solid machined aluminum body
Specs
| Specifications | |
| Data rate: | 18 Gbps (6 Gbps per color) |
| Resolution: | Up to 4K@60Hz with RGB 4:4:4 |
| Video delay: | 0 frames |
| Maximum Extension Distance (Cable: OM4): | 600 m (Resolution: 4K@60Hz with RGB 4:4:4) |
| HDCP 2.2 and 1.4pass through: | Yes |
| EDID emulation: | Transparent EDID |
| HDR Modes: | HDR 10, HDR 12 and Dolby Vision |
| RS-232 pass through: | No |
| Micro-USB B cable: | Power Feed and Firmware Upgrade |
| Cooling: | Passive |
| Power consumptionTX (1080p60 / 4K60): | 1,5 W / 2W |
| Power consumptionRX (1080p60 / 4K60): | 0,8 W / 1W |
| Operating temperature: | 0 to +50°C (+32 to +122°F) |
| Storage temperature: | -40 to +85°C (-38 to +185°F) |
| Operating humidity: | 10% to 90%, non condensing |
| Material: | Aluminium |
| Enclosure dimension: | 110,5 W x 35,5 D x 11x4 H (mm) |
| Weight: | 130 g |
| Rack mountable: | Yes, with 1U high rack shelf |
| Lenght of pigtail HDMI cable: | 800 mm |
| Lenght of pigtail USB cable: | 1000 mm |
| Warranty: | 3 years |
| Fiber Optical Port | |
| Connector type: | SC simplex receptacle |
| Laser wavelenghts: |
HSL: 780, 800, 825, 850 nm; LSL: 910, 980 nm |
| Laser class specification: | Class 1 (if enclosure removed: Class 3R) |
| Complience: | IEC/EN 60825-1:2014-05 Ed. 3.021CFR Subchapter J Pearts 1040.40 and 1040.11 |
| HDMI Port | |
| Connector type: | 19-pole HDMI Type A plug |
| Standard: | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| Color space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2,YCbCr 4:2:0 |
| Maximum resolution: | 3840x2160@60 Hz36 bit deep color support |
| HDCP compliency: | HDCP 1.4 and HDCP 2.2 |
| Power | |
| Power supply (TX): | External power adaptor / USB / HDMI |
| Power supply (RX): | External power adaptor / USB |
| Power adaptor (In): | 100-240 V AC 50/60 Hz |
| Power adaptor (Out): | 5V DC, 1 A |
| Power connector: | USB-A plug |
| User Interface | |
| Status LED: | Power, Video and HDCP Status feedback |
| Maximum extension distances | |||||
| Pixel clock | OM1 | OM2 | OM3 | OM4 | |
| (62.5/125) | (50/125) | (50/125) | (50/125) | ||
| 1280x720p60 | 74 Mhz | 800 m | 1000 m | 2500 m | 2500 m |
| 1920x1080p60 | 148.5 MHz | 500 m | 1000 m | 2500 m | 2500 m |
|
3840x2160p30 (4k30 4:4:4) |
297 MHz | 200 m | 600 m | 1500 m | 1500 m |
| 3840x2160p60 (4k60 4:4:4) 4096x2160p60 (DCI 4K60) |
594 MHz | Not supported | 300 m | 600 m | 600 m |
