Lightware HDMI20-OPTC-TX220-PRO HDMI 2.0 Full 4K Fiber Optical Exte...

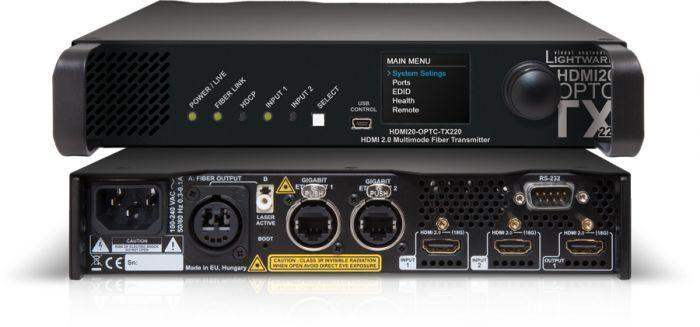

HDMI 2.0 Full 4K Fiber Optical Extender with Gigabit Ethernet
The HDMI20-OPTC-TX/RX220-Pro is a HDMI 2.0 compatible extender pair for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. Video and Ethernet signals are transferred over a single optical line.
Highlighted features
- Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
- Single Fiber Technology
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Advanced EDID Management
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Built-in universal power supply
Specs
|
Device |
Optical Connectors |
Power Inlet |
Ethernet |
HDMI Ports |
Serial port |
USB |
|
HDMI20-OPTC-TX/RX220-Pro |
1x Neutrik OpticalCON DUO |
IEC 60320-C14 |
2x EtherCON for Gigabit Ethernet (control & pass-through) |
TX: 2x HDMI 2.0 input (18G) and 1x HDMI 2.0 output (18G) RX: 2x HDMI 2.0 output (18G) and 1x HDMI 2.0 output (9G) |
D-SUB 9 male (DE-9M) for RS-232 (control or pass-through) |
Mini USB B |
|
HDMI20-OPTC-TX/RX220-NTQ |
1x Neutrik OpticalCON Quad |
|||||
|
HDMI20-OPTC-TX/RX220-FOX |
1x Fiberfox |
|||||
|
HDMI20-OPTC-TX/RX220-PCN |
1x Neutrik OpticalCON DUO |
Neutrik Powercon True1 |
|
Specifications |
|
|
Max Video Data rate |
18 Gbps |
|
Max Resolution |
Up to 4K UHD 3840×2160@60Hz |
|
Video delay |
0 frames |
|
HDR Modes |
HDR 10, HDR 12 and Dolby Vision |
|
HDCP |
HDCP 2.2 compliant |
|
EDID emulation |
Advanced EDID Management |
|
EDID memory |
Factory preset and user-programmable |
|
EDID support |
256 byte Extended EDID |
|
Front panel control |
Jog Dial and select button on TX |
|
Visual feedback on TX and RX units |
LCD menu for EDID setup and status check on TX. |
|
TX status LEDS |
POWER/LIVE |
|
RX status LEDs |
POWER/LIVE |
|
RS-232 pass through |
Bi-directional 9.6, 14.4, 19.2, 38.4, 57.6 kBauds |
|
Fiber |
LC duplex, LC simplex for channel breakout |
|
Laser wavelengths |
6 channel CWDM |
|
High speed lanes |
778; 801; 824; 850 nm |
|
Low speed lanes |
911; 980 nm |
|
Laser class specification |
Class 3R |
|
Power supply |
Internal AC/DC power supply |
|
Enclosure |
bottom and back 1 mm metal, top and front 1,5 mm metal |
|
Dimensions |
1RU height x ½ rack width |
|
Compliance |
CE |
|
Warranty |
3 years |
|
Maximum Extension Distances |
|||||
|
Resolution |
Pixel Clock |
OM1 |
OM2 |
OM3 |
OM4
|
|
1280x720p60 |
74 Mhz |
800 m |
1000 m |
2500 m |
2500 m |
|
1920x1080p60 |
148.5 MHz |
500 m |
1000 m |
2500 m |
2500 m
|
|
3840x2160p30 (4k30 4:4:4) 3840x2160p60 (4k60 4:2:0) |
297 MHz |
200 m |
600 m |
1500 m |
1500 m
|
|
3840x2160p60 (4k60 4:4:4) 4096x2160p60 (DCI 4K60) |
594 MHz |
Not supported |
300 m |
700 m |
700 m |
