Lightware HDMI-TPS-TX226 TPS Extender with DC 12V Remote Power - 91540080
Lightware HDMI-TPS-TX226 TPS Extender with DC 12V Remote Power - 91540080 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware HDMI-TPS-TX226 TPS Extender with DC 12V Remote Power - 91...
The HDMI-TPS-TX226 is an all-round video, audio and control transmitter transferring over a single CAT cable up to a range of 170 meters dynamic and fixed environments such as small board rooms and classrooms, with remote power capabilities via DC 12V up to 30 meters to further simplify the AV system design, integration and operation.
The extender was designed to handle HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI embedded audio up to 8 Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local video output. The video and the embedded audio of the local output is the same as transmitted via TPS link.
The HDMI-TPS-TX226 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission.
Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT5e or better cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. HDMI-TPS-TX226 is compatible with both the HDBaseT extenders and matrix switchers.
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control rooms
- Home cinemas
Compatible products
- MX Series matrix frames with MX-TPS-IB
- DVI-HDCP-TPS-RX95
- HDMI-TPS-RX95
- HDMI-TPS-RX96
- DVI-HDCP-TPS-RX96
Features
- Built-in Event Manager control automation feature
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- HDCP enable/disable function on input
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- No signal latency, zero frame delay
- TPS link quality and cable length monitoring
- Adjustable analog audio settings (volume, gain, balance)
- Audio embedding (or replace original audio)
- Dual output with built-in distribution amplifier
- Firmware upgrade through Ethernet
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- Advanced EDID Management
- Pixel Accurate Reclocking
- Command injection on RS-232 and IR ports
- GPIO control ports
- Device control via Ethernet (TCP/IP) and RS-232
- Multiple TCP/IP connections
- Intuitive control software for device configuration
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
- No video compression
- Built-in video test pattern generator
- Bi-directional RS-232 and IR extension (pass-through)
- Bi-directional RS-232 and IR extension (pass-through and control)
- Twist-and-lock DC power connector
- Frame Detector (analyze detailed video timings)
- Local or remote (remote-send / remote-receive) power source
- External universal power adaptor
- 3,5mm audio jack input
- Mounting options for rack, furniture or truss
Specs
| Specifications | |
| Resolution: | Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: | Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization: | Automatic max 20 m |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 15 user programmable |
| HDCP pass-through: | Yes |
| RS-232 pass-through: | Yes, configurable |
| RS-232 (control option): | 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (through CATx)(default: 57600) |
| Local power: | Universal power adaptor, DC 12V 2.5A |
| Power over TPS: | DC 12V |
| Power consumption: | 8,5W (typ) |
| Enclosure: | 1 mm metal |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Compliance: | CE |
| Warranty: | 3 years |

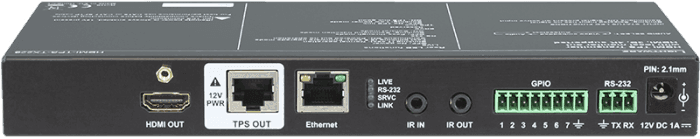

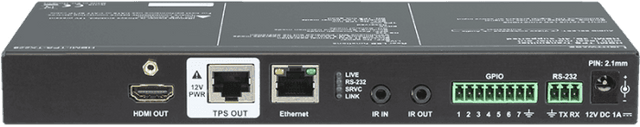

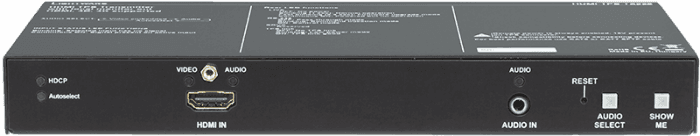

| Connectors | |
| Digital video input: | HDMI connector |
| Digital video output: | HDMI connector |
| Audio input: | 3.5 mm stereo jack |
| Ethernet: | 1 x RJ45 |
| GPIO: | 8-pole PHOENIX |
| IR: | 3.5 mm jack |
| TPS output: | 1 x RJ45 |
| Serial port: | 3-pole PHOENIX |
| Power: | Locking DC connector (2.1 / 5.5 mm) |
| Max cable lengths with the available firmware versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
