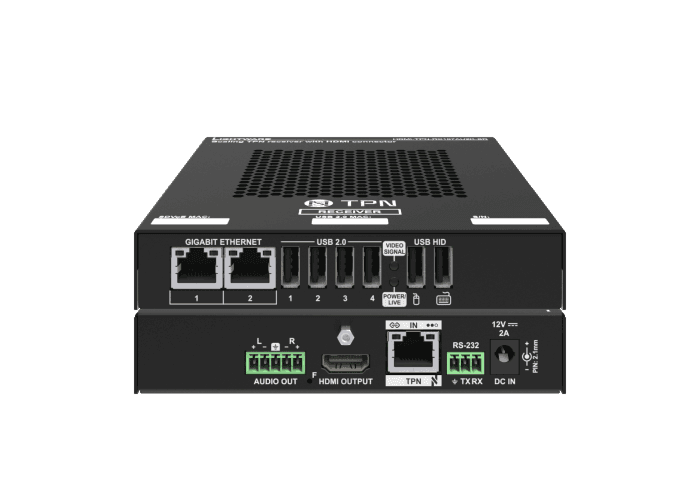

Lightware HDMI-TPN-RX107AU2K-SR SDVoE compatible HDMI 2.0 scaling receiver - 91710007
Regular price
$2,425.50
Unit price
/
Unavailable
Shipping calculated at checkout.
LightWare | SKU:
91710007
Lightware HDMI-TPN-RX107AU2K-SR SDVoE compatible HDMI 2.0 scaling receiver - 91710007 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware HDMI-TPN-RX107AU2K-SR SDVoE compatible HDMI 2.0 scaling r...
Regular price
$2,425.50
Unit price
/
Unavailable
The HDMI-TPN-RX107AU2K-SR scaling receiver device is based on SDVoE technology. When installed in a networked environment with corresponding TPN transmitters or SDVoE- compatible third-party TX units, the HDMI-TPN-RX107AU2K-SR allows users to receive HDMI 2.0 compliant video, audio and control signals from compatible transmitters through 10G Ethernet networks. Moreover, this USB2.0 capable extender also allows transparent and composite USB2.0 transmission in the opposite direction.
Features
- Plug&Play compatible with Lightware TPX devices
- Transparent USB transmission (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission (for USB-HID devices) when connected to USB2.0 comlpiant extenders (e.g. HDMI-TPN-TX207AU2K or USB20-1GBE-HS10
- By utilising rescaling, provides fast and seamless switching (with appropriate HDCP and signal format settings)
- Allows for the reception of HDMI 2.0, embedded audio, Ethernet, and RS-232 from compatible TPN transmitters through a 10G Ethernet switch
- HDR and Low Latency Dolby Vision support when no scaling is applied
- Supports rescaling either to the EDID of the connected display, or to custom resolutions
- Can be remote powered through CATx cable (PoE PD)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
Specs
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | TBD |
| Heat dissipation | TBD |
| Power over Ethernet (PoE) | via TPX input (IEEE802.3af) (can receive power) |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 138 W x 151.8 D x 26 H |
| Dimensions in inch | 5.43 W x 5.98 D x 1.02 H |
| Weight | TBD kg |
| Video Inputs | |
| TPX Input | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE (point-to-point) |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. | |
| Video Outputs | |
| HDMI Output | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Scaling | Scaling to EDID preferred resoltion or custom resolution with the following limitations: * When scaling is used, the scaler output is always RGB 8 bit/component. * A picture with resolution of 3840 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, or 1200 x 1600 when the aspect ratio is kept by utilizing letterbox. * A picture with resolution of 4096 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, 1200 x 1600, 1280 x 768, 1680 x 1050, or 1900x1200 when the aspect ratio is kept by utilizing letterbox. |
| * All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported. | |
| Audio Ports | |
| Analog Audio Output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| USB port | |
| Connector type | 2x USB-A female (device, composite mode) |
| USB compliance | USB2.0 |
| Device class | HID |
| Powering | Max 0.325A@5V (total) |
| USB port | |
| Connector type | 4x USB-A female (device, transparent mode) |
| USB compliance | USB2.0 |
| Device class | Audio, Video, Mass Storage, HID, HUB, Smart Card, Vendor specific |
| Powering | Max 1.08A@5V (per port), Max 1.75A@5V (total) |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
