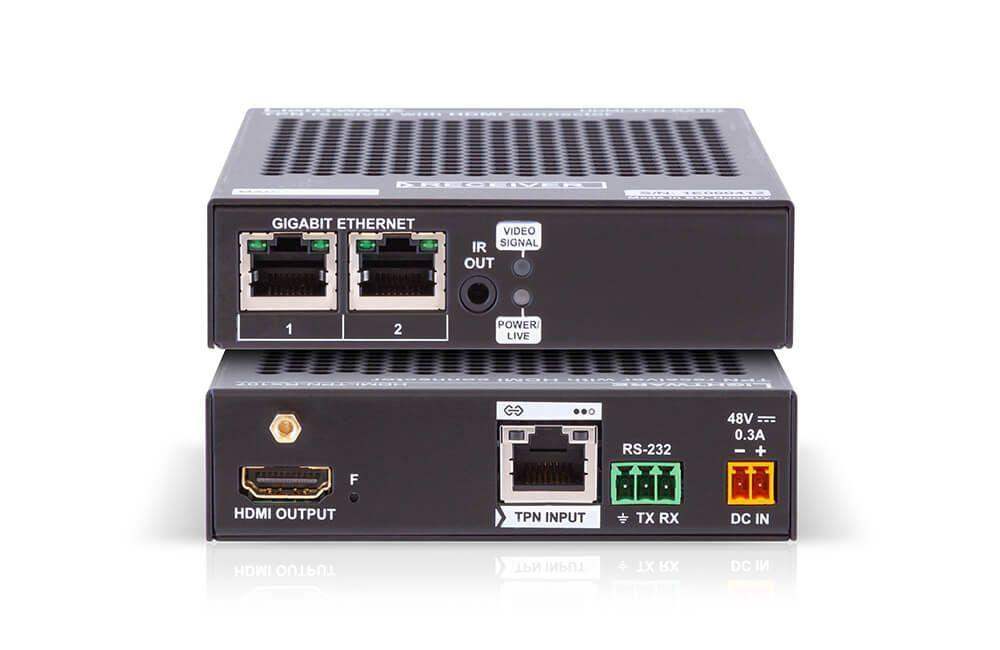

Lightware HDMI-TPN-RX107 SDVoE compatible HDMI 2.0 receiver - 91710004
SDVoE compatible receiver for recieving HDMI 2.0 + RS-232 + bidirectional IR, over 10G copper network cable. HDCP, 3D and 4K / UHD ( 60Hz RGB 4:4:4 , 60Hz YCbCr 4:4:4) compliant with HDR support
Features
- Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple receiver devices through a 10G Ethernet switch
- Plug&Play compatible with Lightware TPX devices
- Can be remote powered through CATx cable (PoE PD)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
Specs
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | TBD |
| Power consumption (min) | |
| Heat dissipation | TBD |
| Power over Ethernet (PoE) | via TPN output (IEEE802.3af) (can receive power) |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 48V DC, 0.83A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | 2-pole Phoenix, orange |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 137.8 D x 26 H |
| Dimensions in inch | 3.95 W x 5.43 D x 1.02 H |
| Weight | 0.476 kG |
| Video inputs | |
| TPN input | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Video Outputs | |
| HDMI output | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported. | |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
| Infrared port | |
| Output connector type | 3.5 mm TS (approx. 1/8" jack) |
| Input carrier frequency | 38 kHz |
| Output signal | modulated (38kHz) |
