Lightware DVI-OPT-TX110 Small DVI Fiber Optical Extender - 91510001

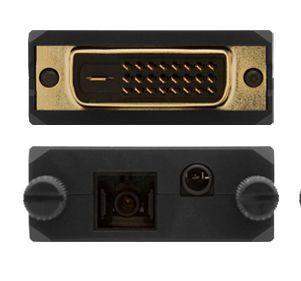

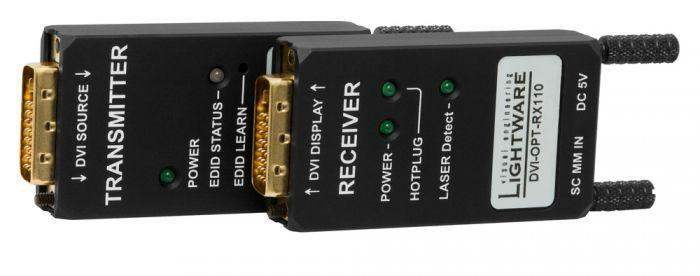

The DVI‑OPT‑RX110 is a DVI to fiber extender pair transmitting up to a range of 2500 m. The new, redesigned housing and ports of these units further enhances operation safety and security.
Highlighted features
- Extends DVI signals over one multimode fiber cable
- Single Fiber Technology
- DVI connector sized form factor
Specs
| Connectors | |
| TX input , RX output: | 24 pole DVI-D plug |
| DC Power: | 1.35/3.5 mm barrel receptacle |
| Fiber: | SC simplex |
| Specifications | |
| Data rate: | 1.65 Gbps per color |
| Max Resolution: | 1920x1200 or 2048x1080 pixels |
| Video Delay: | 0 frames |
| HDCP pass through: | no |
| EDID emulation: | yes, EDID learning by button |
| EDID memory: | 1 user programmable EDID in transmitter |
| EDID support: | 256 byte Extended EDID v1.3 |
| Front panel control: | EDID learn button |
| LED indicators: | power, source connected, signal present, laser active |
| RS-232 pass through: | no |
| Fiber: | 50/125 SC Multimode |
| Laser wavelenghts: |
4ch. CWDM: 778; 800; 825; 850 nm (high speed) |
| Laser class specification |
Class 3 |
| Transmitter output OMA*: | -6.25 dBm (worst case) |
| Receiver OMA* sensitivity: | -14.25 dBm (worst case) |
| Optical loss budget: | 8 dB (worst case) |
| Transmission distance (using Om3e type fiber): | 2500 meters |
| Power supply: | External power adaptor (100 to 240V AC, 50/60Hz)(5V DC, 1A) |
| Power consumption: | 1.4 W |
| Enclosure: | Solid Aluminum |
| Dimensions: | 39W x 87,5D x 15,4H mm |
| Net weight: | 95 gramms |
| Compliance: | CE |
| Warranty: | 3 years |
| OMA*:Optical Modulation Amplitude | |
| Maximum extension distances | ||||
| OM1 | OM2 | OM3 | OM4 | |
| (62,5/125) | (50/125) | (50/125) | (50/125) | |
| 1080p@60Hz 24 bpp | 250 m | 600 m | 1200 m | 2500 m |
