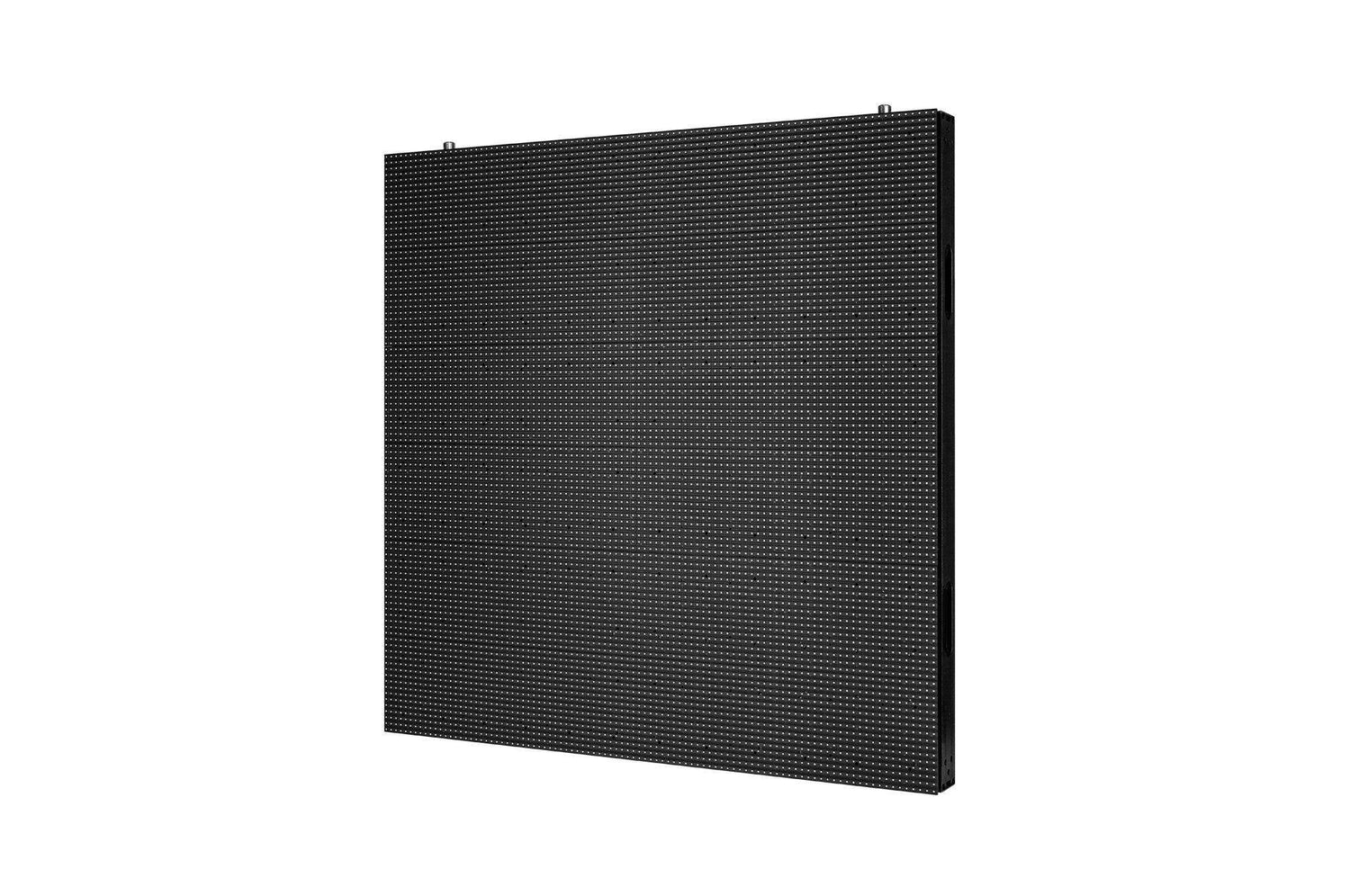

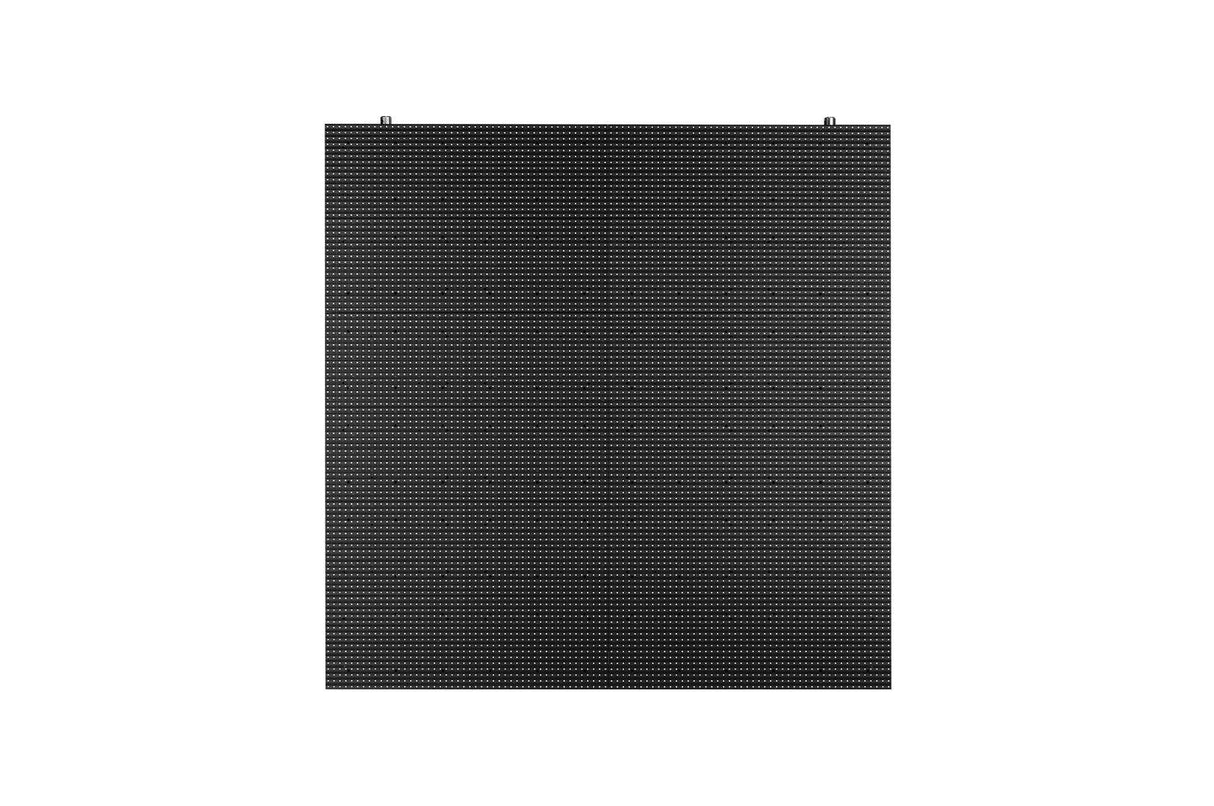

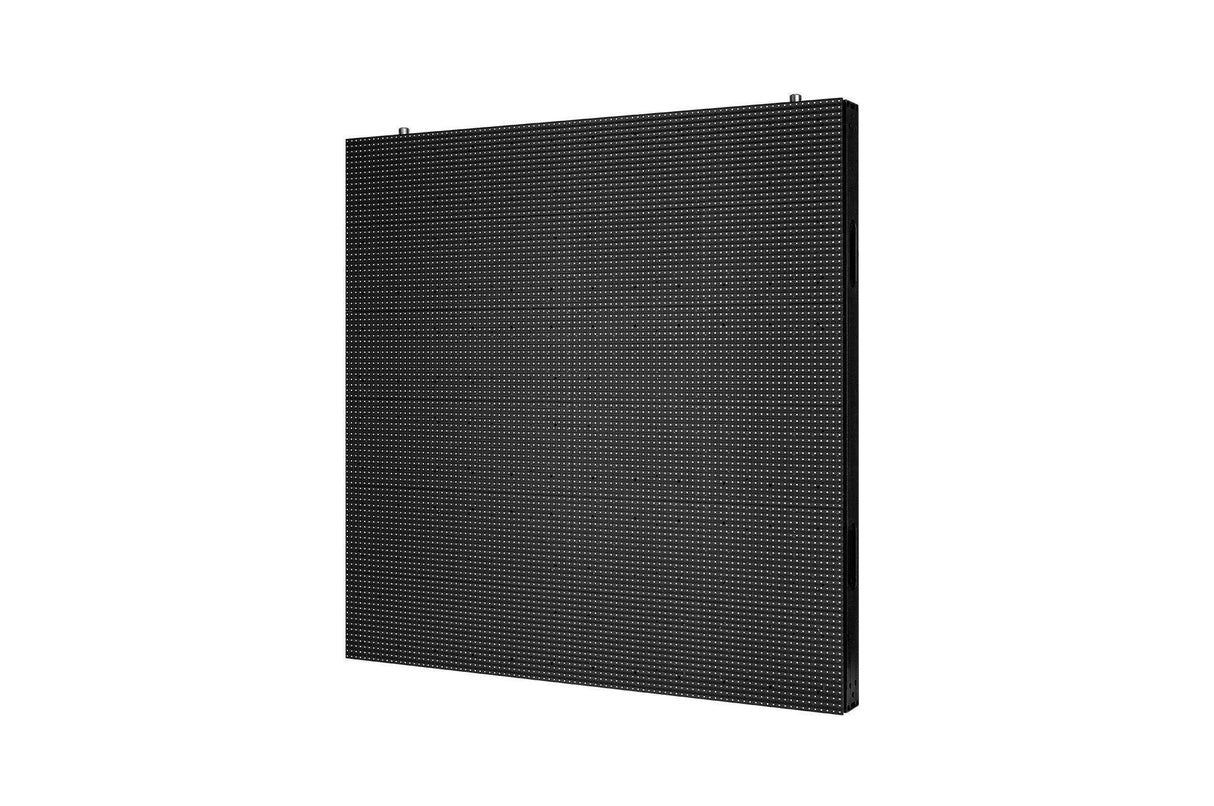

LG GSEG100-GNL 10.42mm Pixel Pitch LED Signage Display Cabinet Left Cut

LG GSEG100-GNL Digital Signage Display - LCD - 6000 Nit

Optionally, users can choose among the three models : GSEG-GN (6,000 nits), GSEG-GR (7,000 nits) and GSEG-GS (10,000 nits). It also can be optimized for screen time, region, regulations, and power consumption etc. depending on different environmental conditions.

* Brightness options are set before shipment from the factory, and cannot be changed after installation.

Easy Installation and Maintenance

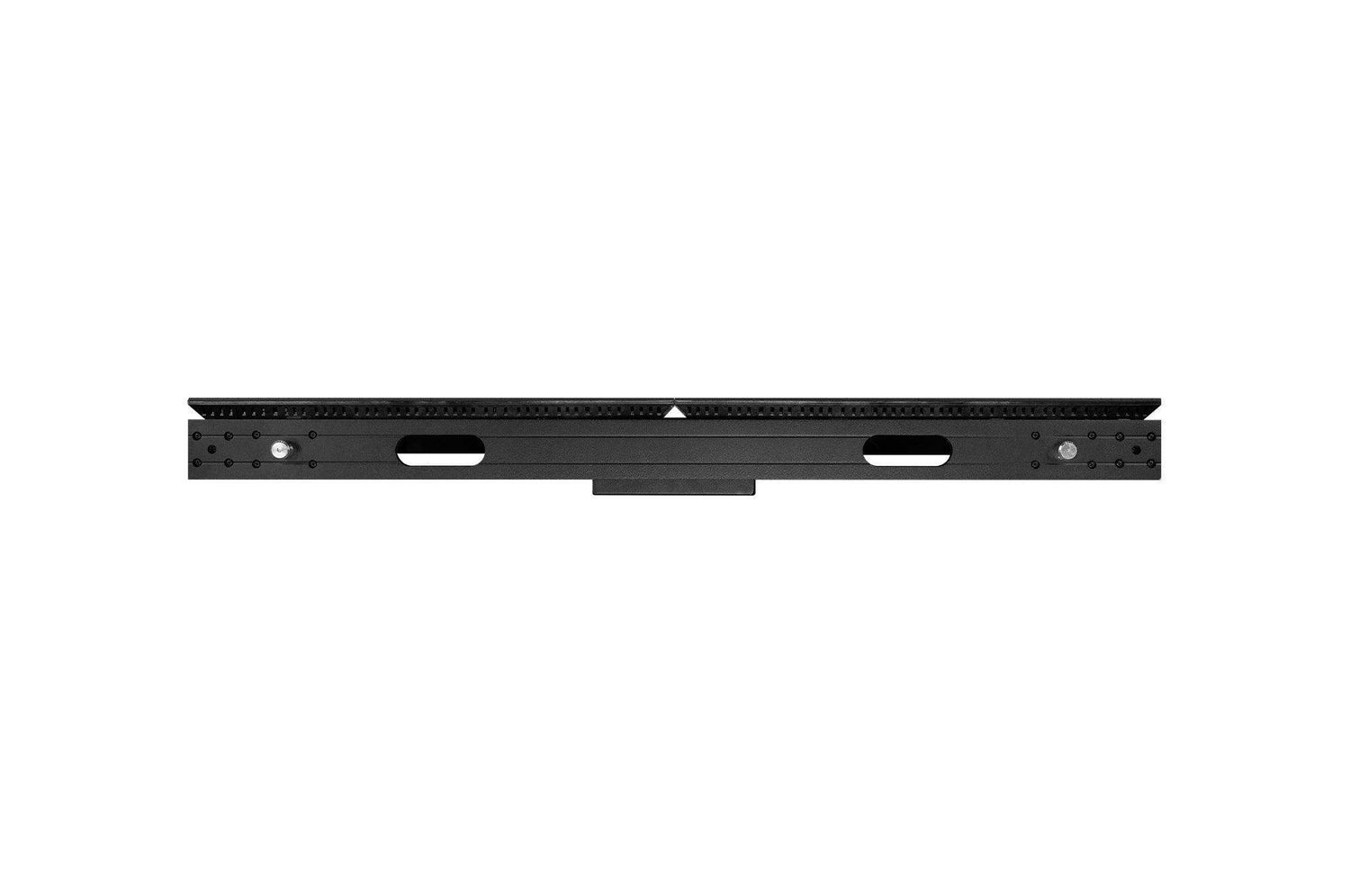

It comes with a guide pin to make easy adjustment for the upper and lower side of cabinet. With optimum cable-less design, it connects the LED module and the system part of the cabinet with no cables, allowing simple power/signal connection to be automatically completed when LED module is installed. Fully enclosed connection improves its hardware reliability as well.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GSEG series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

Features

• Pixel Pitch : 10.42 mm
• Brightness : 6,000 nit (-GN) / 7,000 nit (-GR) / 10,000 nit (-GS)

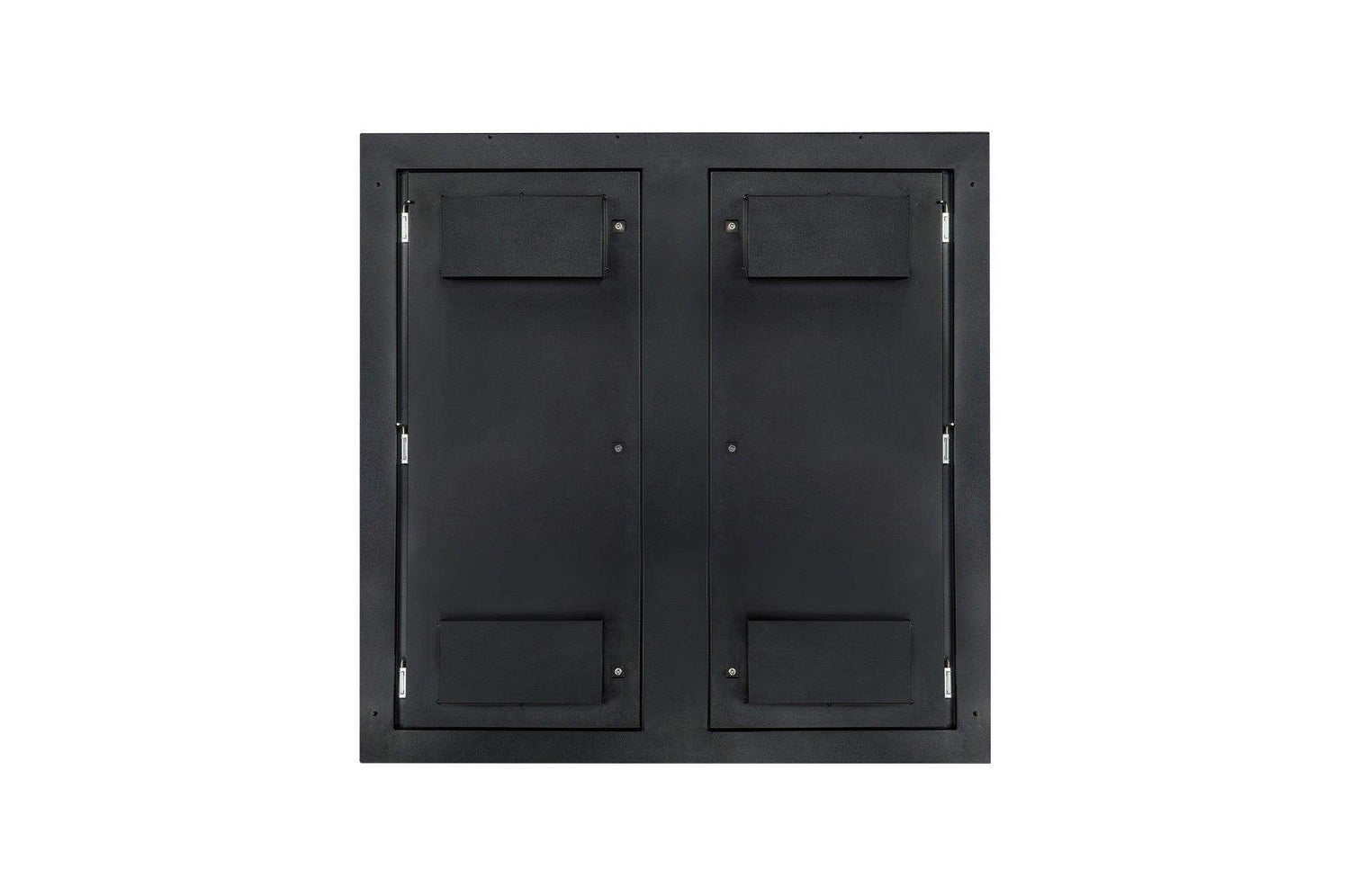

• Service Access : Front and Rear
• IP Rating : IP66
• Available for Curved Screen
• Easy Installation and Maintenance

Specs

• Physical Parameter

  Pitch Name	P10.42
  Pixel Configuration	Single SMD (-GR) Single SMD (-GN) Single SMD RS3535 (-GS)
  Pixel Pitch (mm)	10.42
  Module Resolution (W x H)	48 x 32
  Module Dimensions (W x H, mm)	500 x 333.33
  Weight per Module (kg)	2.05
  Weight per Module (g)	2 X 3
  Cabinet Resolution (W × H)	96 x 96

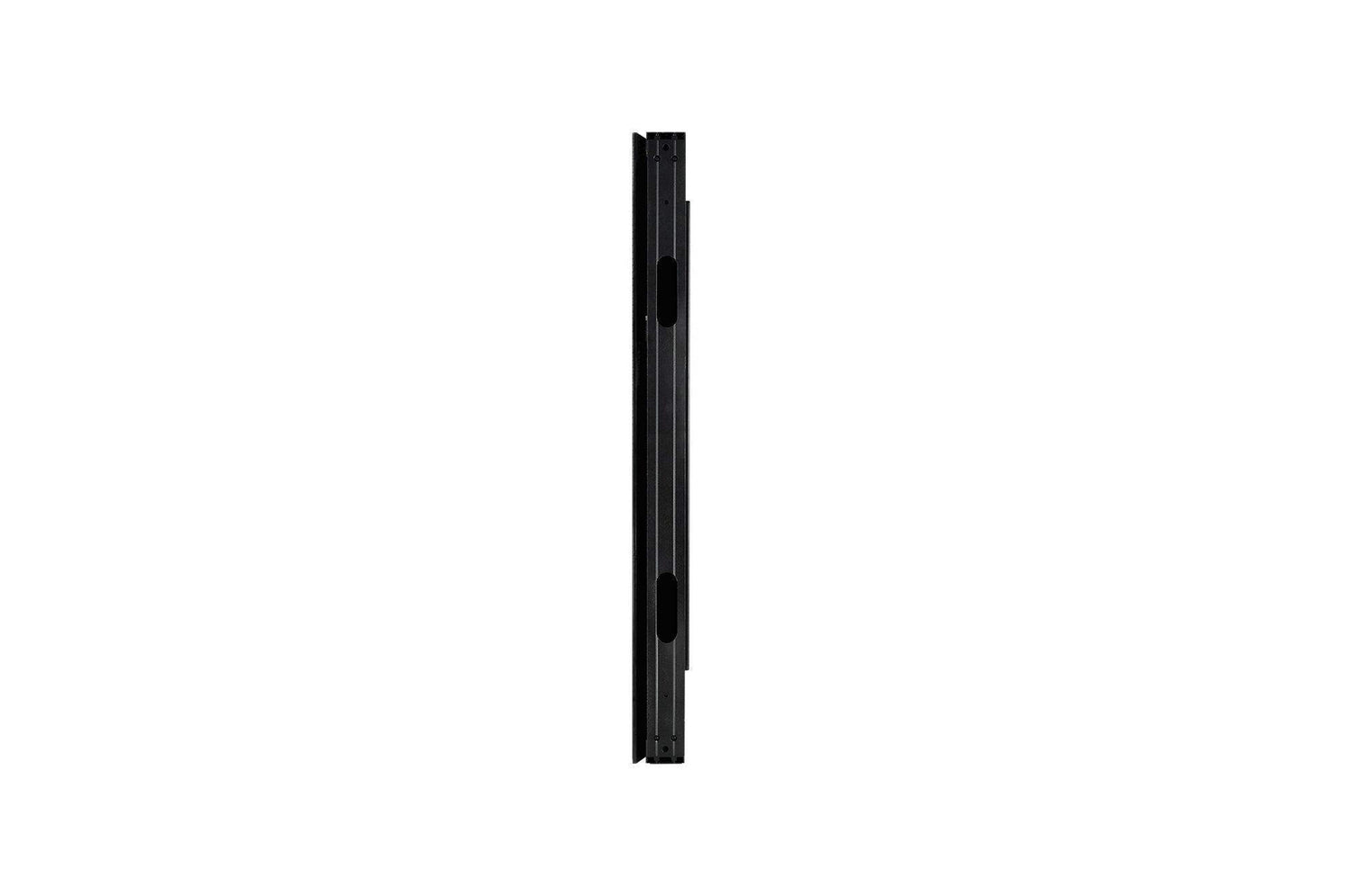

  Cabinet Dimensions (W × H × D, mm)	1,000 x 1,000 x 105
  Cabinet Surface Area (m²)	1.000
  Weight per Cabinet (kg/cabinet)	25.0
  Weight per Square Meter (kg/m²)	25.0
  Physical Pixel Density (pixels/m²)	9,216
  Flatness of Cabinet	±1.0 mm
  Cabinet Material	Aluminum
  Service Access	Front and Rear

• Optical Parameter

  Max Brightness (After Calibration, nit)	7,000 nit (-GR) 6,000 nit (-GN) 10,000 nit (-GS)
  Color Temperature (K)	3,200 ~ 9,300 (-GR) 3,200 ~ 9,300 (-GN) 3,500~8,500 (-GS)
  Visual Viewing Angle (Horizontal)	160
  Visual Viewing Angle (Vertical)	130
  Contrast Ratio	9,000:1 (-GR) 8,000:1 (-GN) 14,000:1 (-GS)
  Processing Depth (bit)	16 (HDR10, HDR10 Pro)
  Brightness Uniformity	97 %
  Color Uniformity	±0.05 Cx,Cy

• Electrical Parameter

  Power Consumption (W/Cabinet, Max.)	650 (-GR) 680 (-GN) 800 (-GS)
  Power Consumption (W/Cabinet, Avg.)	260 (-GR) 272 (-GN) 320 (-GS)
  Power Consumption (W/m², Max.)	650 (-GR) 680 (-GN) 800 (-GS)
  Heat Dissipation (BTU/h/Cabinet, Max.)	2,218 (-GR) 2,321 (-GN) 2,730 (-GS)
  Heat Dissipation (BTU/h/Cabinet, Avg.)	887 (-GR) 928 (-GN) 1,092 (-GS)
  Heat Dissipation (BTU/h/㎡, Max.)	2,218 (-GR) 2,321 (-GN) 2,730 (-GS)
  Power Supply (V)	100 to 240
  Frame Rate (Hz)	50 / 60
  Refresh Rate (Hz)	7,680

• Operation Conditions

  LED Lifetime (Half Brightness)	100,000
  Operating Temperature (°C)	-30℃ to +50℃
  Operating Humidity	0 ~ 90% RH
  IP rating Front	IP66
  IP Rating	IP66

• Certification

  	CE, FCC, ETL

• Environment

  	RoHS, REACH

• Controller

  	CVEA

• 90 Degree Corner Cut

  	O
