SMART Projection Audio System for SMART Board 600 and 800 series with a SMART projector - SBA-L
SMART Projection Audio System for SMART Board 600 and 800 series with a SMART projector - SBA-L is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
SMART Projection Audio System for SMART Board 600 and 800 series wi...

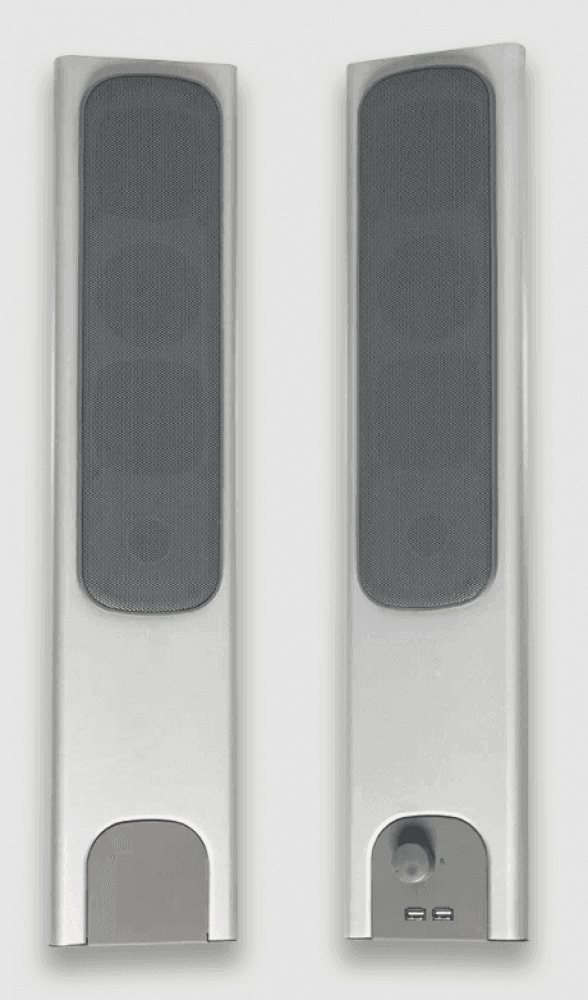

The SMARTBOARD SBA-L Projection Audio System is designed for SMARTBOARD 800ix, 800i5, 800i4, 600ix, 600i5, or 600i4 series interactive whiteboard system. The SBA-L features dual RCA receptacles connectivity on the bottom of the right (active) speaker to the projector. Both 14 W RMS output channels are driven simultaneously. The audio system provides a comfortable listening volume in rooms up to 1,000 square feet (93 square meters) in size, with a 30-person capacity (subject to room acoustics). Available in dark gray and silver color.
The projection audio system for SMARTBOARD interactive whiteboard systems is intended for front-projection systems that include an extended control panel (ECP) with volume control. You can also use the digital volume controls included with the operating system.
- Mount the speakers directly to your SMARTBOARD 800ix, 800i5, 800i4, 600ix, 600i5, or 600i4 series interactive whiteboard system
- Projection audio system
- Dual RCA connects to the projector
- Both 14 W RMS channels driven simultaneously
- Color: Dark gray and silver
Specs
| Size (one speaker) | 5 1/8" W × 24" H × 4" D (13 cm × 61 cm × 10.2 cm) |
| Weight (both speakers) | 11 lb. 14 oz. (5.4 kg) |
| With brackets added | 13 lb. 11 oz. (6.2 kg) |
| Shipping size | 12 3/4" W × 8" H × 26 1/2" D (32.4 cm × 20.3 cm × 67.3 cm) |
| Shipping weight | 18 lb. (8.2 kg) |
| Frequency range | 50 Hz to 20 kHz ± 6 dB |
| Output | 14 W RMS both channels |
| Connectivity | Dual RCA |
| Color | Dark gray and silver |
| Connection panel(right speaker) | Polarized Molex® connector and 16 AWG wire with sufficient slack to discreetly route wire behind your interactive whiteboard or along the floor. |
| Power requirements | Switching power supply (100V–240V AC, 50 Hz–60 Hz, 1.5A) and a 14' 9 1/8" (4.5 m) country-specific power cord (15V DC, 4000 mA, 60 VA, positive tip) |
| Humidity | 41°F to 95°F (5°C to 35°C) with up to 80% |
| Compatible for | SMARTBOARD 800ix, 800i5, 800i4, 600ix, 600i5 and 600i4 series interactive whiteboard systems |
| Environmental compliance | EU RoHS, China EIP, EU WEEE |
| Regulatory certification | CE, CSA/UL |
| Warranty | One-year limited equipment warranty |
