Extron DTP3 R 201 4K/60 HDMI DTP3 Receiver with Audio De-Embedding

The Extron DTP3 R 201 is a long distance, digital twisted pair receiver that works with Extron DTP3‑enabled products to extend HDMI, audio, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The receiver features stereo audio de-embedding for convenient installation in professional environments. The compact enclosure size and flexible remote power capability make the DTP3 R 201 ideal for discreet placement behind displays, within equipment racks, or wherever needed to meet application requirements.

The DTP3 R 201 enables the reliable, long distance transmission of HDMI 2.0b signals, supporting data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices.

Convenient Control and Power

For added convenience, a USB-C configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 R 201 is made simple with Extron’s PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited setup, commissioning, real-time operation and monitoring.

The DTP3 R 201 can be remotely powered over the same shielded twisted pair cable by a DTP3-enabled product. In addition, it can be configured to provide power to a connected transmitter, allowing both devices to share one power supply.

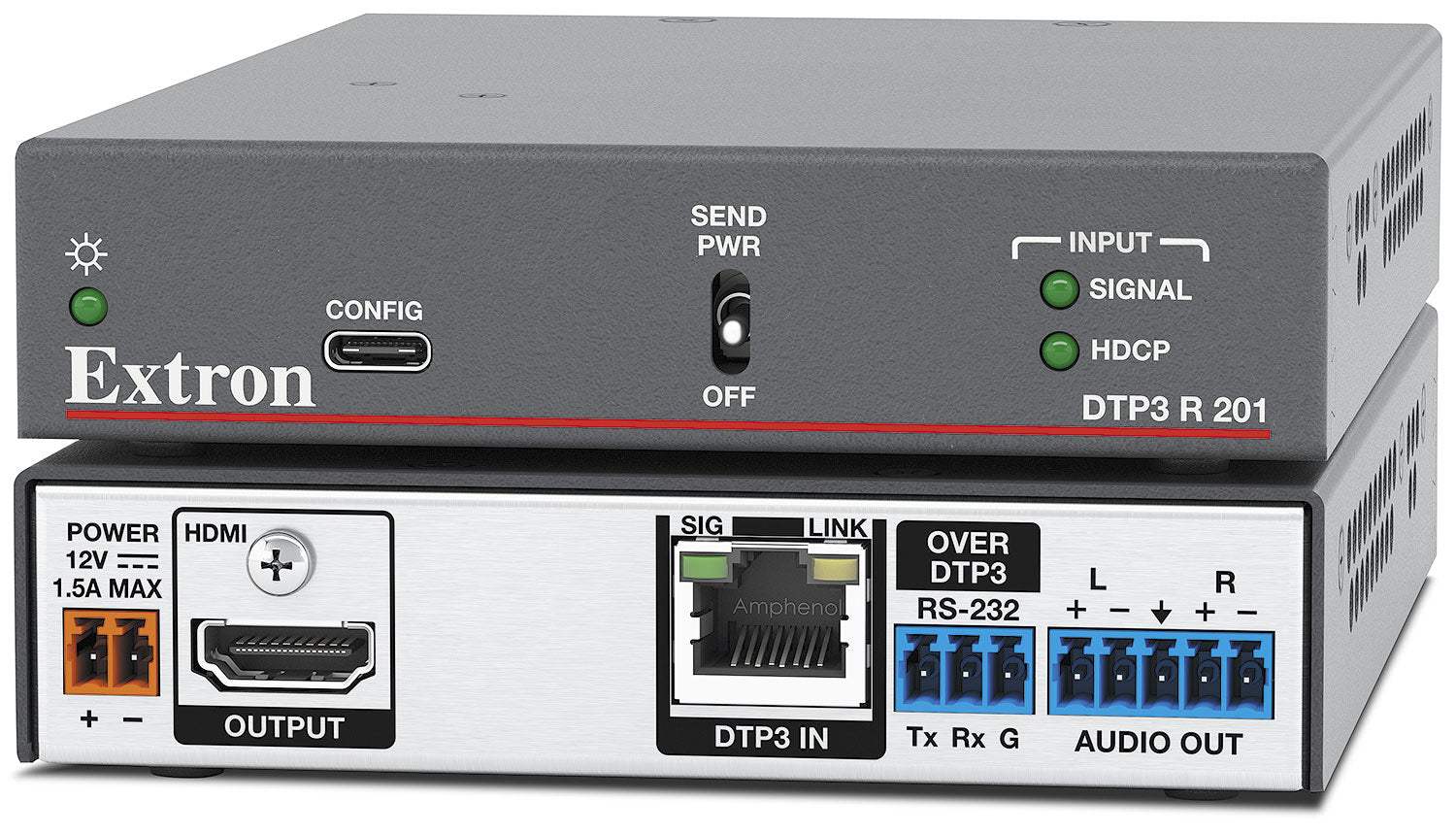

To support displays and other output devices at remote locations, the receiver can be integrated with other DTP3-enabled products. It is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low-profile design allows for discreet placement in lecterns and behind flat-panel displays.

To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.

Features

• Receives HDMI plus control up to 330' (100 m) over a shielded CAT 6A cable — The DTP3 R 201 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K — Support of 4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.
• Supports ultra-wide aspect ratios, including 21:9 and 5K
• Stereo audio de‑embedding
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, HD lossless audio formats, and CEC
• Compatible with DTP3 and DTP‑enabled products — Enables mixing and matching with desktop and wallplate transmitters, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products.
• Remote power capability with DTP3 products — For simplified installation, the receiver can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP3 transmitter.
• Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CAT 6A shielded twisted pair cable
• Bidirectional RS‑232 pass-through for AV device control — Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• Support for HDR – High Dynamic Range Video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• Supports multiple embedded audio formats — The DTP3 R 201 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• CEC insertion — A control processor can insert CEC commands at select DTP3 switchers to control devices connected at the receiver's HDMI output.

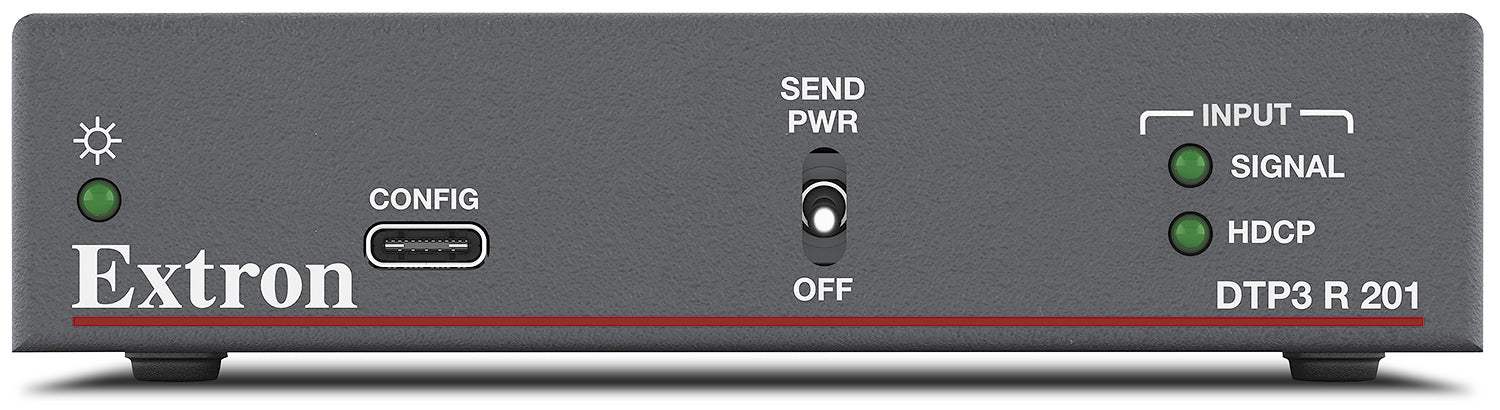

• Front panel USB‑C^® configuration port — Provides convenient access for information and firmware updates.
• LED indicators for signal presence, power, and link status — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ-45 signal and link LED indicators for DTP3 port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
• 1" (2.5 cm) high, quarter rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• Optional, external Extron Everlast™ power supply available, part # 70‑1174‑01 — Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

Specs

Also see our  Specs in PDF format

DTP3 R 201
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, 12 bits per color
Signal Type	HDMI 2.0b, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range
VESA	640x480 to 4096x2160
SMPTE	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
Ultra Wide & 5K	2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz
NOTE     *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration.
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
Color bit depth	8, 10, or 12 bits — subject to the maximum data rate limit
Formats	RGB and YCbCr digital video
HDR	HDR10, HDR10+, Dolby Vision
Standard	DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information.
Video Input
Number/signal type
DTP3	1 DTP3
Connector

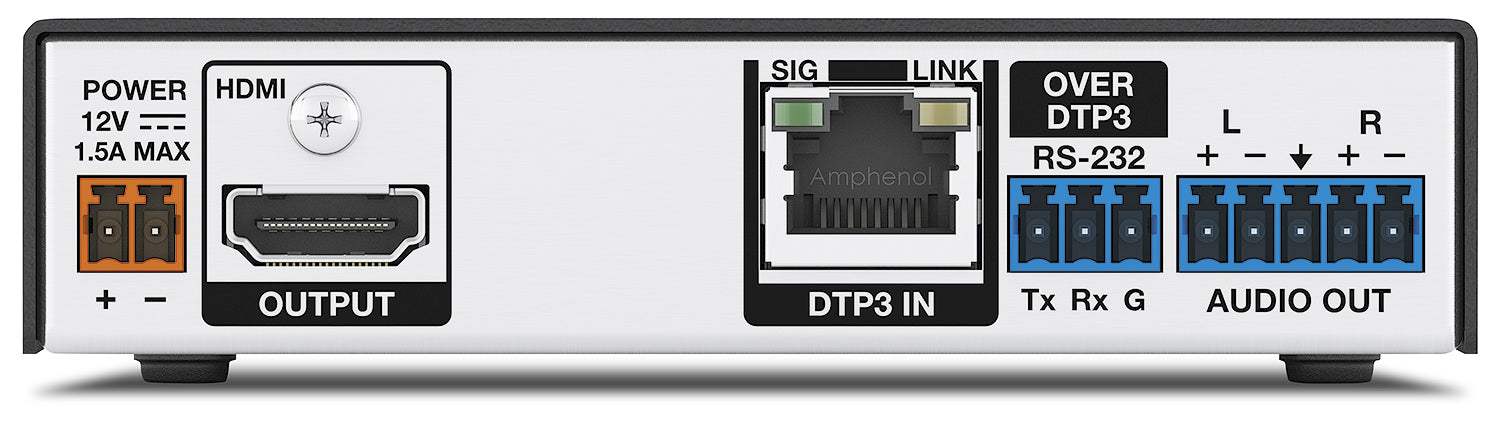

DTP3 input	1 female RJ-45
Video Output
Number/signal type	1 single link HDMI or DVI-D*
Connector	1 female HDMI
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Interconnection Between Transmitter and Receiver
Connector	1 female RJ-45 per unit
Termination standard	TIA/EIA T568B
Signal Transmission Distance (using XTP DTP 24 cable)
1080p @ 60 Hz	Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable
4K/UHD@ 60 Hz (1)	Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3') Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
4K/UHD@ 60 Hz (2)	Up to 175' (53 m) using shielded twisted pair STP or XTP DTP 24 cable w/ no couplers
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair)
Signal Transmission Distance (using XTP DTP 22 cable)
1080p @ 60 Hz	Up to 330' (100 m) using  XTP DTP 22 cable
4K/UHD @ 30 Hz	Up to 330' (100 m) using  XTP DTP 22 cable
4K/UHD@ 60 Hz (1), (2)	Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4') Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables
Cable requirements	Solid conductor, 22 AWG or better
Cable recommendations	500 MHz bandwidth, STP (shielded twisted pair)
NOTE     Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance. (1) With coupler(s), (2) No couplers
Communications
Control/Remote — Transmitter
USB control port	1 front panel, female USB type C
USB standards	USB 2.0, low speed
Program control	Extron Simple Instruction Set (SISTM) Extron Product Configuration Software (PCS)
Control/Remote — External Device (pass-through, unidirectional or bidirectional)
Serial control pass-through ports	1 RS-232 3.5 mm 3-pole captive screw connector
Baud rate	300 to 115200 baud
Protocol	8 or 7 data bits 1 or 2 stop bits No parity (default), even or odd parity
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = Gnd
NOTE     Protocol is mirrored between the connected DTP3 Rx endpoints and the "Over TP". Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP3 endpoints for control of remote sink or source devices. The "Over TP" port are simply pass-through connections to DTP endpoints. There is no RS-232 insertion from any DTP3 control port to the "Over TP" ports.
General
Power supply	External (included with Tx) Input: 100 to 240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	7.37 watts
Device and power supply	8.62 watts
Remote power budget	18.0 watts
NOTE     The receiver can be powered either locally by an external power supply or remotely by a transmitter on the other end of the twisted pair cable.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on top and sides
Thermal dissipation
Device	24.20 BTU/hr
Device and power supply	28.48 BTU/hr
Mounting
Rack mount	Optional 1U high rack shelf
Furniture mount	Optional under-desk mount kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 6.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 15.2 cm D) (Depth excludes connectors.)
Product weight	0.6 lbs (0.27 kg)
Regulatory compliance	CE, C-tick, C-UL, UL, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%. Specifications are subject to change without notice.
(6354-D9)
