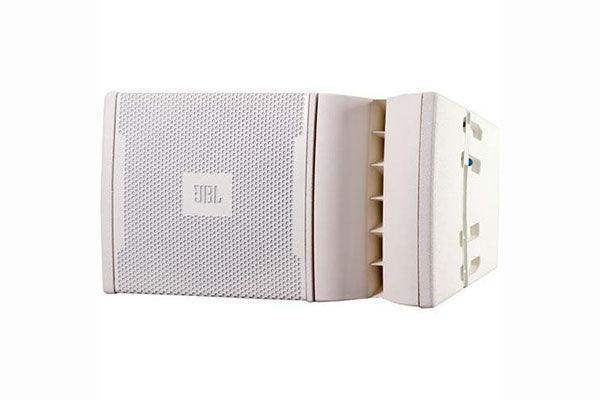

JBL VRX932LA-1WH 12" Passive 2-Way Line Array Speaker Bi-Ampable (White)
JBL VRX932LA-1WH 12" Passive 2-Way Line Array Speaker Bi-Ampable (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
JBL VRX932LA-1WH 12" Passive 2-Way Line Array Speaker Bi-Ampab...
The JBL VRX-932LA-1 (White) is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units.
The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line-array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed.
The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area.
| Configuration | Passive 2-Way |
| Total Power Capacity | Passive: 800 W RMS 1600 W Program 3200 W Peak LF: 800 W RMS 1600 W Program 3200 W Peak HF: 75 W RMS 150 W Program 300 W Peak |
| HF Driver | 3 x Compression Driver |
| HF Voice Coil | 1.5" / 3.81 cm |
| LF Driver | 1 x 12" / 305 mm Woofer |
| LF Voice Coil | Dual |
| Magnet | HF: Neodymium LF: Neodymium |
| Frequency Response | 75 Hz to 20 kHz ±3 dB |
| Maximum SPL | 130 dB (Passive) 130 dB (LF, Bi-Amp) 139 dB (HF, Bi-Amp) |
| Coverage Angle | 100° H x 15° V |
| Speaker Sensitivity | Passive: 95 dB SPL Bi-Amp/LF: 95 dB Bi-Amp/HF: 114 dB |
| Audio I/O | 2 x speakON NL4 |
| Crossover | 1.2 kHz |
| Mounting |
2 x 1.42" / 36 mm Pole Socket (Dual Angle, Bottom) 2 x M10 Fly Point Fly Point |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 23.5 x 13.8 x 15" / 597 x 349 x 381 mm |
| Weight | 46 lb / 21 kg |
