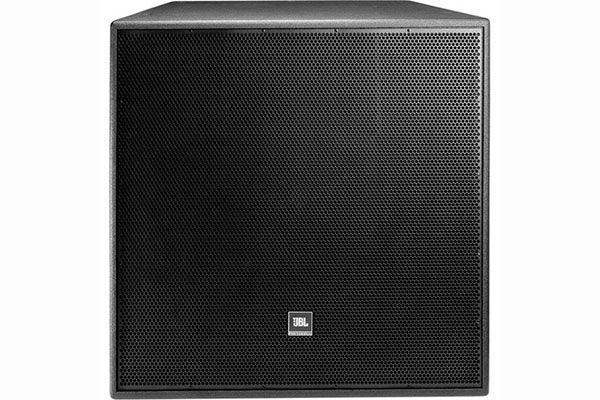

PD595 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
Key Features
- Horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 90° x 50° pattern control, low distortion at high SPL levels
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
General
| Product Type | Speaker - for stage |
| Enclosure Color | Black |
| Enclosure Material | Birch plywood |
| Design Features | DuraFlex finish, trapezoidal design |
Speaker System
| Speaker Type | 2-way - passive |
| Nominal Output Power | 300 Watt |
| Max (RMS) Output Power | 500 Watt |
| Frequency Response | 50 - 20000 Hz |
| -3dB Frequency Response | 90 - 16000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 139 dB |
| Sensitivity | 104 dB |
| Crossover Frequency | 1300Hz |
| Coverage | 90° x 50° |
| Detachable Grilles | Yes |
Speaker System Details
| Speakers Included | 1 x speaker - 2-way - 300 Watt - 50 - 20000 Hz - 8 Ohm - wired |
| Driver Details | Speaker: woofer driver - 15" - Horn Speaker: tweeter driver - 1.5" - Horn Loaded Compression Driver (HLCD) |
Miscellaneous
| Compliant Standards | MIL-STD-810, IPX3 |
Dimensions & Weight
| Width | 30.8 in |
| Depth | 26.4 in |
| Height | 30.8 in |
| Weight | 152.12 lbs |
