Blaze Audio PowerZone Connect 504 - 500 W DSP-enabled Class-D amplifier with 4 channels - UBX-888-011
Blaze Audio PowerZone Connect 504 - 500 W DSP-enabled Class-D amplifier with 4 channels - UBX-888-011 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blaze Audio PowerZone Connect 504 - 500 W DSP-enabled Class-D ampli...

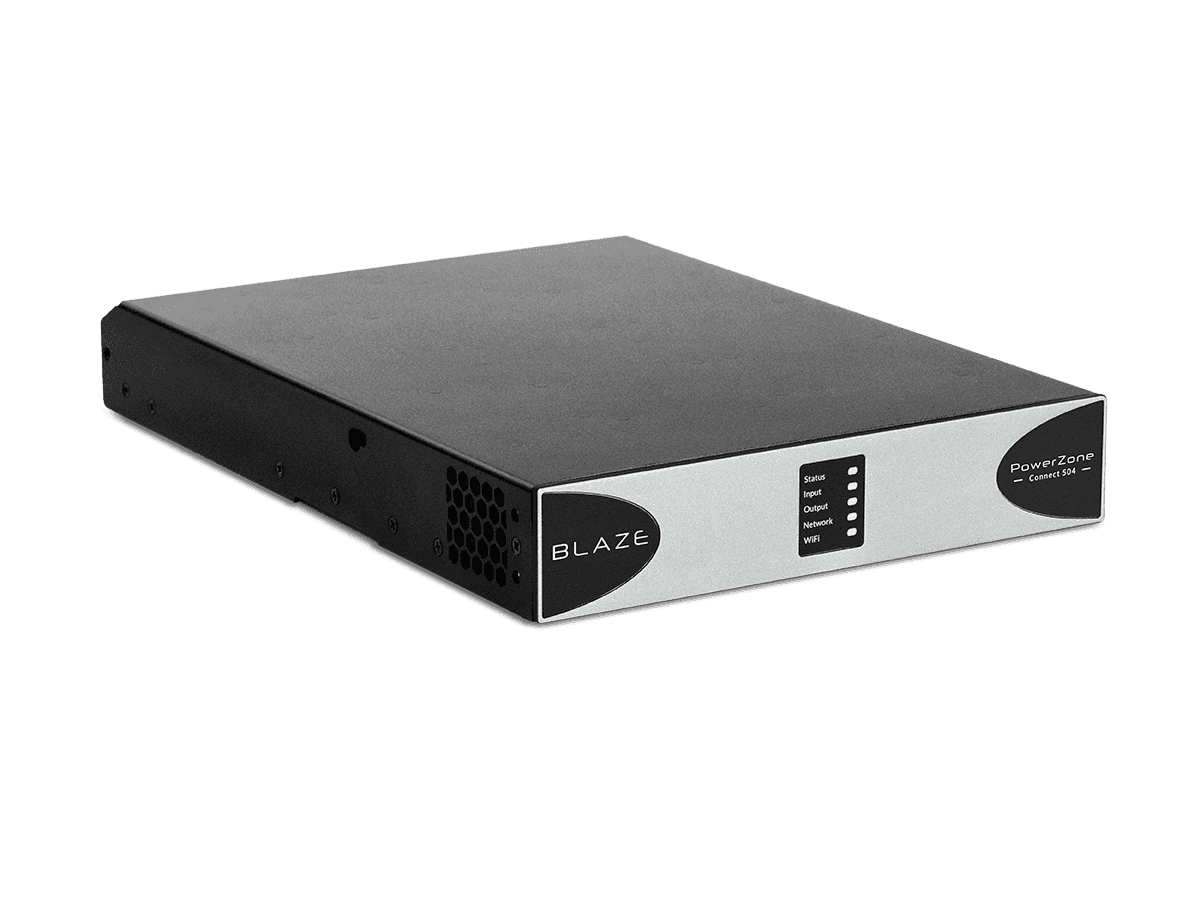

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations. Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
Features
- Ultra-compact ½-rack form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- Flexible power sharing across output channels

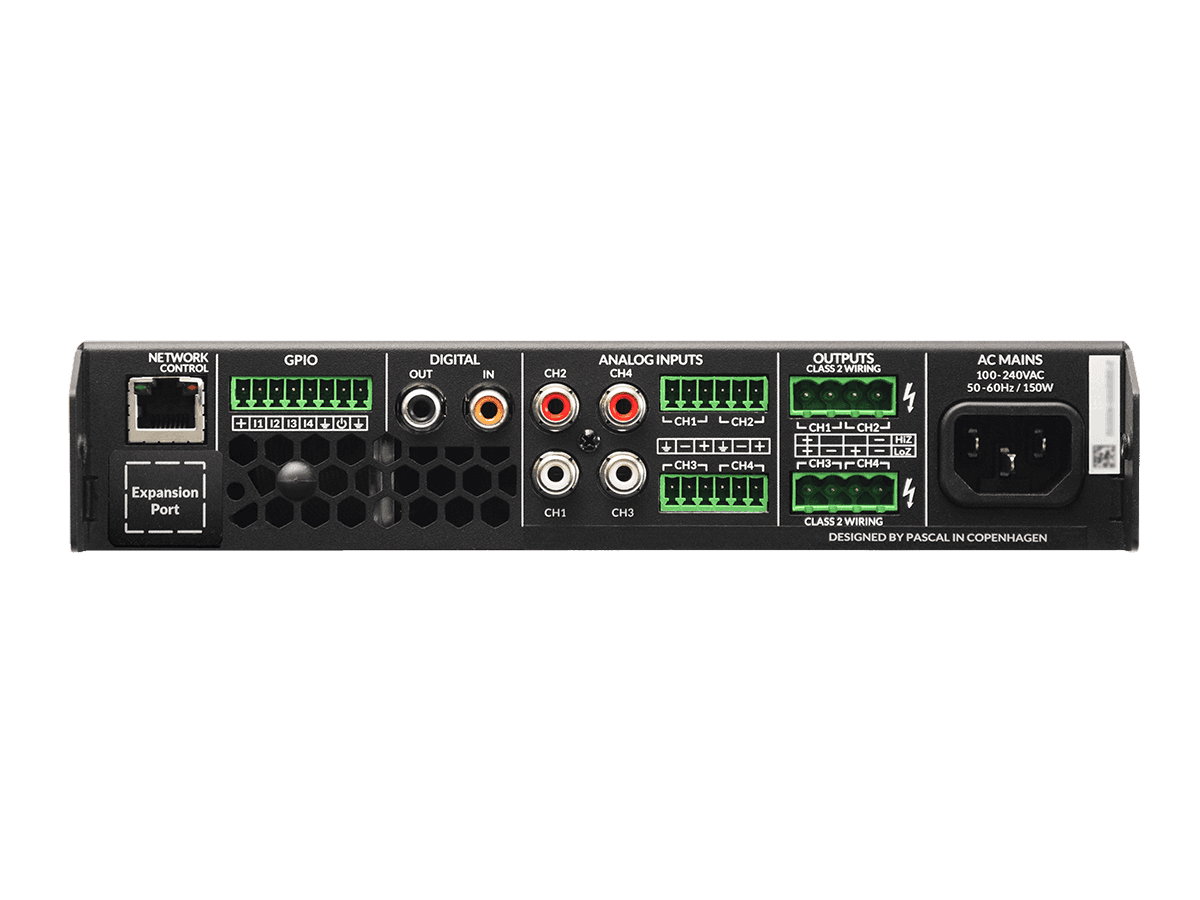

- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC 5 Year warranty
Specs
| Output Power @ 4/8Ω | 4 x 125 W |
| Output Power @ 70/100V* | 2 x 250 W |
| Total System Power | 500 W |
| Power Consumption | 150 W |
| Dimensions | 44 x 220 x 319 mm 1.7 x 8.7 x 12.6 in |
| Weight | 2.8kg | 6.2 lbs |
